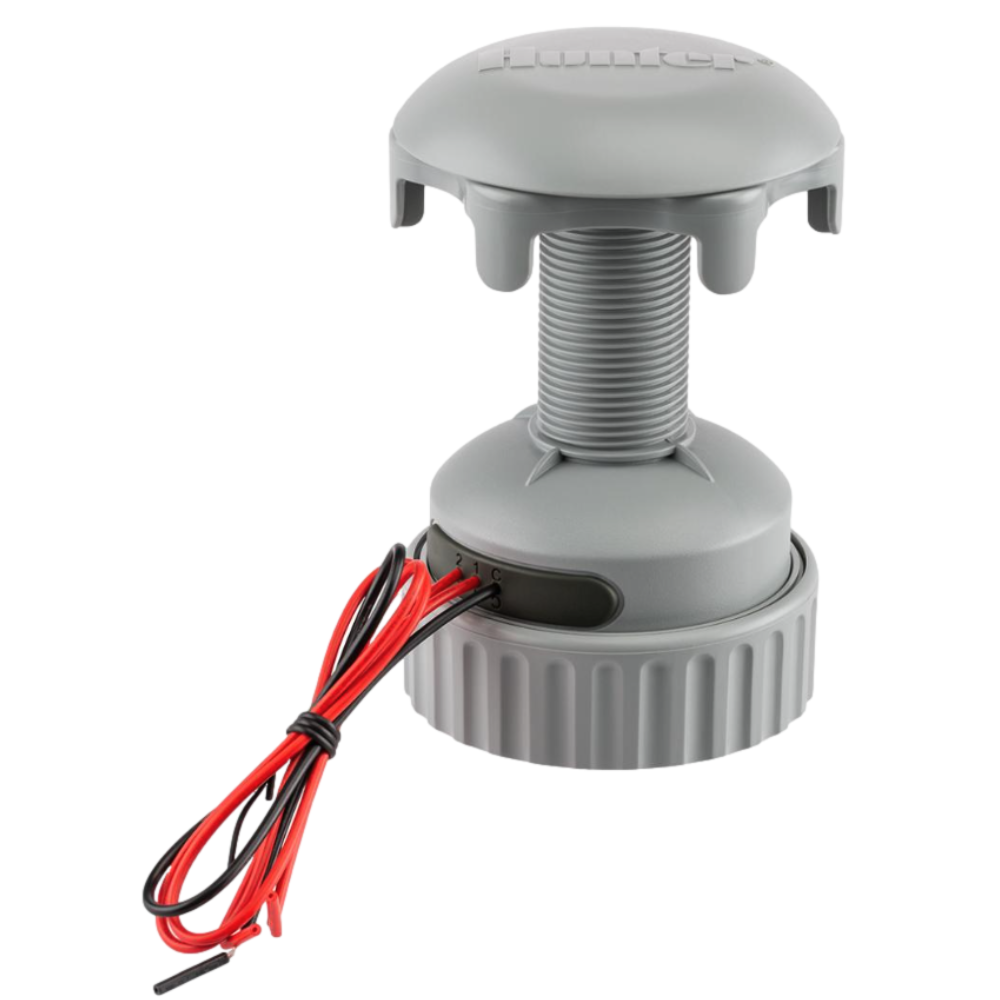

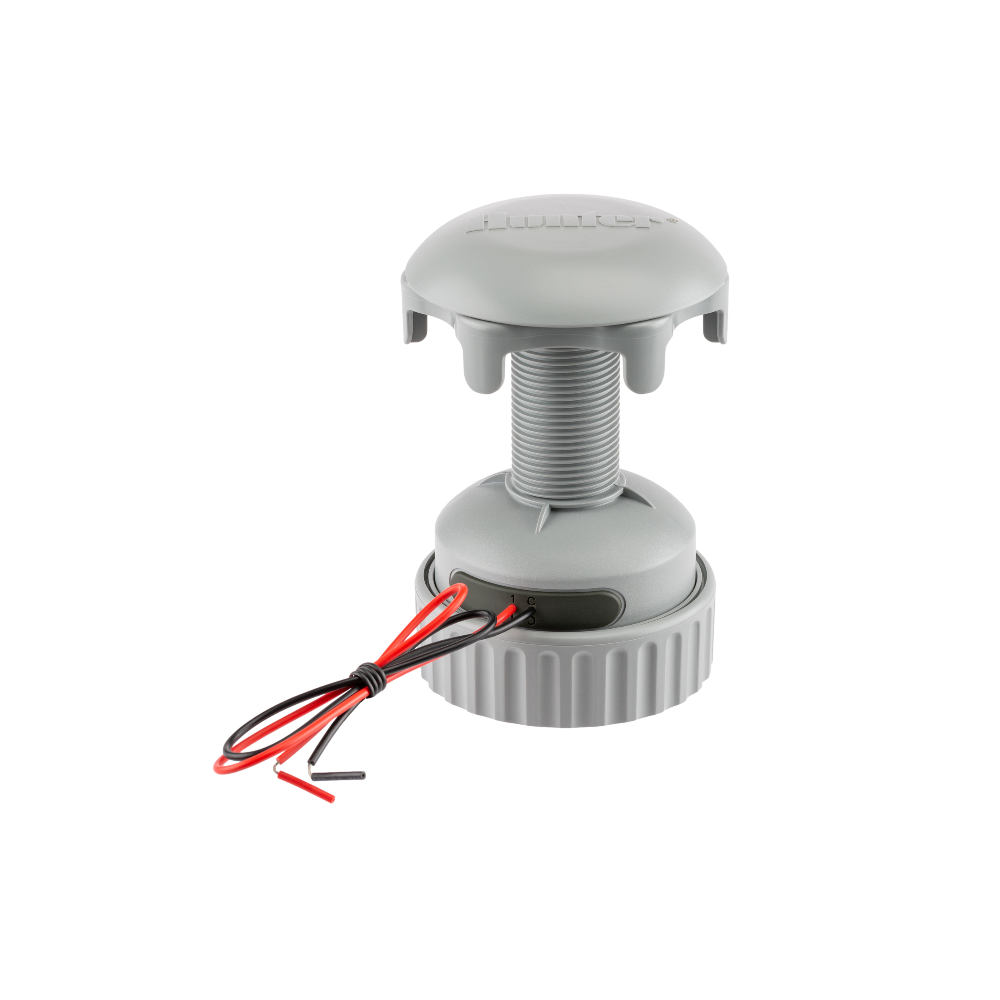

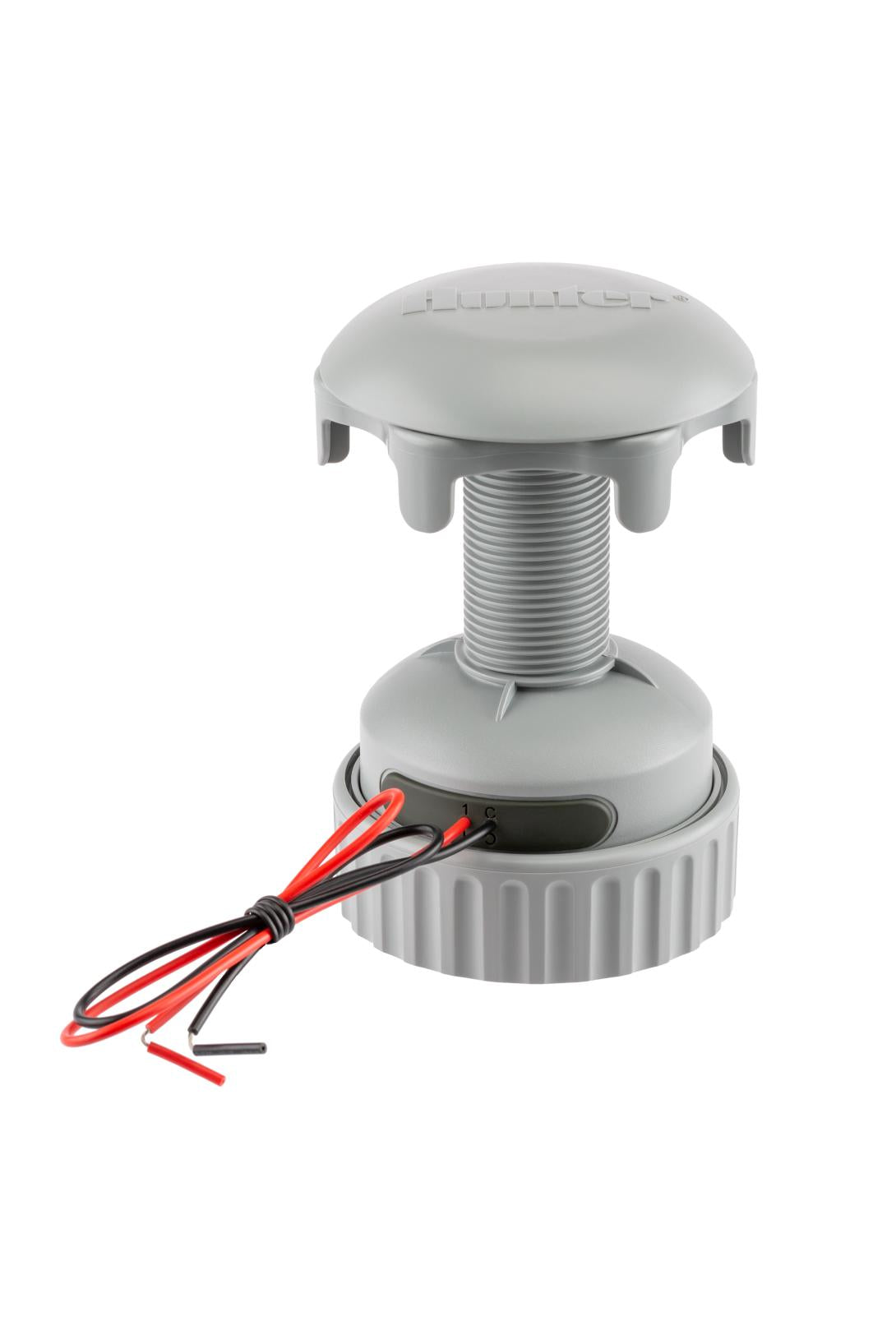

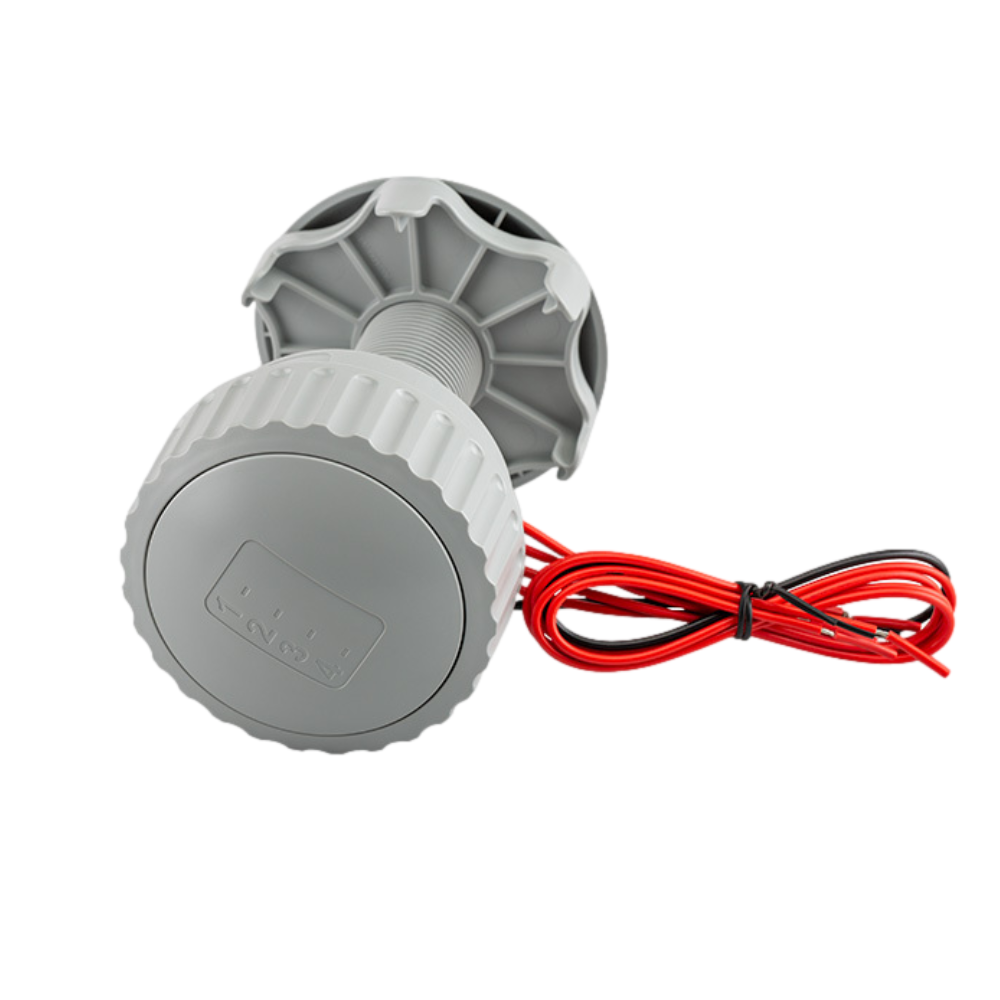

Hunter WVL-100 Wireless Valve Link 1-Station

Product Description

The HUNTER WVL-100 Wireless Valve Link enables wire-free valve control and monitoring for ICC2 or HCC control systems. It allows adding valves up to 2,000' without new wiring, crossing concrete and asphalt wirelessly. Simplifies installation by eliminating costly field wires. Includes an antenna for reliable signal strength.

• Low-profile, waterproof valve box lid mount for field durability
• Two-way communications confirm field performance
• Built-in site survey and manual test functions

Product Highlights

The Wireless Valve Link simplifies installation for landscapes of all sizes by eliminating the need to run costly field wires or cut into hardscapes.

Product Information

Standard Information

• Brand: HUNTER
• Manufacturer Part Number: WVL-100
• Country of Origin: China

Technical Specifications

• LoRa radio: 900 MHz for North America
• Operates: Hunter DC-Latching Solenoids
• Maximum distance from WVL to solenoid: 100' with 18 AWG wire
• Batteries: One or two 9 VDC batteries per WVL
• Setup: Easy, free setup with iOS 9.0 or above, Android 5.0 or above , and Bluetooth apps
• Voltage: 9 Volts (DC)
• Material: Plastic
• Includes: Antenna
• Type: Single-Station Wireless
• Item: Valve Link
• Regulated: No
• Brand Name: Hunter
