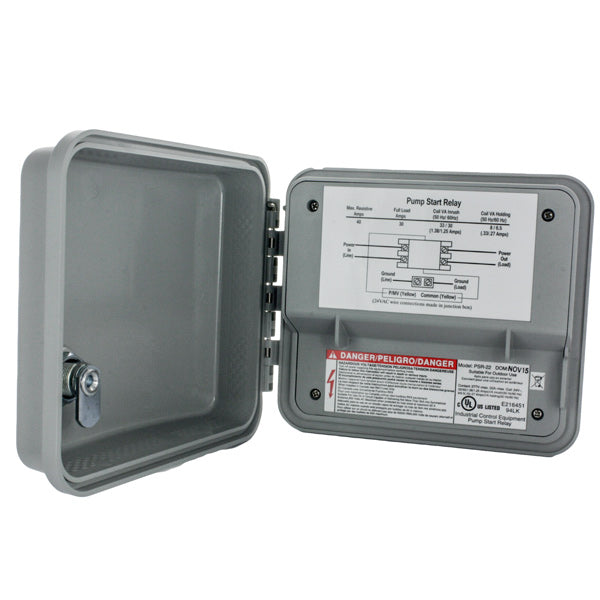

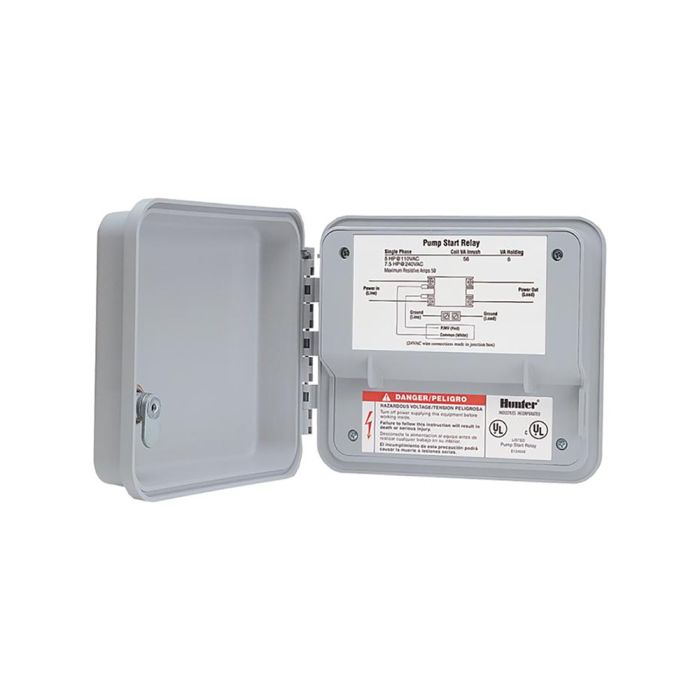

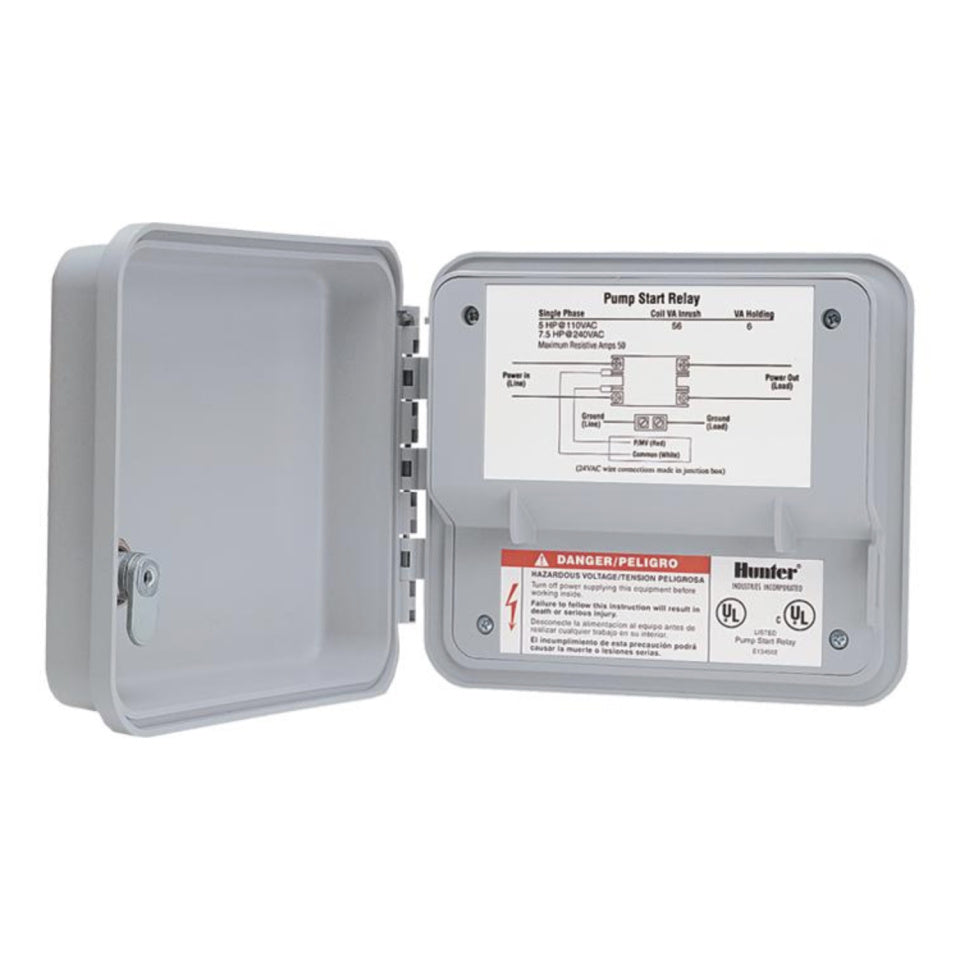

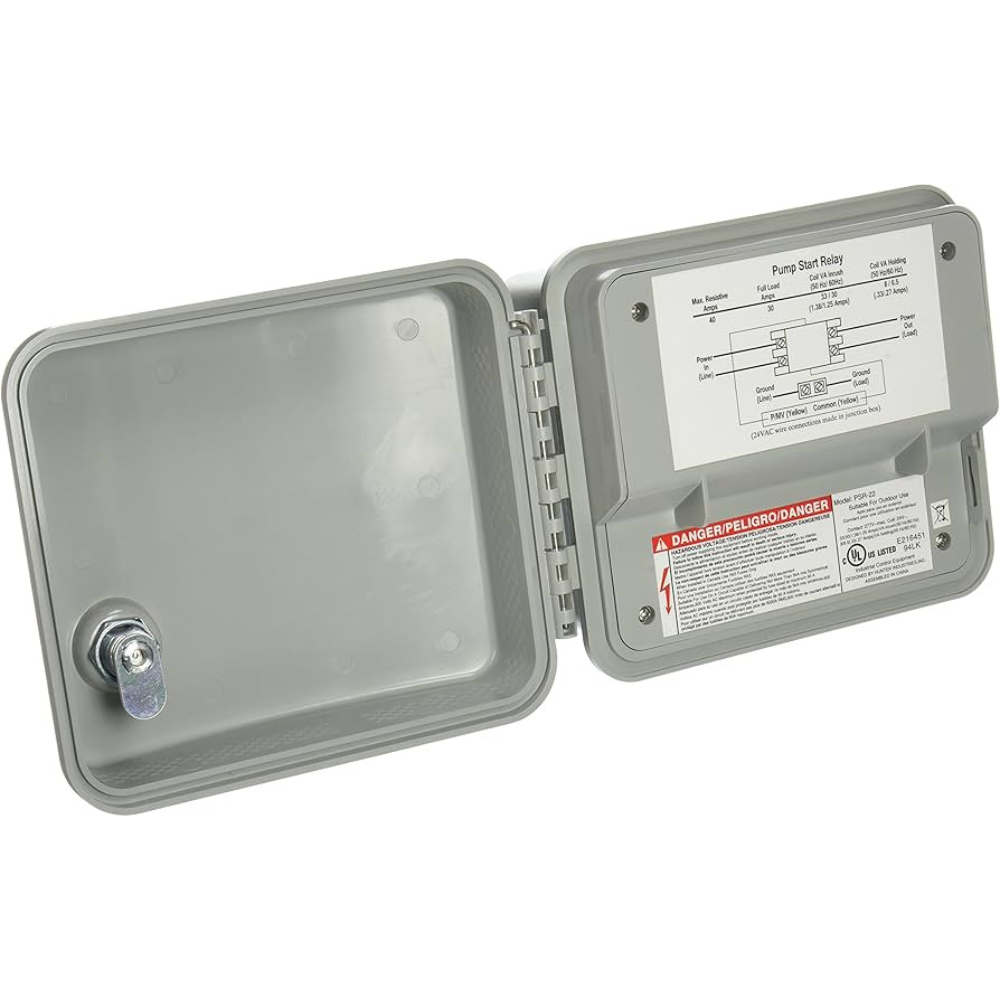

Hunter PSR22 Pump Start Relay 2 HP/3 HP

Product Description

The HUNTER PSR22 Pump Start Relay is designed for dependable, automatic pump control in irrigation systems. It is compatible with all standard 24VAC controllers. Features include effortless 24V connections and a wide array of knockouts for easy wiring. The PSR-22 is a double-pole/single-throw relay for 120 VAC pumps up to 2 hp, or 230 VAC pumps up to 3 hp.

• NEMA 3R rated locking plastic enclosure for outdoor use, weather resistance and security
• 24 VAC flying leads make connection to the controller quick and easy.
• Suitable for conventional wiring or two-wire decoder activation, allows flexible installation options

Product Highlights

The Hunter PSR-22 offers reliability and user-friendliness at an economical price. It is enclosed in a NEMA rated lockable case that can withstand harsh environmental conditions.

Product Information

Standard Information

• Brand: HUNTER
• Manufacturer Part Number: PSR22

Technical Specifications

• Controller Power: AC
• Primary AC power input: 120/230 VAC
• Secondary AC power output: 24 VAC, 1.6 A
• Relay rating: Double-pole, double-throw solid state (10 A)
• Approvals: IP44 (outdoor), UL, cUL, FCC, CE, RCM, ISED
• HP at 120 VAC: 2*
• HP at 230 VAC: 3*
• Max Full Load Amps: 30
• Max Resistive Amps: 40
• Coil VA Inrush (amps): 30 (1.25)
• Coil VA Holding (amps): 6.5 (0.27)
• Dimensions: 7.5" H x 6.5" W x 4.5" D
• Models: PSR-22
• Single Phase 120V: HP=2
• Single Phase 230V: HP=3
• Coil VA Inrush: 31
• Coil VA Holding: 7
• Connector Type: Wire
• Contact Material: Silver Alloy
• Contact Type: Normally Open
• Mounting Type: DIN Rail Mount
• Operation Mode: Automatic
• Wattage: 2.2 KW
• Coil Voltage: 24 Volts
• Maximum Switching Voltage: 24 Volts
• Minimum Switching Voltage: 24 Volts
• Number of Terminals: 2
• Model: PSR-22
• Dimensions (inches): 6.5" H x 7.5" W x 4.5" D
