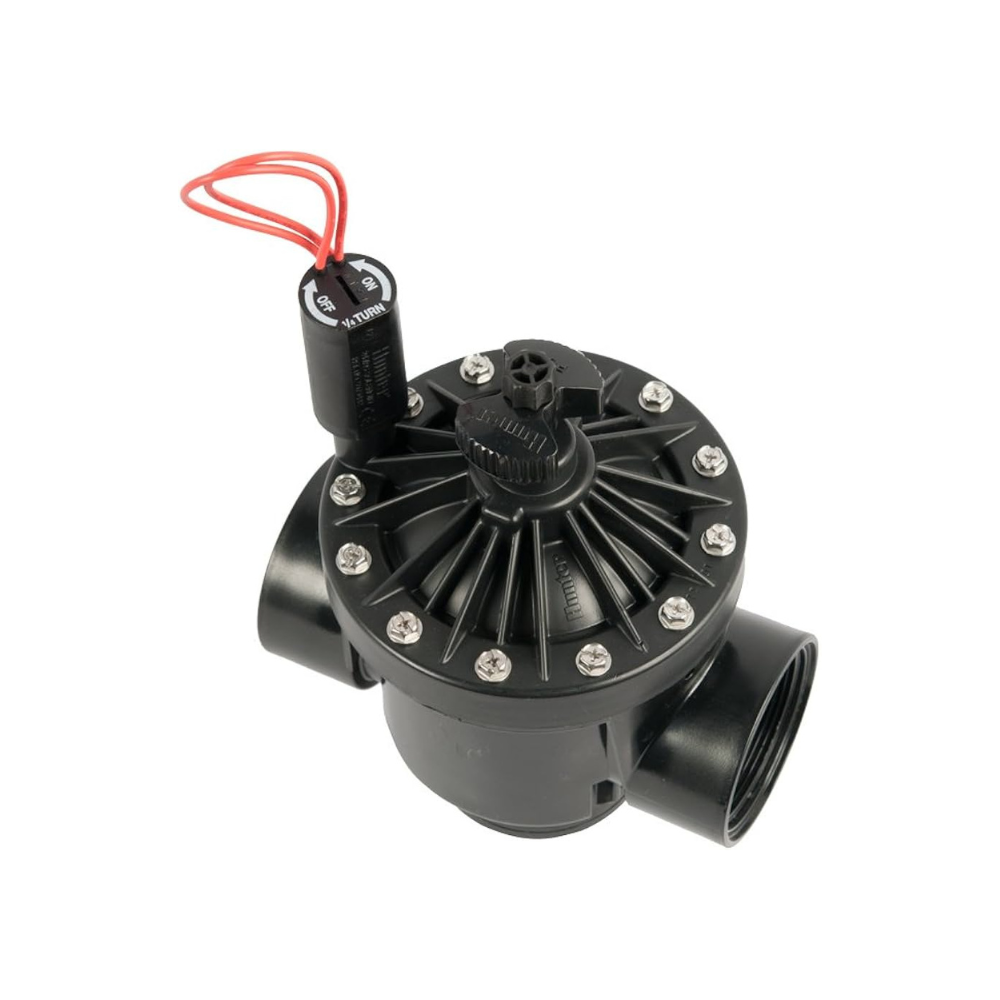

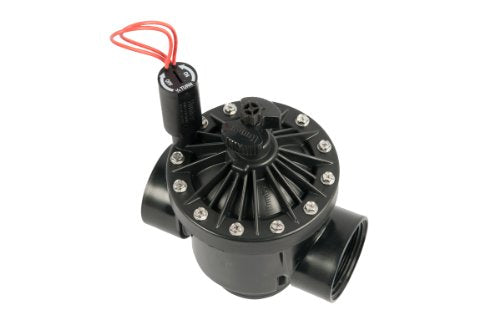

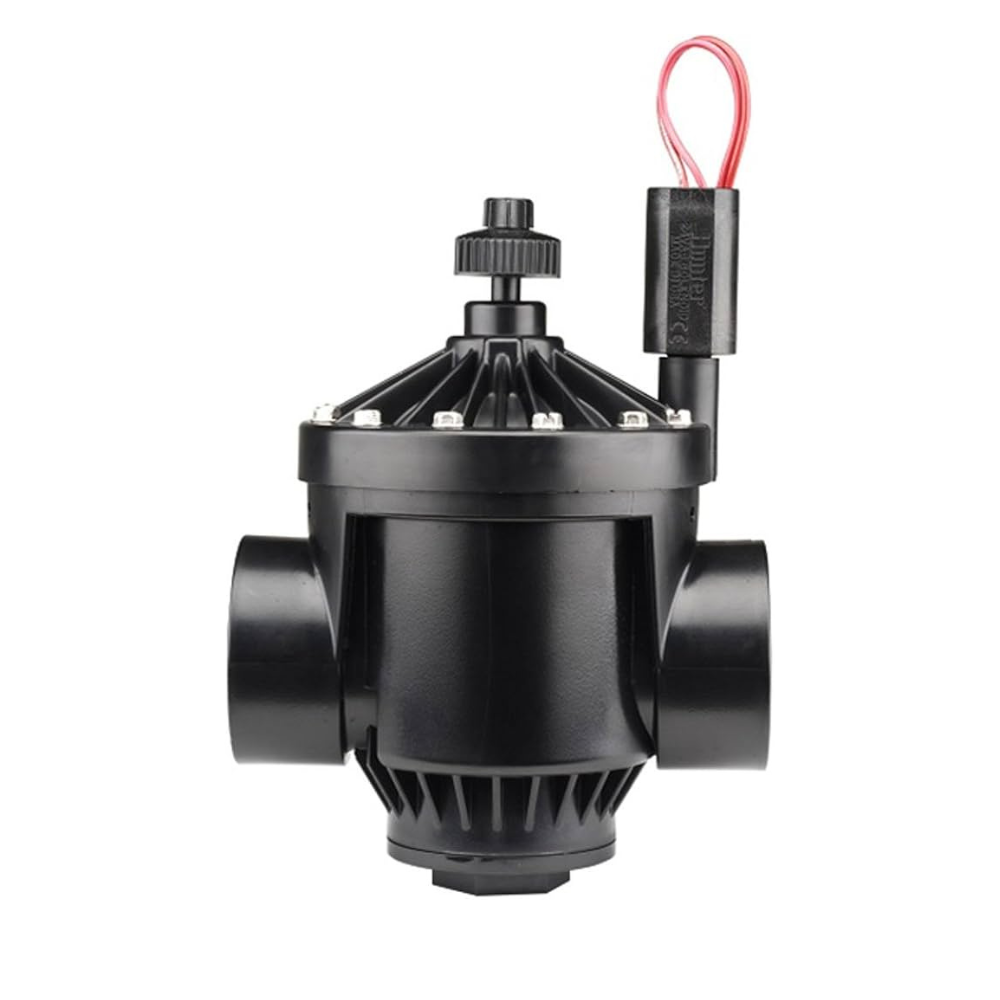

Hunter PGV201 PGV-201 2 inch Globe Valve w/FC (NPT) TxT

Product Description

The HUNTER PGV201 2 inch Globe Valve w/FC (NPT) TxT combines professional-grade construction with adjustable flow control for zone balancing. Designed for high-flow systems, it operates between 20–150 GPM with a pressure range of 20–150 PSI. Features a high-grade plastic body and a screw-top bonnet for easy servicing.

• 2" (50 mm) body with female NPT inlet and outlet for standard plumbing and irrigation connections.
• Built-in flow control lets you fine-tune water delivery for each zone without additional regulators.
• Designed for high-flow systems — 20–150 GPM with a recommended pressure range of 20–150 PSI.

Product Highlights

The PGV-201 valve is engineered to reduce downtime and simplify maintenance on larger irrigation zones. It has a rugged diaphragm and support to resist stress failure in outdoor conditions.

Product Information

Standard Information

• Brand: HUNTER
• Manufacturer Part Number: PGV201

Technical Specifications

• Brand: Hunter
• MPN: PGV201
• Product Type: VALVE
• Product Group: Lawn & Patio
• Inlet Size: 2"
• Material: Plastic
• Flow rate: 20 to 150 GPM
• Recommended pressure range: 20 to 150 PSI
• Temperature rating: 150° F
• Warranty period: 2 years
• 24 VAC solenoid: 370 mA inrush, 210 mA holding, 50 HZ
• Flow: .2 to 120 GPM (0.04 to 27.2 m3/hr; 0.7 to 454.2 l/min)
• Heavy-duty solenoid: 24VAC; 370mA inrush current; 190mA holding current; 60 cycles; 475mA inrush current; 230mA holding current; 50 cycles
• Item dimensions L x W x H: 5 x 7 x 10 inches
• Maximum Pressure: 150 Pound per Square Inch
• Maximum Flow Rate: 150 Gallons Per Minute
• Valve Control: Solenoid
• Type: Flow Control Valve
