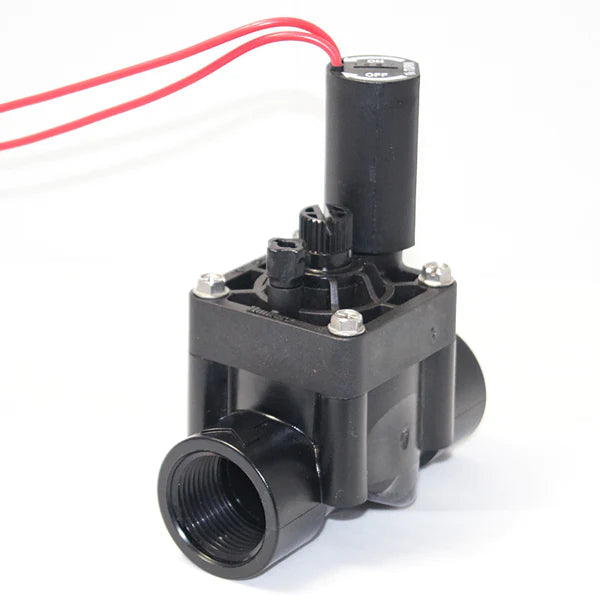

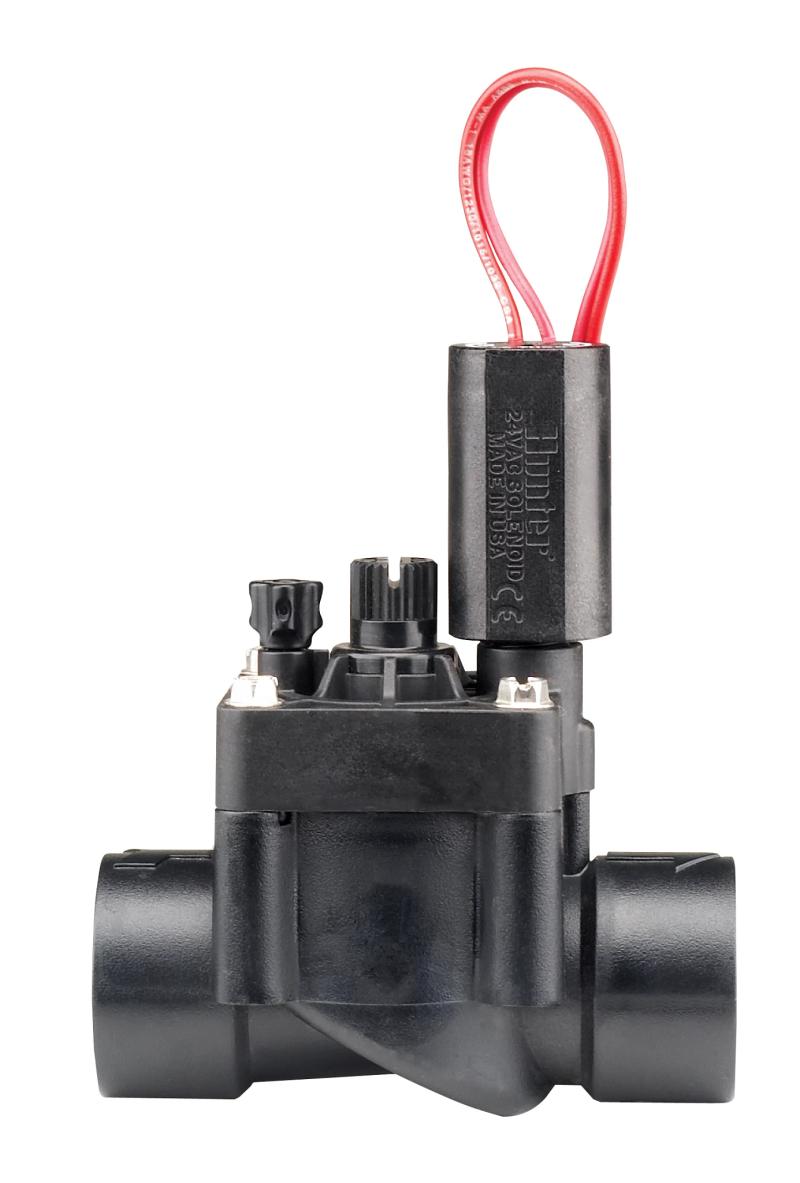

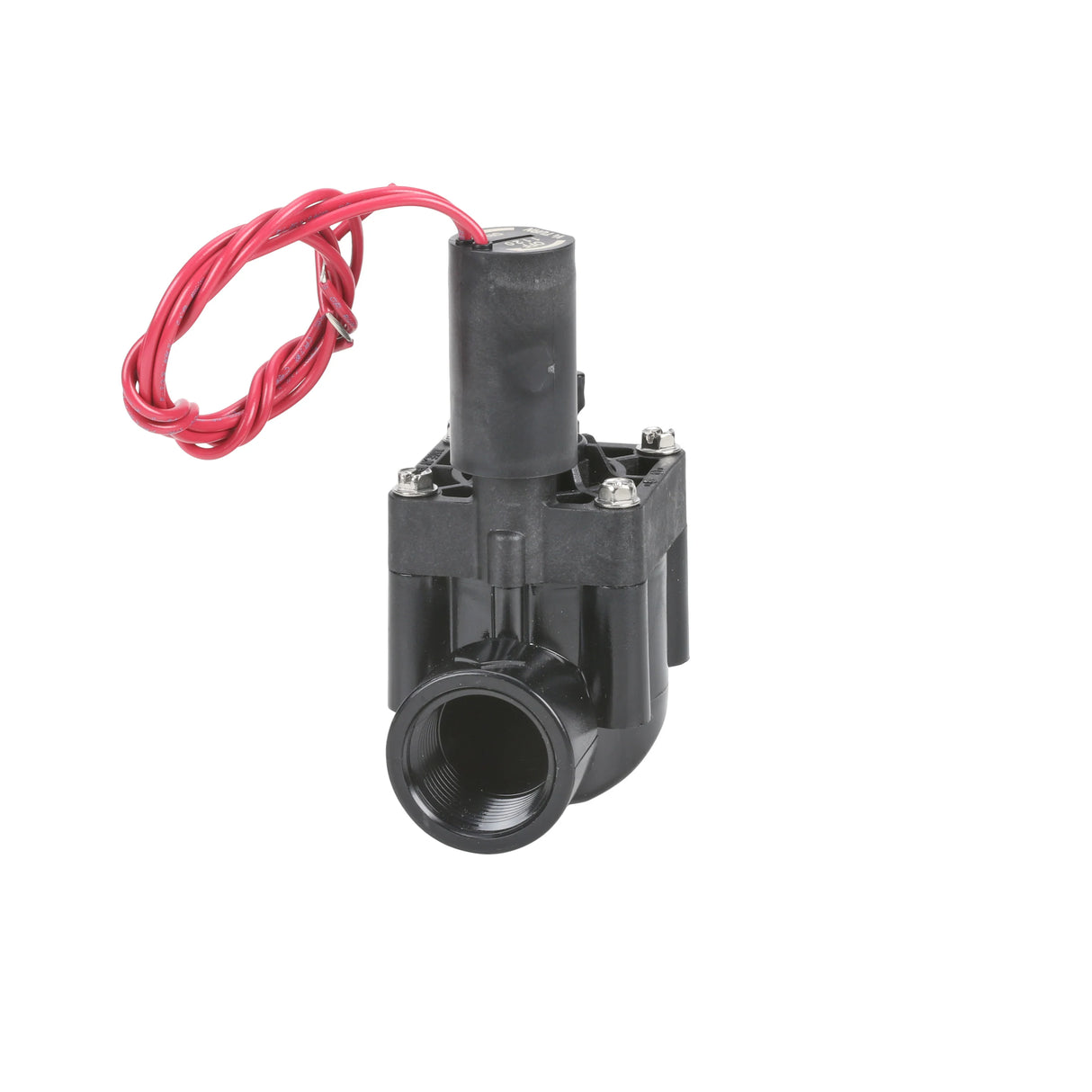

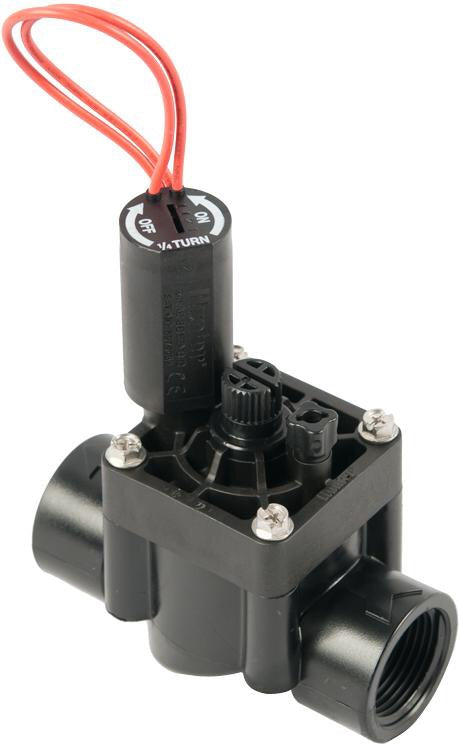

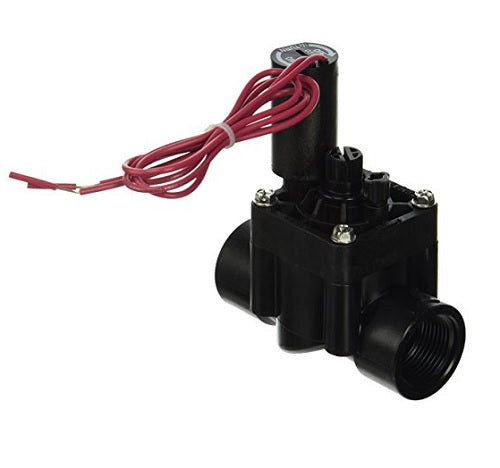

Hunter PGV101G PGV Series 1-Inch Globe Valve with Flow Control

Product Description

The Hunter PGV101G is a professional-grade valve built for a broad range of landscaping demands. Features include durable, high-grade construction, flow control, and a rugged diaphragm. The valve has an internal manual bleed and a Hunter solenoid for long life. It maximizes efficiency and prolongs system life by fine-tuning flow and pressure.

• Each model is available in either a flow control or non-flow control version
• All models feature durable high-grade construction and a rugged diaphragm
• External and internal manual bleed allows quick and easy ''at the valve'' activation

Product Highlights

The Hunter PGV valve is designed for use in sprinkler and irrigation systems. It has rigid diaphragm support, flow control, and high-grade construction to prevent stress failure.

Product Information

Standard Information

• Brand: HUNTER
• Manufacturer Part Number: PGV101G

Technical Specifications

• Brand: Landscape Irrigation
• Product Line: Valves
• Product Model: 1" PGV
• SKU: PGV101G
• Inlet Size: 1"
• UPC-A: 0611698111574
• Material: Plastic
• Inlet Connection Size: 1 Inches
• Inlet Connection Type: Barb
• Outlet Connection Type: Barb
• Number of Ports: 2
• Outlet Connection Size: 1 Inches
• Connector Type: Barb
• Thread Size: 1-inch NPT
• Thread Type: NPT
• Valve Type: pgv
• Size: 1'' Female Pipe Thread
• Item Type Name: Globe Valve
• Unit Count: 1.0 Count
• Flow rate: 0.2 to 40 GPM
• Recommended pressure range: 20 to 150 PSI
• Temperature rating: 150 00b0 F
• Solenoid: 24 VAC solenoid
• Solenoid inrush: 350 mA inrush, 190 mA holding, 60 cycles
• Solenoid inrush2: 370 mA inrush, 210 mA holding, 50 cycles
