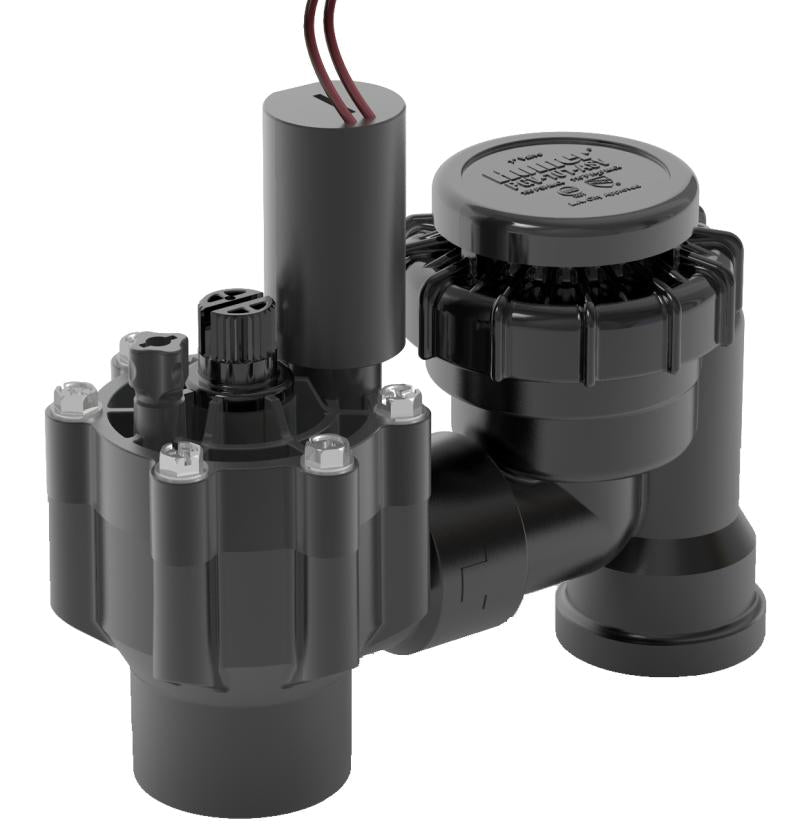

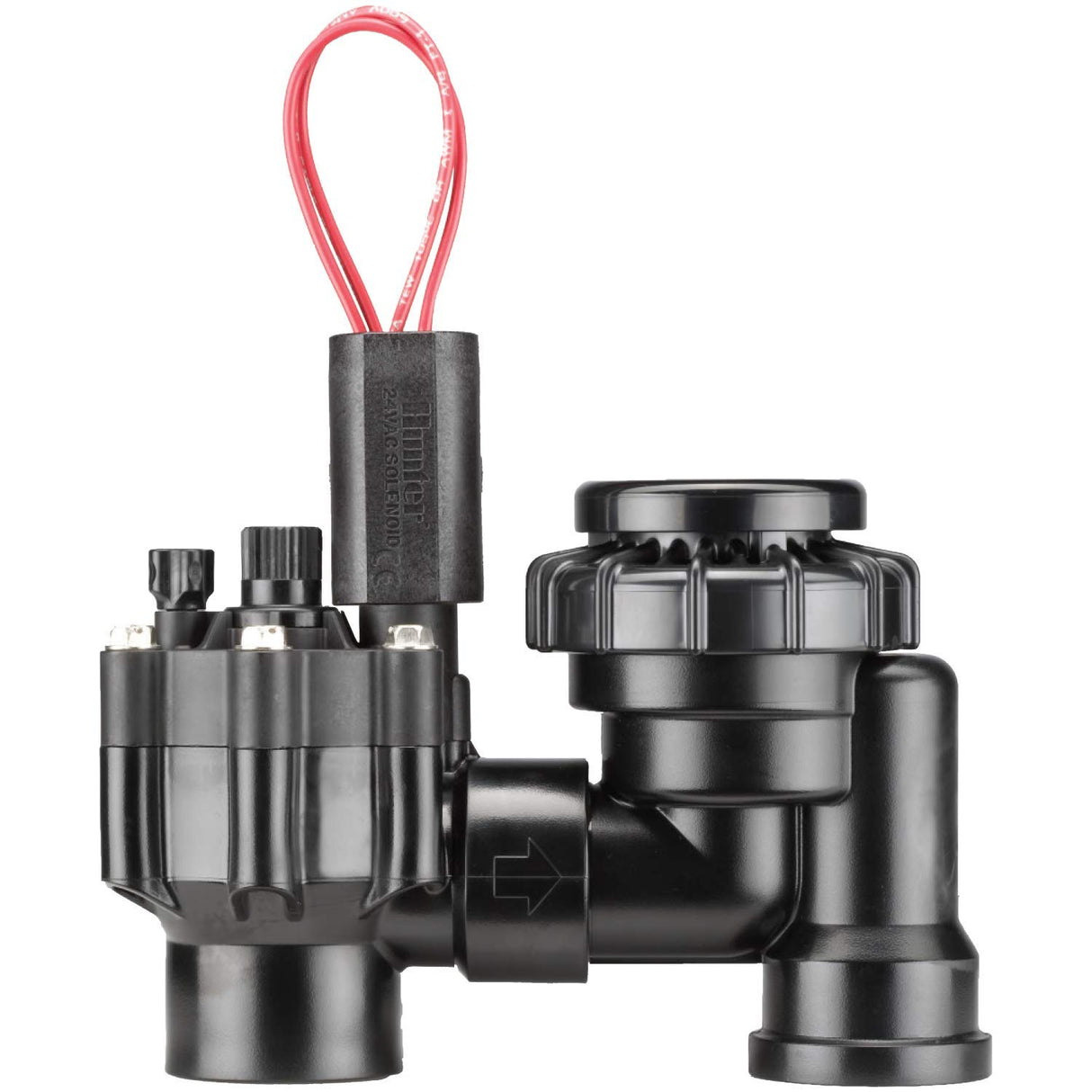

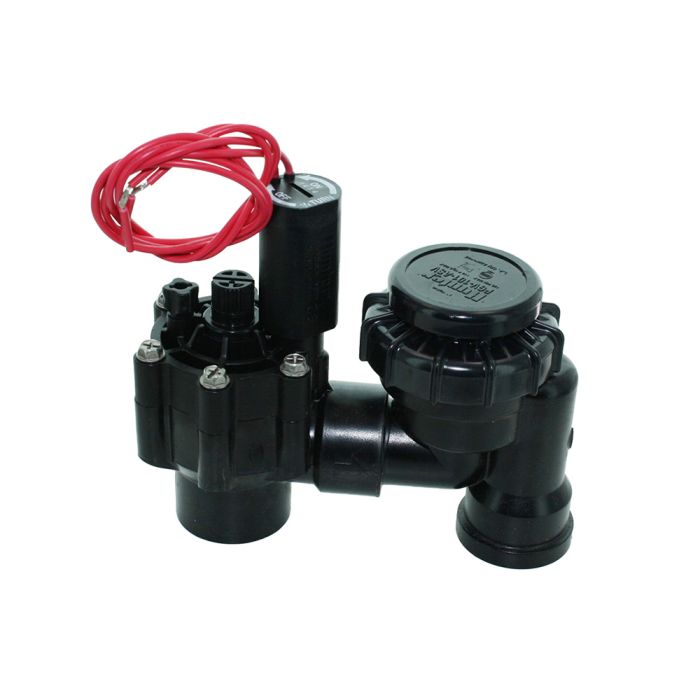

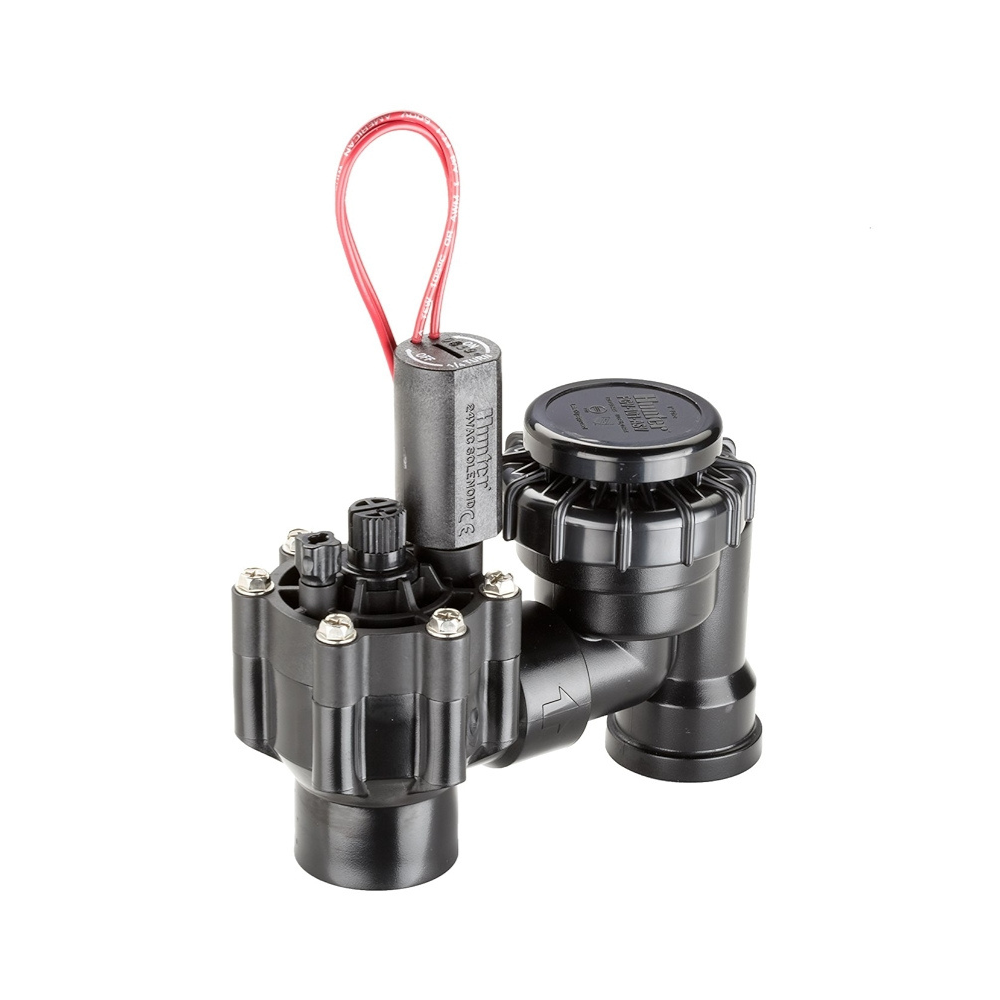

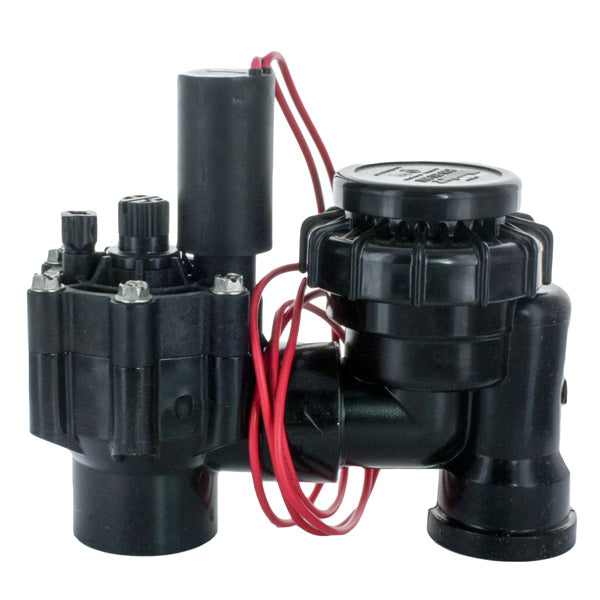

Hunter PGV101ASV Anti-Siphon Valve 1 inches with Flow Control

Product Description

The Hunter PGV101ASV is a 1" anti-siphon electric irrigation valve with built-in flow control, designed for reliable zone protection where backflow prevention is required. Engineered for professional use, the PGV-ASV combines heavy-duty construction with easy serviceability and accurate flow adjustment to keep systems running efficiently.

• External and internal manual bleed allows quick and easy at the valve activation.
• Maximize efficiency and prolong the life of a system by fine tuning flow and pressure for each zone with flow control.
• Durable six-bolt bonnet design for maximum strength.

Product Highlights

This anti-siphon valve is ideal for residential and commercial irrigation zones that need a compact, all-in-one anti-siphon solution. It features a heavy-duty PVC body, glass-reinforced bonnet, and stainless-steel hardware for corrosion resistance and long life.

Product Information

Standard Information

• Brand: HUNTER
• Manufacturer Part Number: PGV101ASV
• Country of Origin: Mexico

Technical Specifications

• Country of Origin (subject to change): Mexico
• Inlet Size: 1"
• Material: Plastic
• Size: 1'' Female Pipe Thread Connection
• Temperature rating: 150 F
• Flow rate: 0.2 to 40 GPM
• Recommended pressure range: 20 to 150 PSI
• Operating Voltage: 24 VAC
• Body Material: Heavy-duty PVC
• Bonnet Material: Glass-reinforced PVC
• Hardware: Stainless Steel
• Flow Control: Yes
• Anti-Siphon: Yes
• Connection Type: Female Threaded (FPT)
• Valve Type: Anti-Siphon
• Connection: Slip
• Application: Residential
• Solenoid: Yes
