Product Description

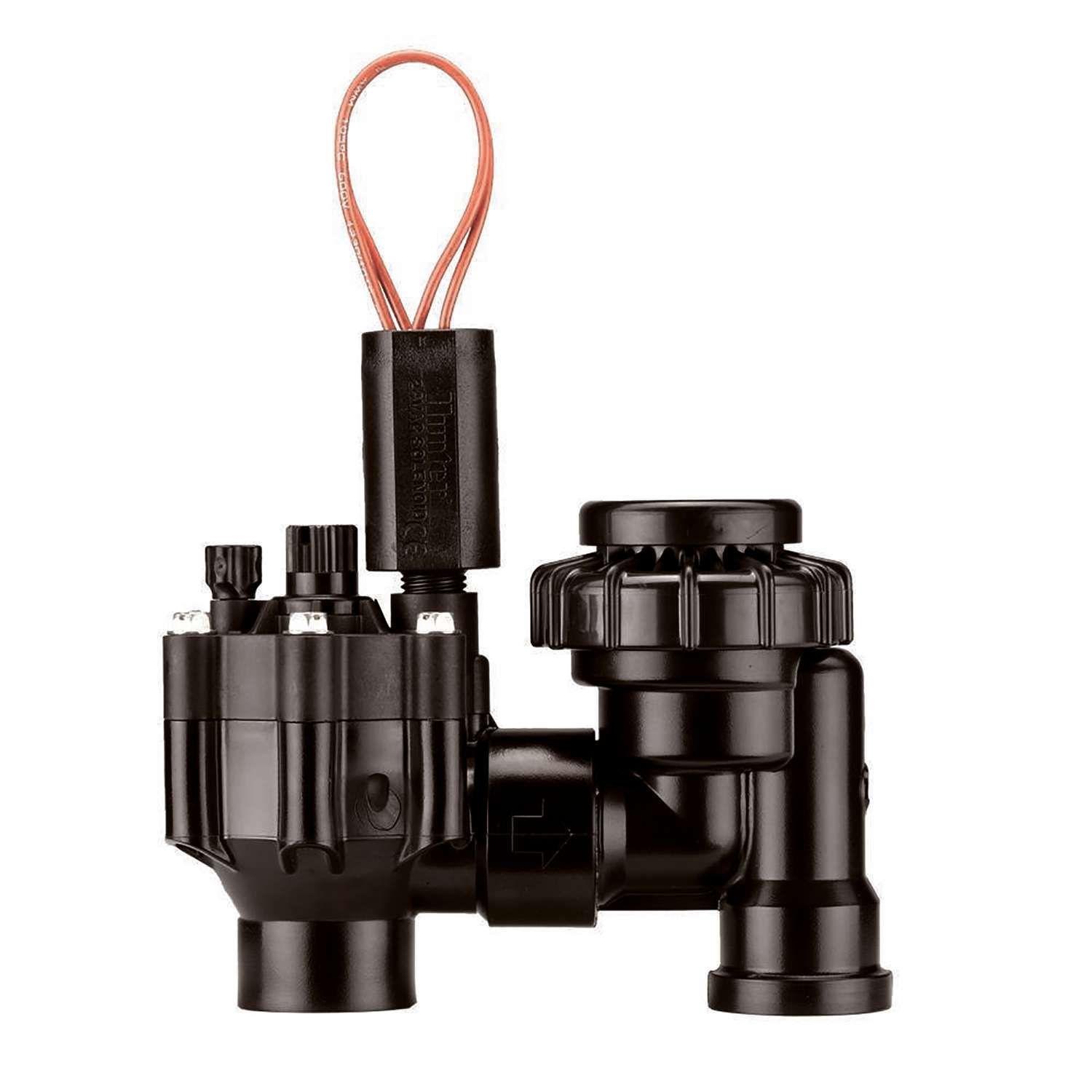

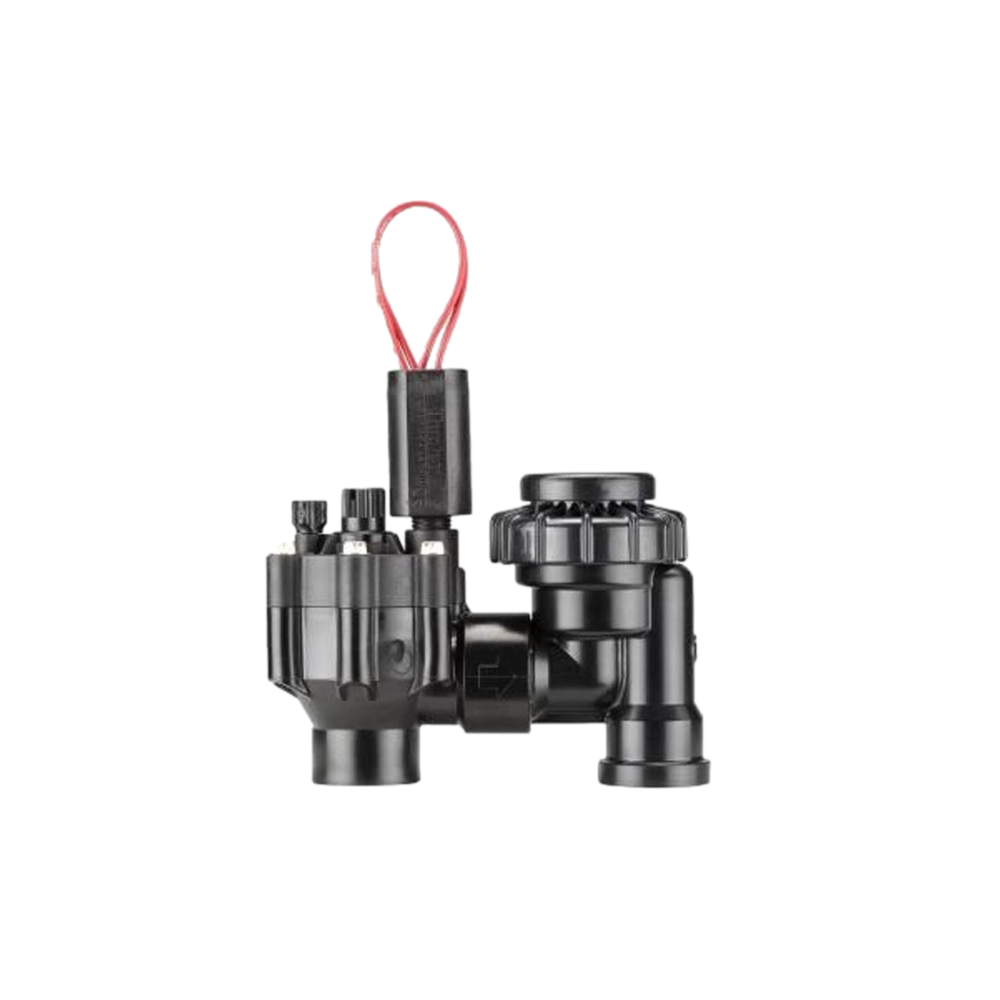

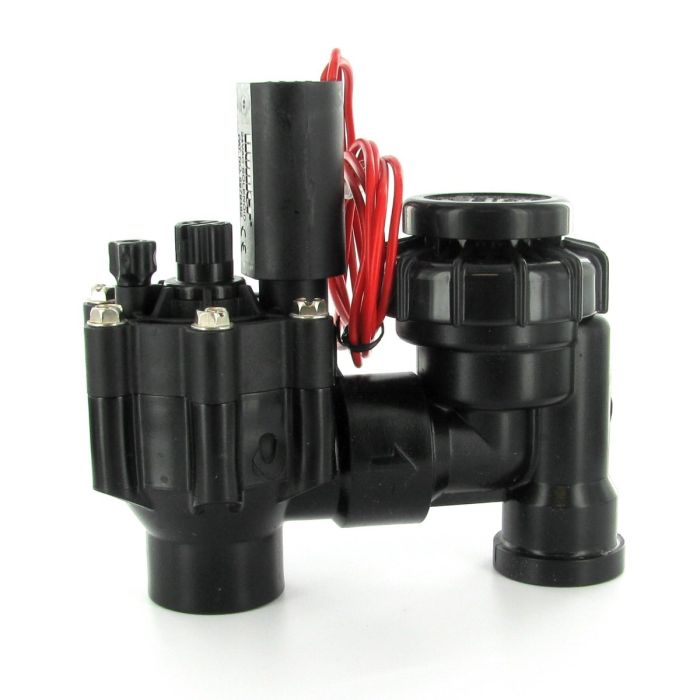

The Hunter PGV075ASV Anti-Siphon Valve is a backflow prevention device designed for residential and light commercial sprinkler and irrigation systems. This all-in-one anti-siphon valve unit features a stainless steel bonnet, screws, hardware and springs, a leak-proof diaphragm, and heavy-duty PVC construction that is UV and corrosion resistant.
- Provides extended life and dependability with heavy-duty Hunter solenoid.
- Features high grade construction with stainless steel and durable PVC to resist wear.
- Ensures a neat, dry valve box with internal manual bleed.
Product Highlights
The Hunter PGV-ASV series valve offers simple operation without needing a separate backflow preventer. It features flow control, allowing accurate adjustment.
Product Information
Standard Information
-
Brand: HUNTER
-
Manufacturer Part Number: PGV075ASV
-
Country of Origin: Mexico
Technical Specifications
-
Country of Origin (subject to change) [Specifications]: Mexico
-
Brand: Landscape Irrigation
-
Product Line: Valves
-
Product Model: PGV-ASV
-
SKU: PGV075ASV
-
Inlet Size: ¾"
-
Material: Plastic
-
Product Type: Anti-Siphon Valves
-
Body Material: Durable PVC
-
Flow Control: Flow Control
-
Valve Type: Anti-Siphon
-
Connection: FPT
-
Application: Residential
-
Solenoid: Yes
-
Warranty: 2 Years
-
Size: 3/4 in.
-
Inlet diameter: 3/4 ??
-
Height: 5 1/2 ??
-
Length: 5 3/4 ??
-
Width: 2 1/2 ??
-
Flow rate: 0.2 to 40 GPM
-
Recommended pressure range: 20 to 150 PSI
-
24 VAC solenoid: None
-
350 mA inrush, 190 mA holding, 60 cycles: None
-
370 mA inrush, 210 mA holding, 50 cycles: None
-
Temperature rating: 150° F
