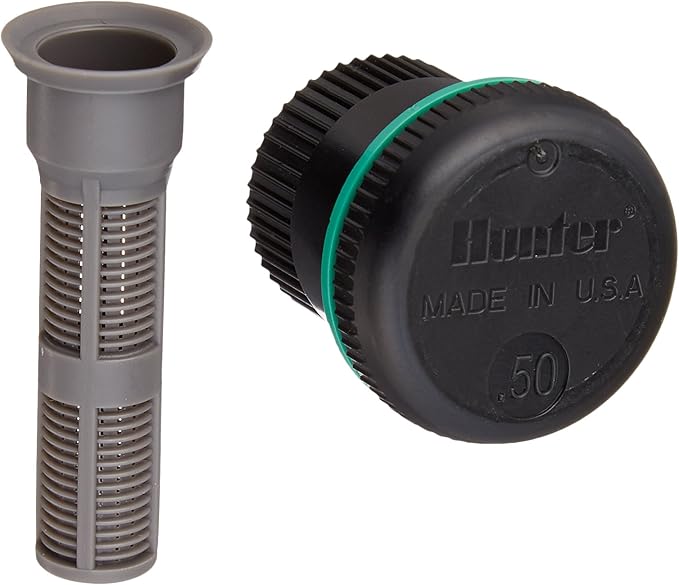

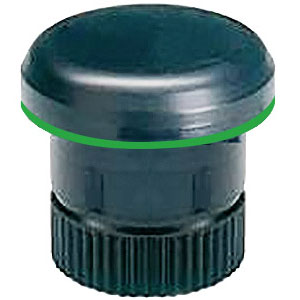

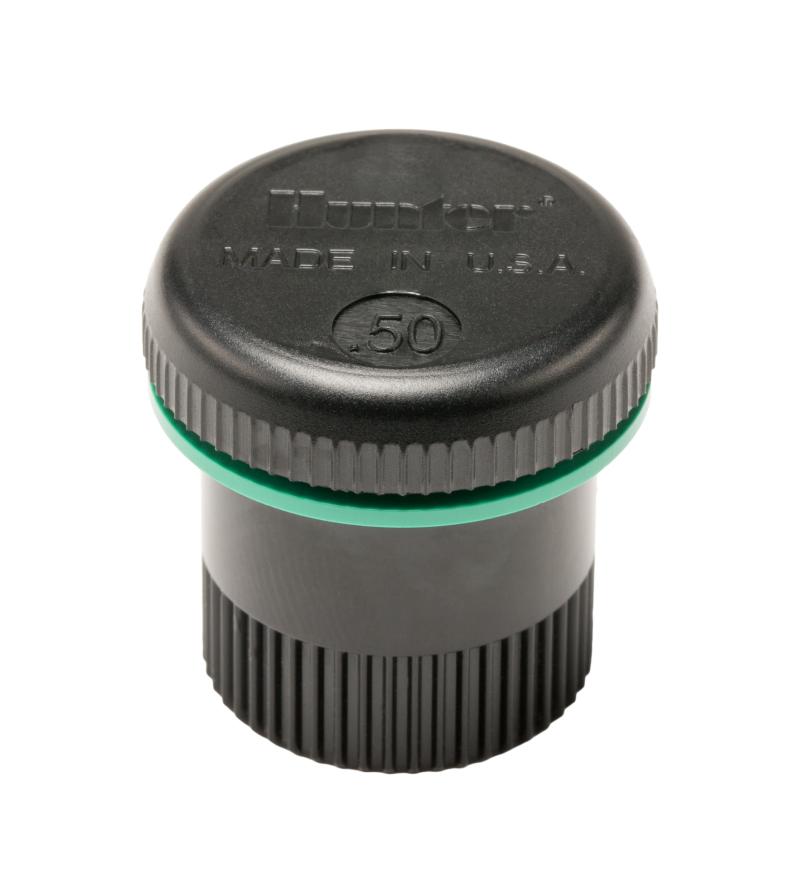

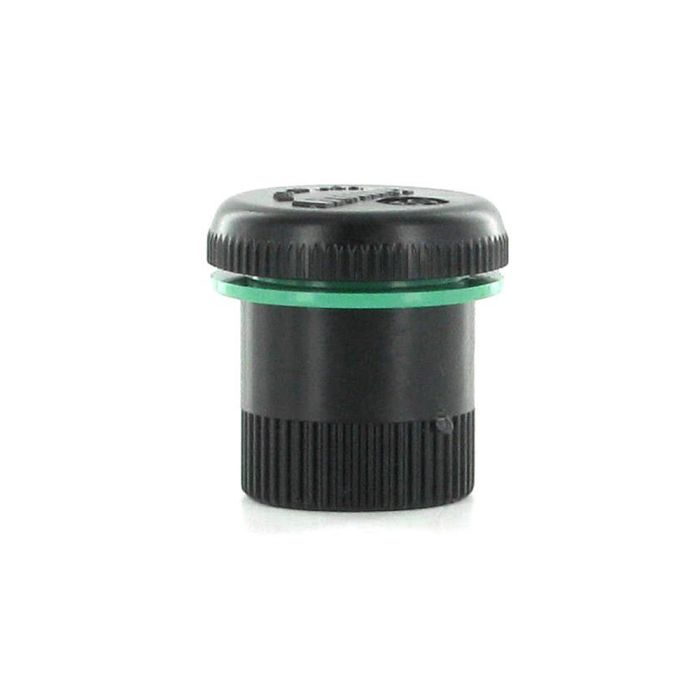

Hunter PCN50 PCN Series Bubbler Nozzle 0.50 GPM

Product Description

The Hunter PCN50 PCN Series Bubbler Nozzle is designed to enhance drip irrigation systems. With the ability to compensate for pressure differences, the bubbler nozzles allow the output of water to remain constant regardless of the input pressure. It is suitable to use with Pro-Spray spray bodies, trees, shrub plantings, and plants.

• Pressure-compensating design delivers a consistent 0.5 GPM flow across varying inlet pressures
• Operates reliably between 15–70 PSI for stable performance across a wide pressure range
• Female-threaded inlet allows quick, secure installation on standard risers

Product Highlights

This bubbler nozzle provides the correct amount of water, so there is no unnecessary waste or runoff. It is excellent for rugged areas.

Product Information

Standard Information

• Brand: HUNTER
• Manufacturer Part Number: PCN50

Technical Specifications

• Brand: Hunter
• Product Line: Nozzles
• Product Model: Bubblers & Bubbler Nozzles
• SKU: PCN50
• Product Type: Bubblers & Bubbler Nozzles
• Max PSI: 70 PSI
• Operating PSI: 15 - 70 PSI
• Spray Pattern: Full Circle
• Flow Rate: 0.5 gpm
• Manufacturer: Standard Plumbing Supply-LG
• Type: Bubbler
• Connection Type: Female
• Series: PCN Series
• Connection Size: 1/2 in.
• Maximum Operating Pressure: 70 PSI
• Maximum Flow Rate: 0.50 GPM
• Item: Nozzle
• Minimum Operating Pressure: 15 PSI
• Operating Pressure: 15 PSI - 70 PSI
• Regulated: No
• Nozzle Radius: 1 to 1.5 ft.
• Nozzle Type: Bubbler Nozzles
• MFG Number: PCN50
• UPC: 611698112502
• Pressure Rating: 15 to 70 psi
• Series/Model: PCN
• Radius (ft): 1 to 1.5 ft.
