Hunter Industries PGP04CV 4 Inch Pop-up Rotor with Check Valve

Product Description

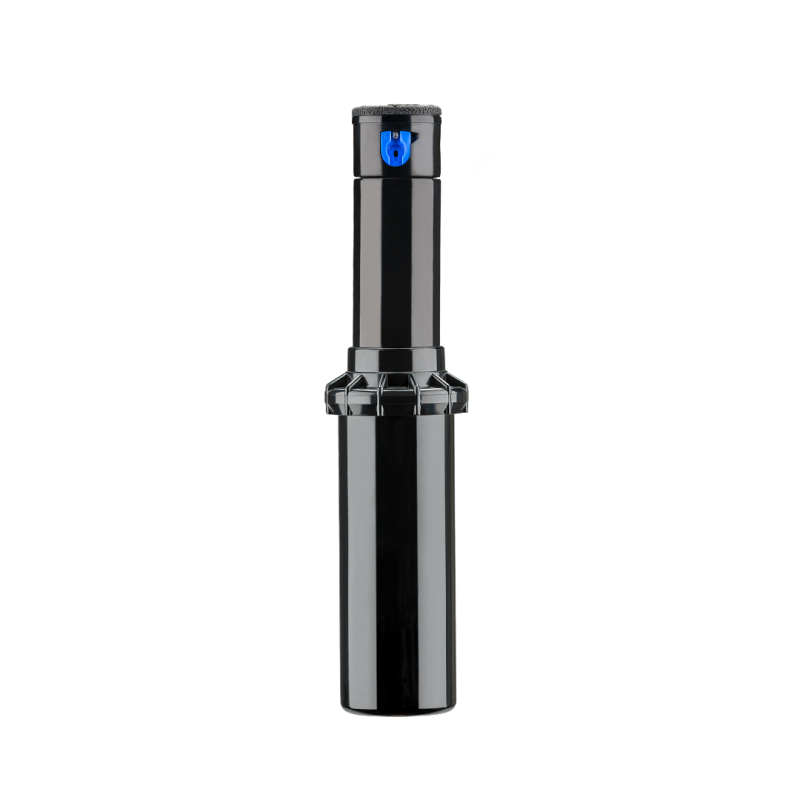

The HUNTER INDUSTRIES PGP04CV is a 4-inch pop-up gear-driven rotor sprinkler head with an integrated check valve and a 3/4-inch inlet connection. Designed for medium to large turf and landscape irrigation zones, this rotor retracts flush with the ground when not in operation and extends under system pressure to deliver a consistent, adjustable arc. The built-in check valve prevents low-head drainage, stopping water from seeping out of the lowest heads in a zone after the system shuts off. Licensed irrigation contractors and landscape professionals are the primary installers of this type of rotor head.

The PGP04CV is suited for residential and light commercial irrigation systems where reliable rotor coverage and water conservation are priorities. The check valve feature makes it particularly well-matched for sloped or undulating terrain where low-head drainage would otherwise cause puddling, erosion, or runoff near heads at the bottom of a run. It is installed in standard pop-up rotor positions within existing or new irrigation system laterals.

Key Features

• 4-inch pop-up height for coverage above typical turf height
• Integrated check valve prevents low-head drainage after system shutoff
• 3/4-inch inlet connection for compatibility with standard lateral piping
• Gear-driven rotor design for uniform, adjustable arc distribution
• Retracts flush with grade when not pressurized, reducing mowing interference

Compatibility

Designed as an OEM-style replacement or new-installation rotor for standard residential and commercial irrigation systems using 3/4-inch threaded lateral connections.

Installation Notes

Installation is typically performed by licensed irrigation contractors in accordance with local plumbing and irrigation codes. Shut off the irrigation system and relieve line pressure before removing or installing any rotor head. Use thread seal tape on all threaded connections to prevent leaks at the inlet. Avoid overtightening the threaded body, which can crack the housing or distort the seal.

Technical Specifications

• Pop-Up Height: 4 inches
• Inlet Size: 3/4 inches
• Check Valve: Integrated
• Weight: 0.73 pounds
• UPC: 10611698157401

Standard Information

• Brand: HUNTER INDUSTRIES
• Manufacturer Part Number: PGP04CV
