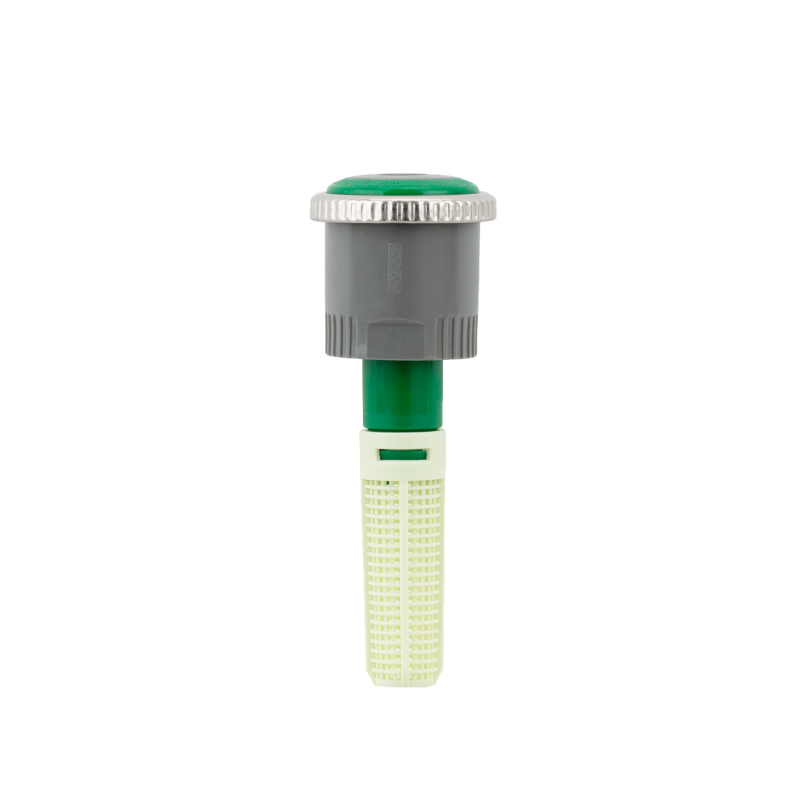

Hunter Industries MP820210 Mp Rotator Nozzle 210-270 Degree

Product Description

The HUNTER INDUSTRIES MP820210 is an MP Rotator nozzle designed to deliver water in a slow, rotating stream pattern across a fixed arc of 210 to 270 degrees. This female-thread nozzle threads onto compatible pop-up spray heads and converts standard fixed-spray bodies into multi-stream rotary applicators. The rotating stream pattern reduces precipitation rate and runoff compared to conventional fixed spray nozzles, making it well suited for sloped turf, clay soils, and other sites where infiltration rate is a concern. Irrigation technicians and landscape contractors install this nozzle during new system construction or as a retrofit on existing spray zones.

The MP820210 is intended for residential and light commercial irrigation systems. It fits standard pop-up spray bodies with a female-thread inlet and is used on zones requiring a mid-range throw with a partial-arc pattern. The 210 to 270 degree arc range makes it appropriate for corner areas, L-shaped turf sections, and irregular lot shapes where a full or half-circle nozzle would overspray hardscapes or structures. The low precipitation rate supports matched-precipitation zoning when combined with other MP Rotator nozzles in the same valve zone.

Key Features

• Multi-stream rotating pattern lowers precipitation rate and reduces runoff on slopes and low-infiltration soils
• 210 to 270 degree adjustable arc covers partial-circle irrigation zones
• Female-thread inlet fits standard spray body risers and pop-up heads
• Retrofit-compatible design allows upgrade from fixed spray without replacing the spray body
• Consistent matched-precipitation rate supports multi-nozzle zone uniformity

Compatibility

Designed as an OEM-style replacement nozzle for standard female-thread pop-up spray bodies used in residential and light commercial irrigation systems.

Installation Notes

This nozzle is installed by irrigation technicians or qualified landscape contractors. Shut off the irrigation controller and close the zone valve before removing or installing nozzles. Thread the nozzle onto the spray body by hand and avoid overtightening, which can crack the nozzle body. Verify arc orientation and throw radius after installation by running the zone through a brief test cycle before closing up the site.

Technical Specifications

• Arc Range: 210 to 270 degrees
• Thread Type: Female
• Weight: 0.03 pounds
• Order Increment: 1

Standard Information

• Brand: HUNTER INDUSTRIES
• Manufacturer Part Number: MP820210
