Hunter Industries I4004SSON 4 Inch Pop-up Rotor Opposing Nozzles

Product Description

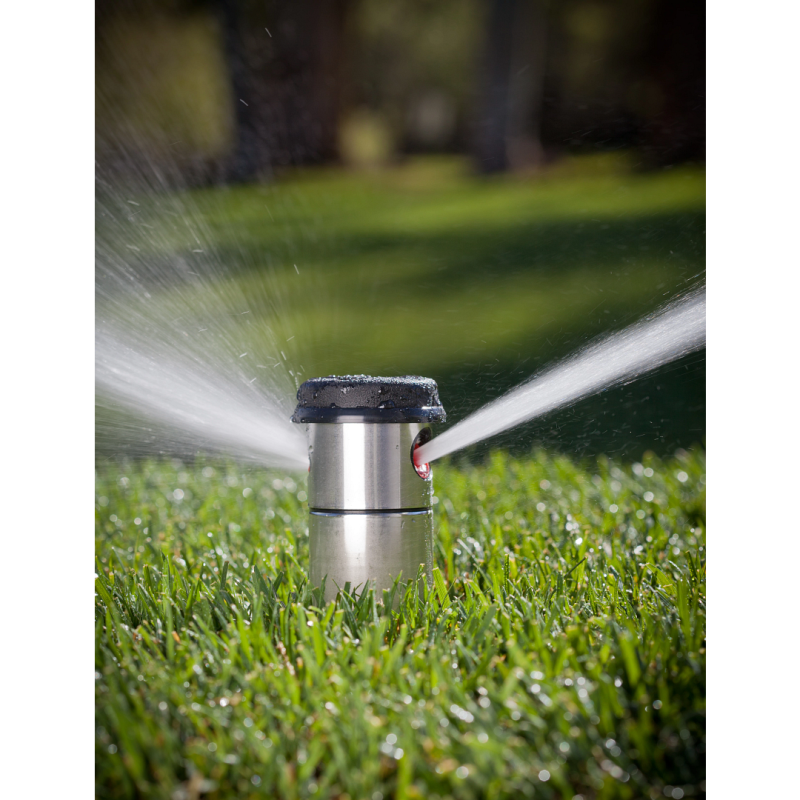

The HUNTER INDUSTRIES I4004SSON is a 4-inch pop-up rotor sprinkler head fitted with opposing nozzles and a 1-inch inlet connection. Pop-up rotors deliver a rotating stream of water across a defined arc, making them a reliable choice for medium to large turf and landscape zones. The opposing nozzle configuration allows simultaneous coverage in two directions from a single head, reducing the number of heads required to achieve uniform distribution. Licensed irrigation contractors and landscape professionals install this type of rotor during new construction or as a replacement in existing commercial and residential irrigation systems.

This rotor is suited for in-ground irrigation systems where a 4-inch pop-up height provides adequate clearance above turf and ground cover. The 1-inch inlet size accommodates standard lateral piping used in commercial and higher-flow residential irrigation zones. It is appropriate for both new installations and retrofit applications where a durable, consistent-coverage rotor is needed in medium to large irrigated areas.

Key Features

• 4-inch pop-up height clears typical turf and ground cover during operation
• Opposing nozzle design delivers coverage in two directions from a single body
• 1-inch inlet connection fits standard commercial and residential lateral piping
• Rotor-style distribution provides consistent, low-precipitation-rate coverage across wider throw radii
• Retracts flush to grade when system is off, reducing mowing and foot-traffic interference

Compatibility

Designed as an OEM-style replacement or new-install rotor for in-ground irrigation systems utilizing 1-inch inlet connections and requiring a 4-inch pop-up height.

Installation Notes

Installation should be performed by a licensed irrigation contractor in accordance with local plumbing and irrigation codes. Shut off the irrigation system water supply and depressurize the lateral line before making any connections. Ensure the rotor body is set to finished grade to allow proper pop-up travel and clean retraction. Do not overtighten threaded inlet connections, as this can crack the rotor body.

Technical Specifications

• Pop-Up Height: 4 inches
• Inlet Size: 1 inch
• Nozzle Configuration: Opposing Nozzles
• Weight: 1.12 pounds
• UPC: 10611698156220

Standard Information

• Brand: HUNTER INDUSTRIES
• Manufacturer Part Number: I4004SSON
