Hunter Industries HC075FLOW Pulse Flow Meter 0.75 in

Product Description

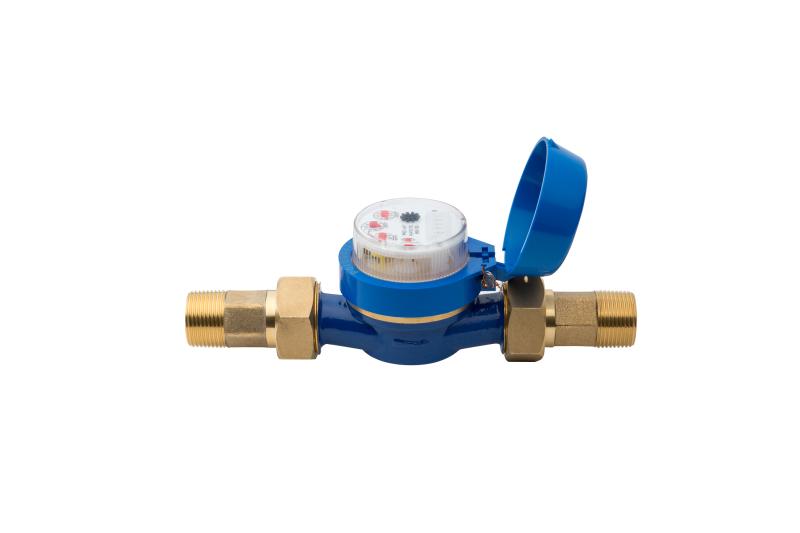

The HUNTER INDUSTRIES HC075FLOW is a 3/4-inch pulse flow meter designed to monitor water consumption in irrigation systems managed by Hydrawise-compatible controllers. The device generates a pulse signal for each unit of water that passes through, allowing the controller to track flow rate and total volume in real time. Licensed irrigation contractors and commercial landscape technicians install this meter inline on the mainline supply to enable flow-based monitoring, leak detection alerts, and water budget management. At 2.5 pounds, it is compact enough for standard valve-box installations.

The HC075FLOW is suited for residential and light commercial irrigation systems where Hydrawise-based controllers are already in use. The 3/4-inch connection size makes it compatible with common mainline pipe sizes found in residential landscapes and small commercial properties. When integrated with a Hydrawise controller, the meter enables automatic flow monitoring that can trigger alerts or shut down zones when abnormal flow is detected, supporting efficient water management and compliance with local irrigation ordinances.

Key Features

• 3/4-inch connection size fits standard residential mainline pipe configurations
• Pulse-output signal integrates directly with Hydrawise-compatible irrigation controllers
• Enables real-time flow monitoring, leak detection, and water budget tracking
• Compact and lightweight at 2.5 pounds for easy valve-box or inline installation
• Designed for use with the Hydrawise platform for cloud-based irrigation management

Compatibility

Designed for use with Hydrawise-compatible irrigation controllers as stated by the manufacturer. Refer to your Hydrawise controller documentation to confirm pulse flow meter input support before installation.

Installation Notes

Installation is typically performed by a licensed irrigation contractor or journeyman plumber in accordance with local plumbing and irrigation codes. Shut off the mainline water supply and depressurize the line before cutting in the meter. Observe the directional flow arrow on the meter body to ensure proper orientation in the line. Connect the pulse signal wire to the designated flow sensor input on the Hydrawise controller per the controller wiring diagram.

Technical Specifications

• Connection Size: 0.75 inches
• Weight: 2.5 pounds
• UPC: 10611698358242
• Order Increment: 1

Standard Information

• Brand: HUNTER INDUSTRIES
• Manufacturer Part Number: HC075FLOW
