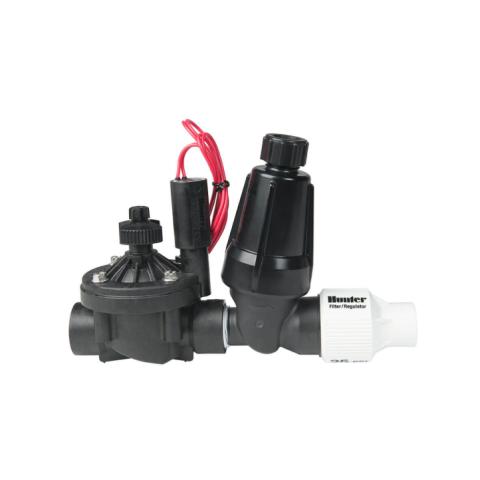

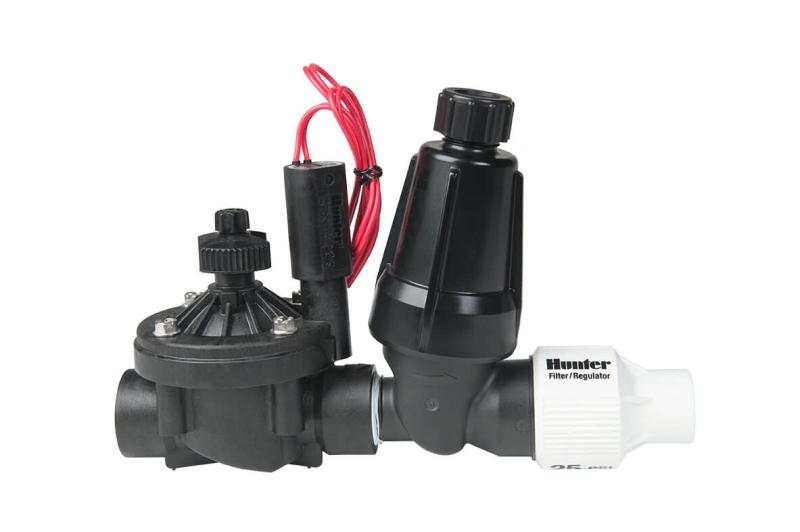

Hunter ICZ-101-40-LF ICZ Drip Control Zone Kit, 1 inches, 40 PSI Regulation, Low-Flow, 0.5 to 15 GPM

Product Description

The HUNTER ICZ-101-40-LF ICZ Drip Control Zone Kit is designed for commercial job sites. This kit offers the superior performance of Hunter ICV Valves along with a stainless steel filter and pressure regulator. It provides pressure regulation at 40 PSI, making it possible to accommodate drip needs.

• Highest-quality components set Hunter kits apart
• Highest flow options in the industry
• Factory-assembled to save installation time

Product Highlights

The ICZ Drip Control Zone Kits offer reliable low-flow pressure regulation and filtration for drip zones. Each component is preassembled and water tested for hassle-free installation.

Product Information

Standard Information

• Brand: HUNTER
• Manufacturer Part Number: ICZ-101-40-LF

Technical Specifications

• Pressure regulation: 40 PSI
• Flow: 0.5 to 15 GPM (30 to 900 GPH)
• System operating pressure: Up to 120 PSI
• Operating temperature: Up to 120 F
• Heavy-duty solenoid: 24 VAC
• 350 mA inrush current, 190 mA holding current, 60 cycles: None
• 370 mA inrush current, 210 mA holding current, 50 cycles: None
• Filter screen: 150-mesh stainless steel screen
• Inlet and outlet: 1" inlet and ¾" outlet
• Connection Size: 1 in. x 3/4 in.
• Mesh Size: 150 Mesh
• Regulating Pressure: 40 PSI
• Item: Control Zone
• Type: Low-Flow
• Includes: Pressure Regulator
• Regulated: No
• Item model number: ICZ10140
