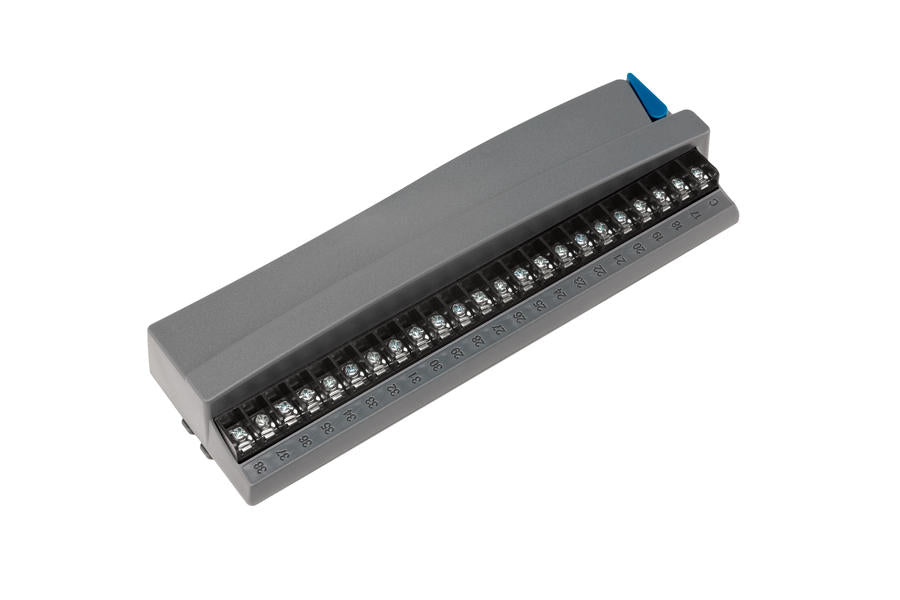

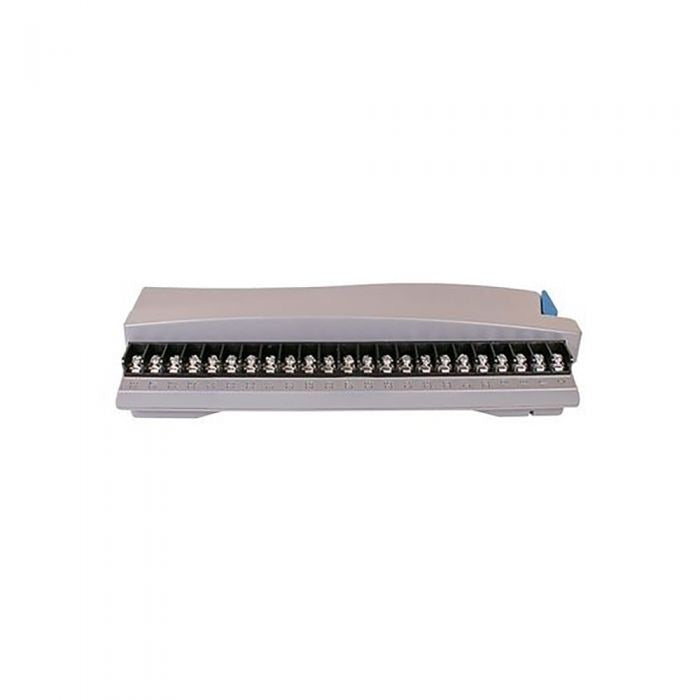

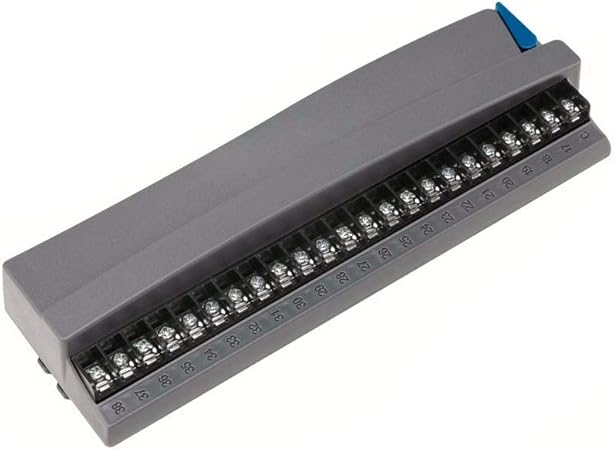

Hunter ICM2200 Output Module 22-Station

Product Description

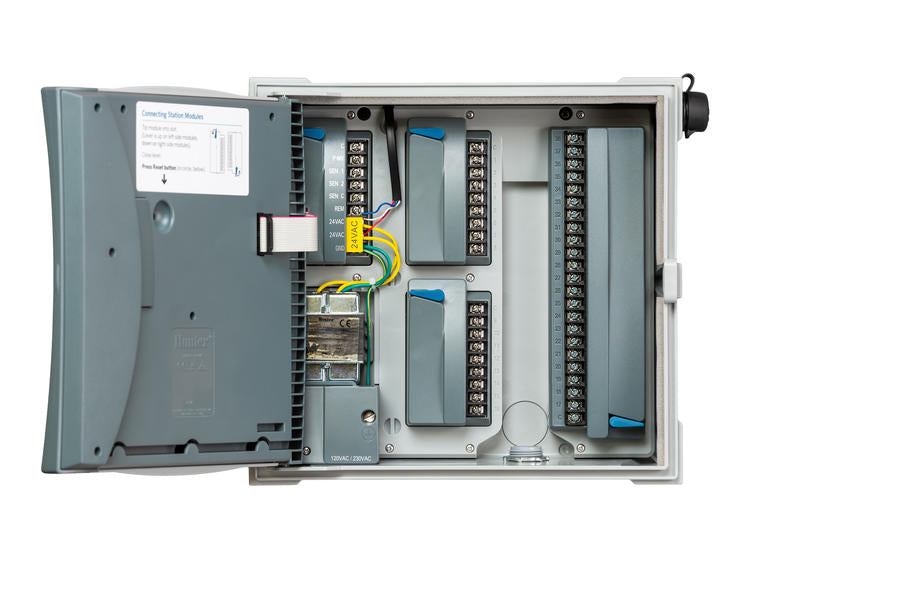

The HUNTER ICM2200 is an output module for HCC, ICC2, and MCC controllers, offering a 22-station capacity. It expands station capabilities, allowing up to 54 stations in ICC2/HCC metal enclosures and 38 stations in plastic enclosures. This plug-in expansion module requires all prior slots to be filled with ICM-800 modules.

• 22-Station Expansion Module.
• Allows up to 54 stations in ICC2/HCC metal enclosures and 38 stations in plastic enclosures.
• Plug-in Expansion.

Product Highlights

The ICM-2200 module increases the number of zones a timer can operate and is compatible with Hunter ICC, ICC2, and HCC timers.

Product Information

Standard Information

• Brand: HUNTER
• Manufacturer Part Number: ICM2200
• Country of Origin: United States

Technical Specifications

• Controller Power: AC
• Field Valve Connection: Conventional wired
• Network Connection Type: None
• Material: Plastic
• Number of settings: 22
• Unit Count: 1.0 Count
• Brand: Hunter
• Model: ICM2200
• Condition: New
• Country of Origin: United States
• Product Type: Controller Modules
• Controller Compatibility: ICC2 Controller
