Hunter ICD400 Icd-400 4-Station

Product Description

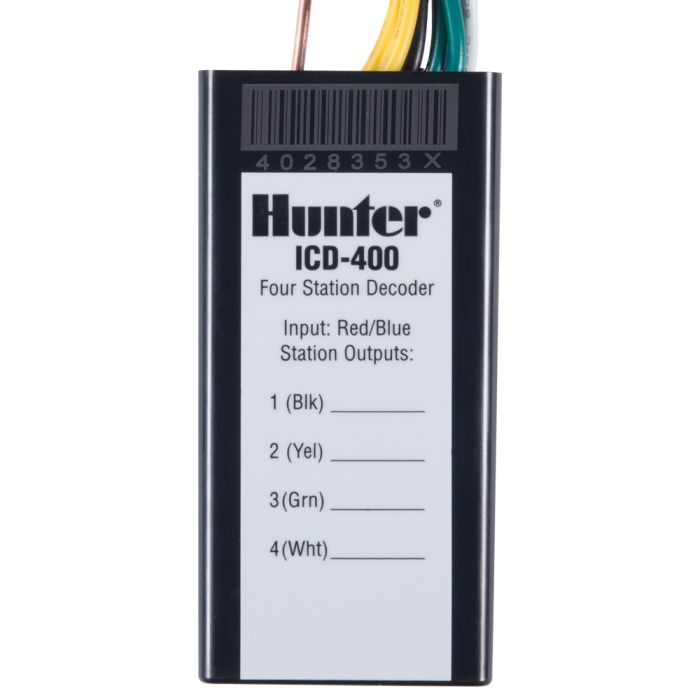

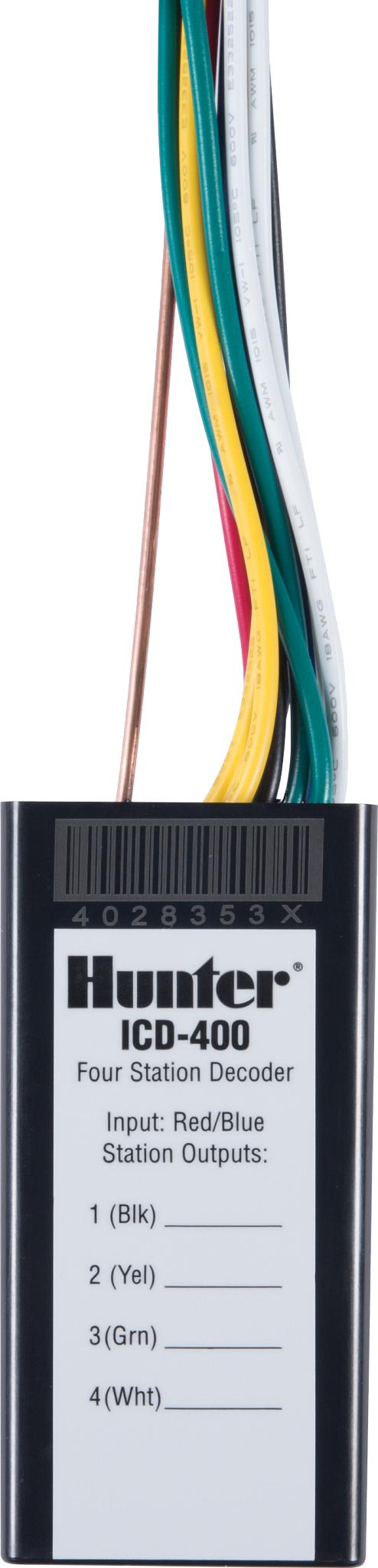

The HUNTER ICD400 Icd-400 is a decoder for use with ACC and ACC2 Controllers, designed for 4 stations. It is Hunter’s premium two-wire decoder for long-distance, high-station-count ACC99D and ACC2 applications, and includes two-way communications and integrated surge protection.

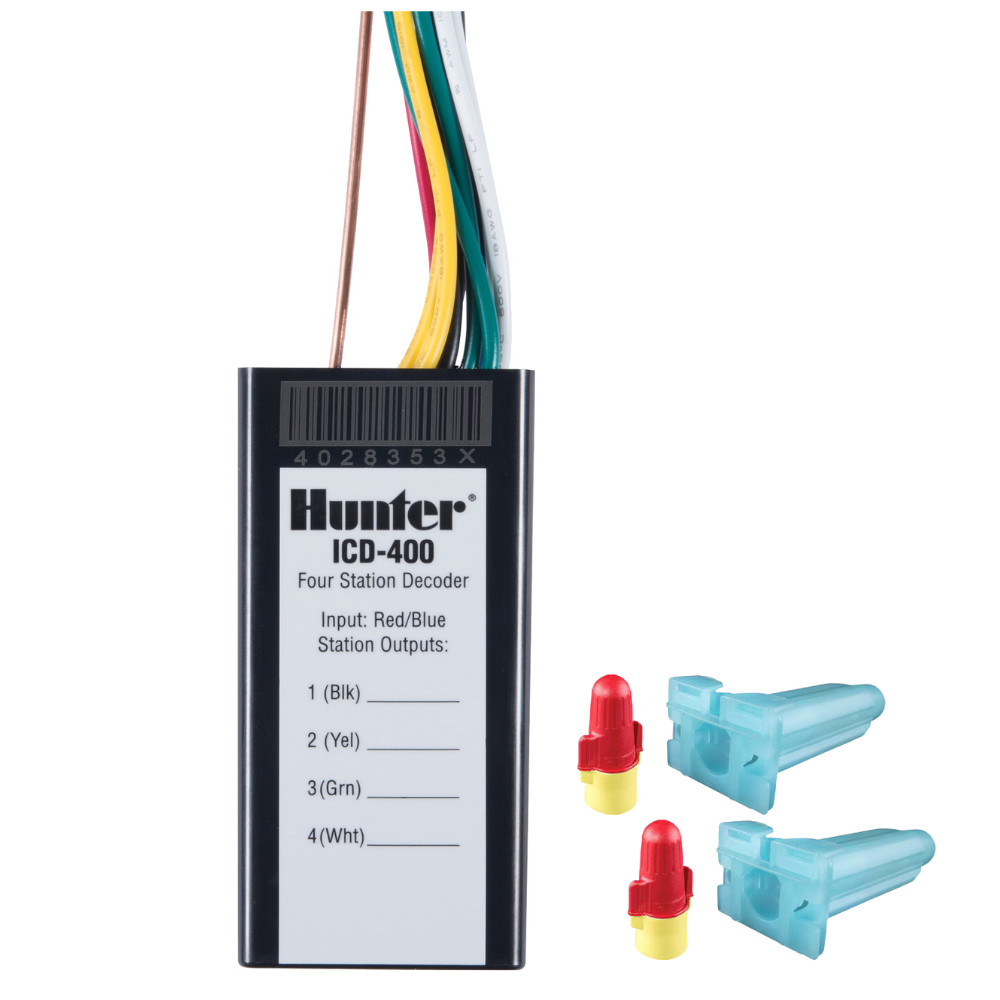

• (2) DBRY-6 waterproof connectors included for two-wire path splices
• ICD decoders are compatible with Hunter ACC2 Decoder Controllers and legacy ACC-99D Decoder Controllers.
• 1-, 2-, 4-, and 6-station versions provide maximum flexibility

Product Highlights

This 4-station decoder offers maximum flexibility and is compatible with Hunter ACC2 and legacy ACC-99D Decoder Controllers. It supports sensor monitoring via two-wire paths and features field-programmable station numbers.

Product Information

Standard Information

• Brand: HUNTER
• Manufacturer Part Number: ICD400
• Country of Origin: United States

Technical Specifications

• Controller Power: AC
• Field Valve Connection: Two-wire
• Network Connection Type: None
• Maximum recommended distance, decoder to solenoid: 150'
• Maximum distance to decoder via two-wire path (14 AWG wire path): 10,000'
• Maximum distance to decoder via two-wire path (12 AWG wire path): 15,000'
• Approvals: UL, cUL, FCC, CE, RCM
• Decoder rating: IP68 submersible
• Decoder station sizes available: 1, 2, 4, 6
• Sensor decoder available with Flow and Click inputs: Sensor decoder available with Flow and Click inputs
• Field programmable decoders: Field programmable decoders
• ICD-HP wireless handheld programmer compatible: ICD-HP wireless handheld programmer compatible
• Two-way communications: Two-way communications
• Surge suppression: Internal (ground wire included)
• Dual pump/master valve outputs may be assigned to decoders: Dual pump/master valve outputs may be assigned to decoders
• Wire path connectors included with each decoder: Wire path connectors included with each decoder
• Number of wire paths: 6
• Automatic daily weather-based scheduling with optional Hunter Solar Sync sensor: Automatic daily weather-based scheduling with optional Hunter Solar Sync sensor
• Brand: Hunter
• Model: ICD400
• Country of Origin: United States
• Category: Business & Industrial
• Product Type: Controller Modules
• Station Expansion: 4
