Product Description

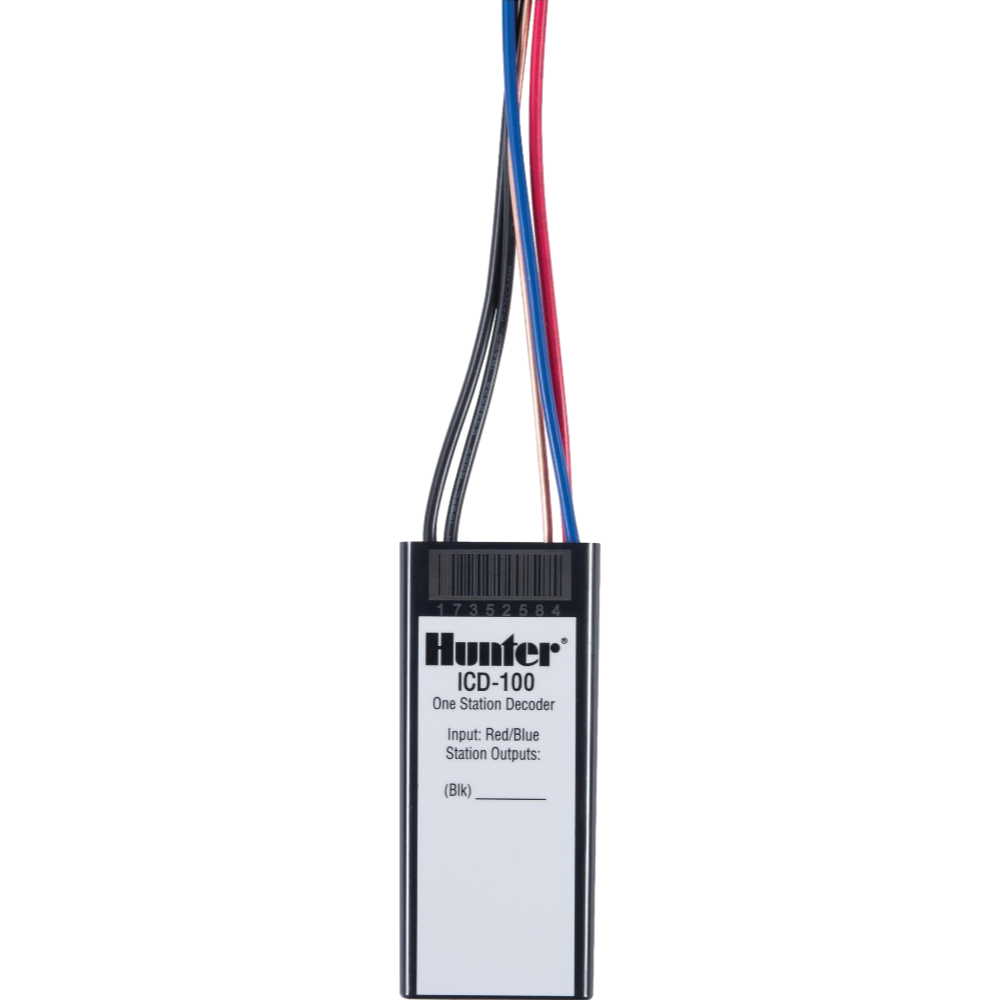

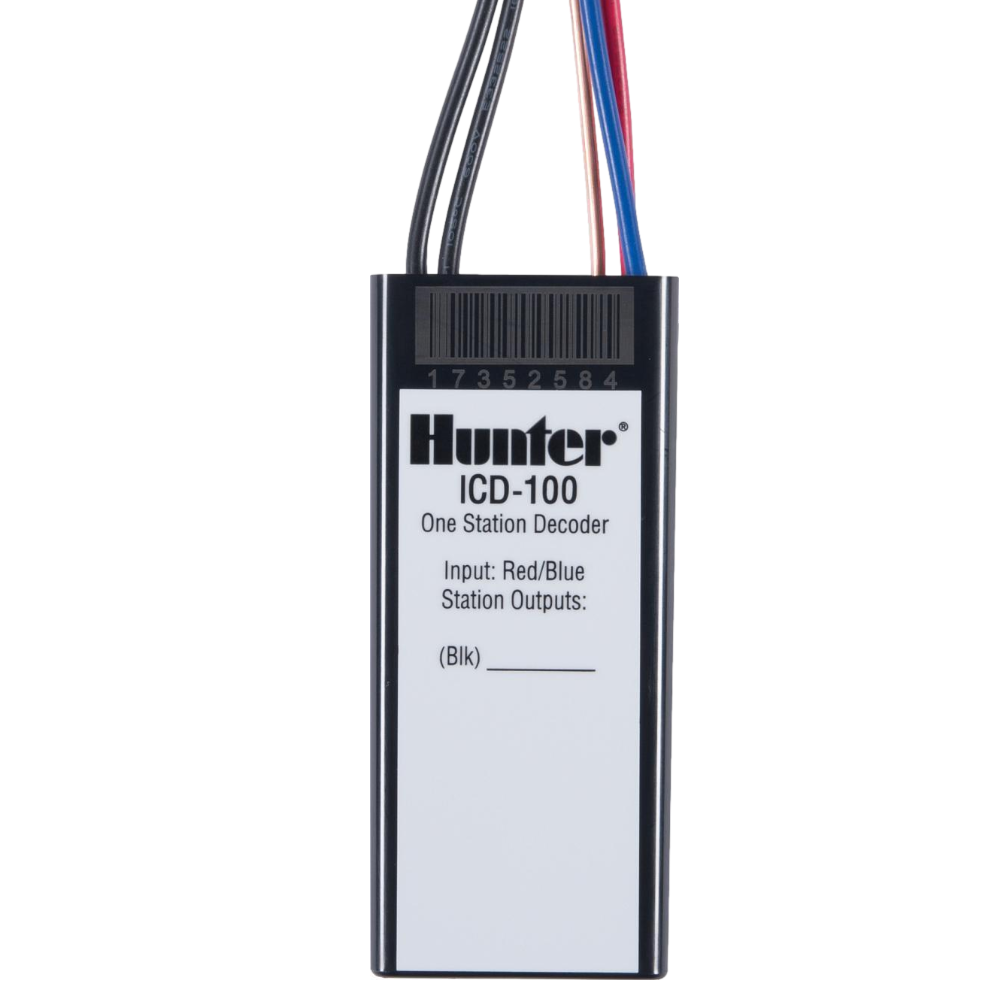

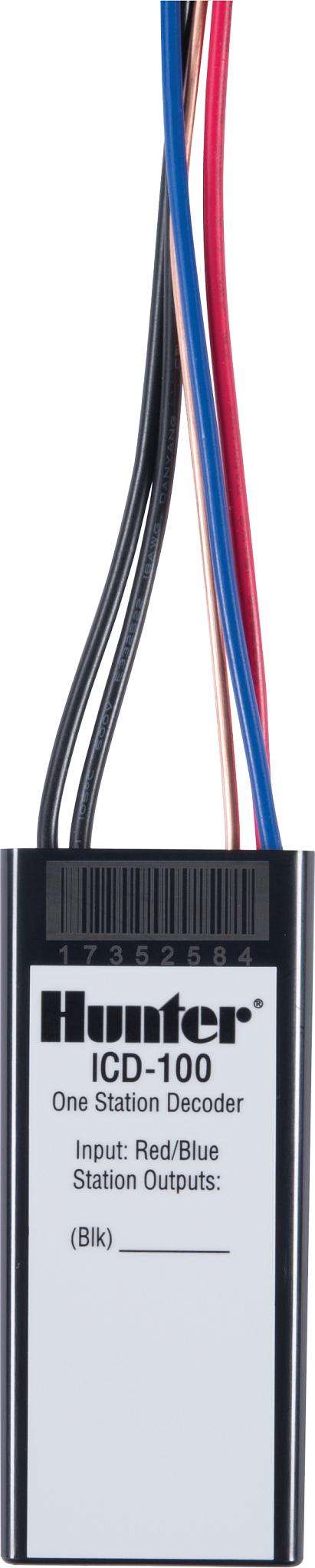

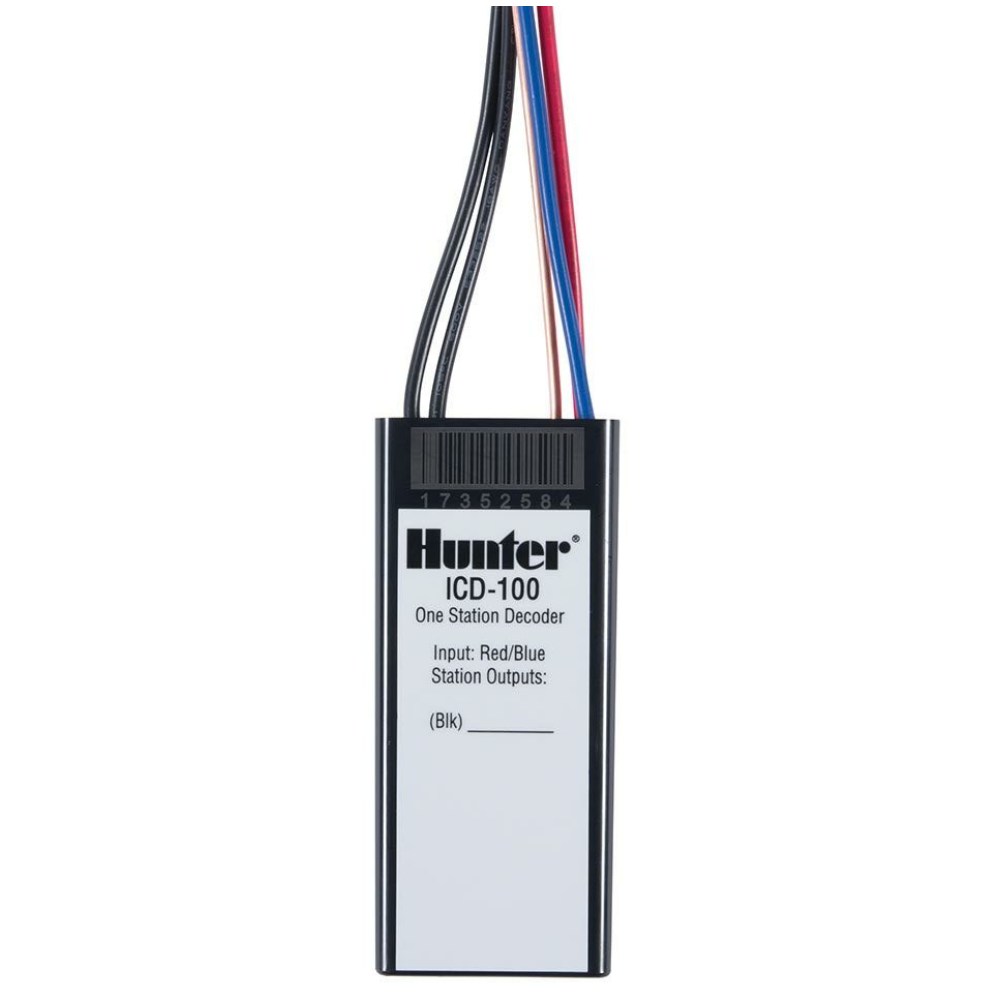

The HUNTER ICD100 is an ICD decoder designed for use with ACC and ACC2 controllers, providing one additional station. It adds advanced features and the benefits of a two-wire decoder system. It includes surge suppression and a ground wire for protection. The decoder is field programmable and supports two-way communications.
- Surge Suppression
- Ground Wire
- Two-way communications
- Field programmable decoders
- Dual pump/master valve outputs may be assigned to decoders
Product Highlights
The ICD100 is a single-station decoder compatible with Hunter ACC and ACC2 controllers. It supports long two-wire runs and provides integrated surge protection.
Product Information
Standard Information
-
Brand: HUNTER
-
Manufacturer Part Number: ICD100
-
Country of Origin: Mexico
Technical Specifications
-
Controller Power: AC
-
Field Valve Connection: Two-wire
-
Network Connection Type: None
-
Decoder station sizes available: 1, 2, 4, 6
-
Max distance to decoder,14 AWG wire path: 10,000 ft
-
Sensor decoder available with: Flow and Click inputs
-
Max distance to decoder, 12 AWG wire path: 15,000 ft
-
Max recommended distance, decoder to solenoid: 150 ft
-
Field programmable decoders: ICD-HP wireless handheld programmer compatible
-
Two-way communications: Surge suppression: Internal (ground wire included)
-
Number of wire paths: 6
-
Automatic daily weather-based scheduling: with optional Hunter Solar Sync sensor
-
Brand: Hunter
-
Maximum recommended distance, decoder to solenoid: 150'
-
Maximum distance to decoder via two-wire path (14 AWG wire path): 10,000'
-
Maximum distance to decoder via two-wire path (12 AWG wire path): 15,000'
-
Approvals: UL, cUL, FCC, CE, RCM
-
Decoder rating: IP68 submersible
-
Suitable for Use With: ACC Controllers
-

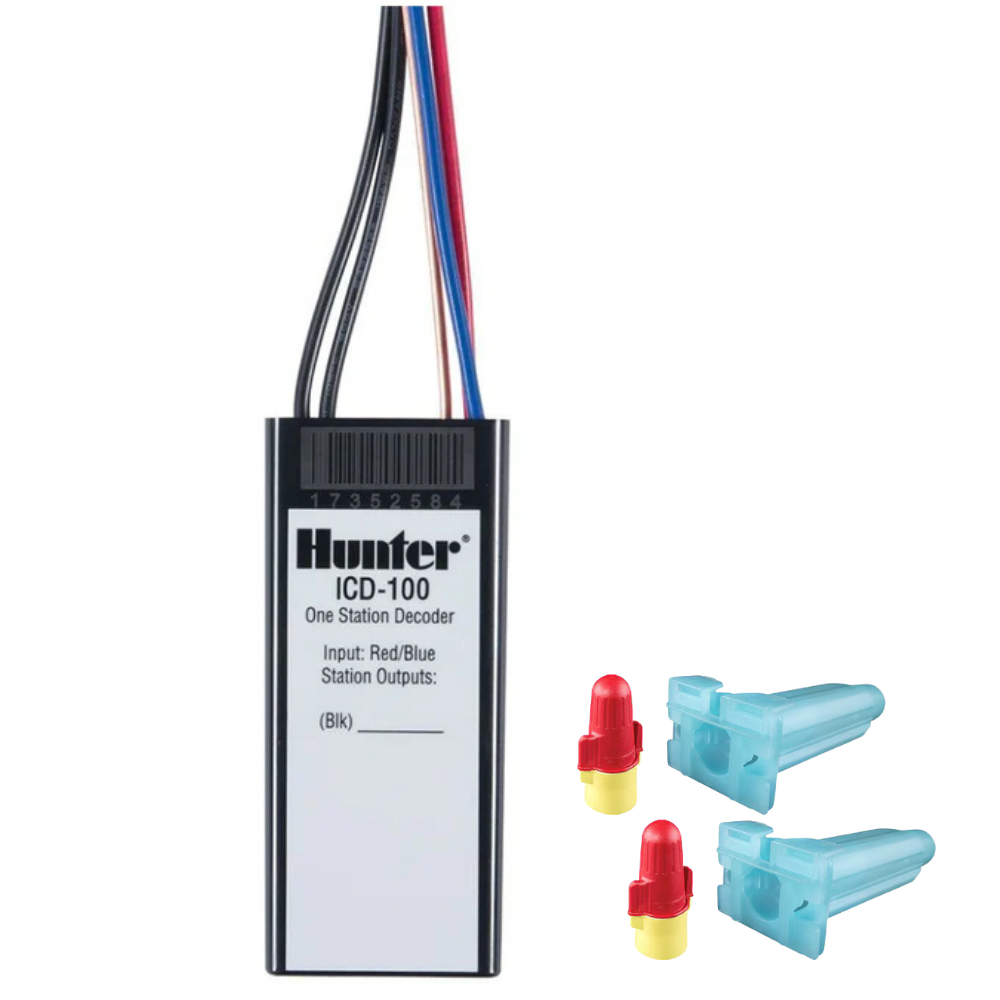

Includes: Surge Suppression & Ground Wire
-
Number of Stations: 1 Station
-
Height: 3-5/8 in.
-
Depth: 1/2 in.
-
Width: 1-1/2 in.
-
Regulated: No
-
Brand Name: Hunter
-
Country of Origin: Mexico
-
MPN: ICD-100
-
Type: Sprinkler Controller
-
Model: ICD-100
-
UPC: Does Not Apply
-
Product Type: Controller Modules
-
Station Expansion: 1
