Hunter IBV201GFS IBV Valve, 2 inches brass globe valve with flow control and filter sentry mechanism

Product Description

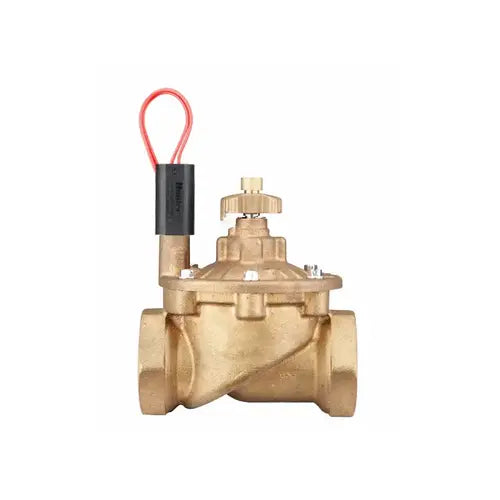

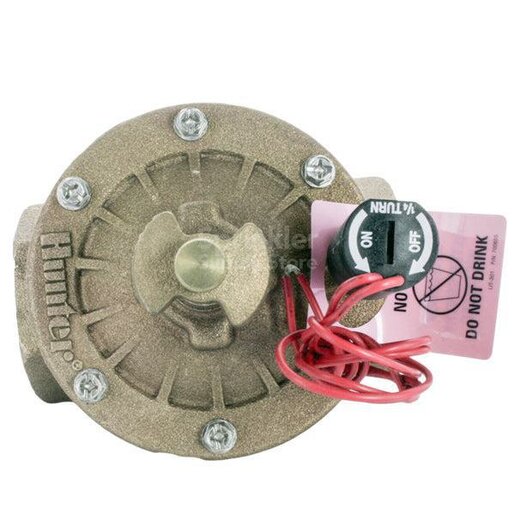

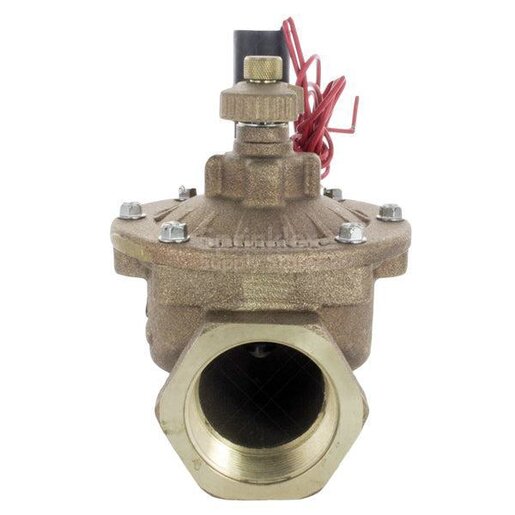

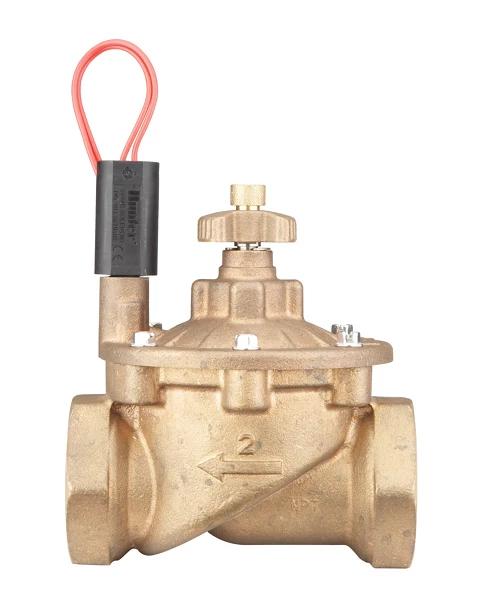

The HUNTER IBV201GFS is a 2" brass globe valve with flow control and a factory-installed Filter Sentry Mechanism. Constructed from solid brass, the Hunter IBV is designed for demanding commercial environments, handling up to 220 PSI. It incorporates industry-leading features found in Hunter valves, including the Accu-Sync pressure regulator and Filter Sentry system.

• The IBV incorporates many industry-leading features found in Hunter valves
• The Accu-Sync pressure regulator maintains constant downstream pressure
• The Filter Sentry system keeps the valve free of debris

Product Highlights

Durable brass globe valve with flow control and Filter Sentry, designed for reliable performance in commercial settings.

Product Information

Standard Information

• Brand: HUNTER
• Manufacturer Part Number: IBV201GFS
• Country of Origin: MEXICO

Technical Specifications

• Inlet Size: 2"
• Material: Brass
• Brand: Hunter
• Inlet Connection Size: 2 Inches
• Inlet Connection Type: Solder
• Outlet Connection Type: NPT
• Number of Ports: 1
• Outlet Connection Size: 2 Inches
• Specification Met: ANSI B16.11, ASME B16.34, ASTM, MSS SP 80
• Valve Type: Globe Valve
• Connection Type: Fipt
• Connection Size: 2 in.
• Body Material: Brass
• Type: In-Line
• Series: IBV Series
• Operating Type: Electric
• Flow Control: Yes
• InletSize: 2 in.
• Height: 6 in.
• Width: 7 in.
• Maximum Flow Rate: 200 GPM
• Voltage Rating: 24V
• Minimum Flow Rate: 40 GPM
• Inlet Connection: Fpt
• Pressure Rating: 20 PSI - 220 PSI
• Item: Electric Valve
• Minimum Operating Pressure: 20 PSI
• Maximum Operating Pressure: 220 PSI
• Maximum Working Temperature: 150 F
• Connection 2 Size: 2 in.
• Connection 2 Type: Fipt
• Regulated: No
• MPN: IBV201GFS
• Number of Items in Set: 1
