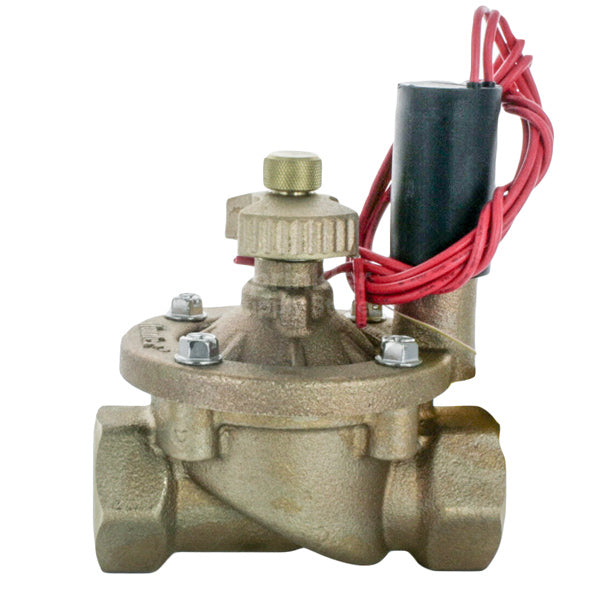

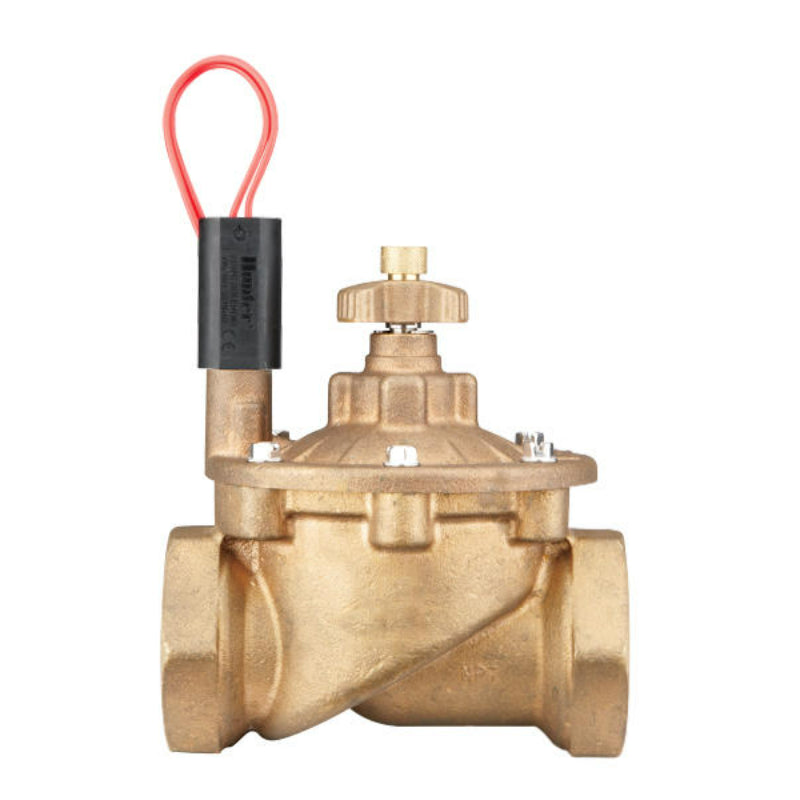

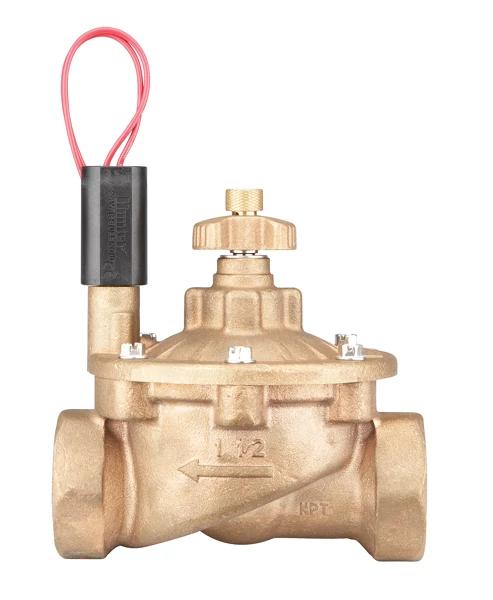

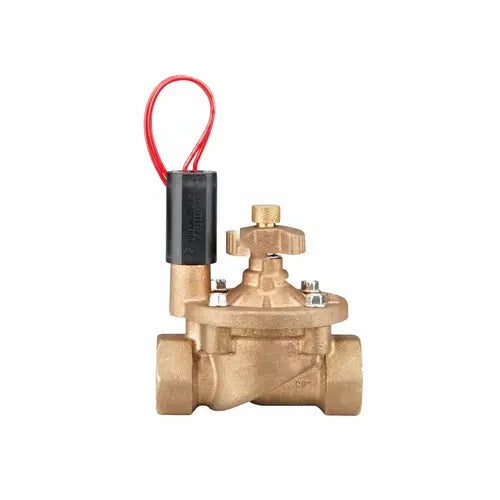

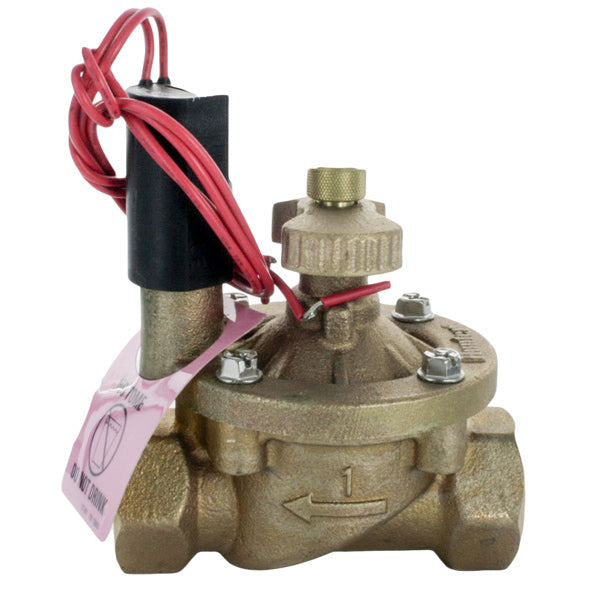

Hunter IBV101GFS IBV Valve 1 inches Brass Globe Valve with Filter Sentry Mechanism

Product Description

The HUNTER IBV101GFS is a commercial-grade 1" brass globe valve engineered for reliable performance in irrigation and reclaimed-water systems. Constructed from solid brass and fitted with a stainless steel flow-control stem, the IBV is built to resist corrosion and deliver stable service in demanding commercial installations.

• Solid brass body and bonnet for long-term reliability in varied water conditions.
• Integrated debris-screen system to help prevent clogging when using reclaimed or pond water.
• Built-in adjustable flow control with a stainless steel stem for precise regulation.

Product Highlights

The IBV101GFS combines industry-proven Hunter features with debris protection and precise flow control to reduce maintenance and extend valve life.

Product Information

Standard Information

• Brand: HUNTER
• Manufacturer Part Number: IBV101GFS

Technical Specifications

• Brand: Landscape Irrigation
• Product Line: Valves
• Product Model: IBV
• SKU: IBV101GFS
• Inlet Size: 1"
• Material: Brass
• Exterior Finish: Stainless Steel
• Inlet Connection Size: 1 Inches
• Inlet Connection Type: Compression
• Outlet Connection Type: NPT
• Number of Ports: 2
• Outlet Connection Size: 1 Inches
• Specification Met: MSS SP 80, ASTM, ASME B16.34, ASSE 1003, ANSI B16.11, ANSI B1.20.1, UL, CSA, UPC, FM, WaterSense
• Thread Type: NPT
• Valve Type: Globe Valve
• Item Weight: 1.2 Pounds
• Department: IRRIGATION
• Connection Type: Fipt
• Connection Size: 1 in.
• Body Material: Brass
• Type: In-Line
• Series: IBV Series
• Solenoid Type: 50/60 Hz Solenoid
• Operating Type: Electric
• Flow Control: Yes
• Maximum Flow Rate: 40 GPM
• Voltage Rating: 24V
• Minimum Flow Rate: 0.1 GPM
• Minimum Operating Pressure: 20 PSI
• Maximum Operating Pressure: 200 PSI
• Maximum Working Temperature: 150 F
• Connection 2 Size: 1 in.
• Connection 2 Type: Fipt
• Regulated: No
