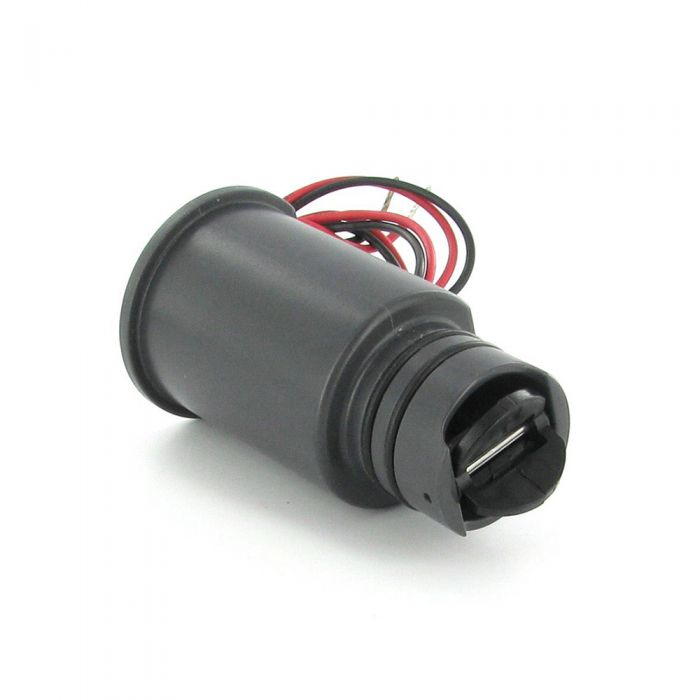

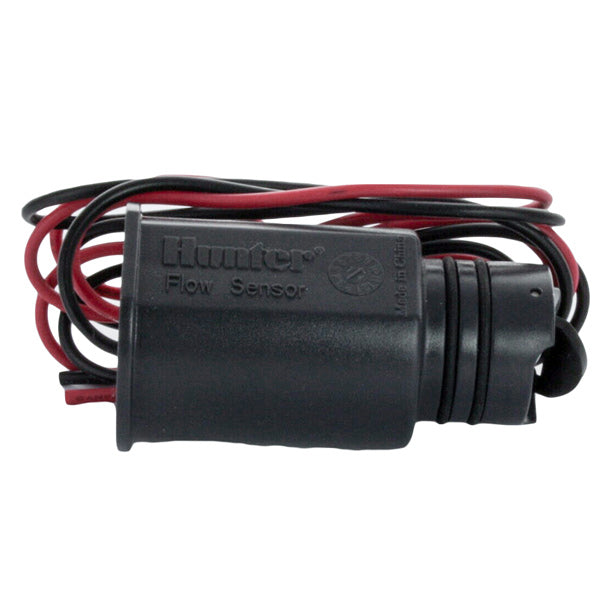

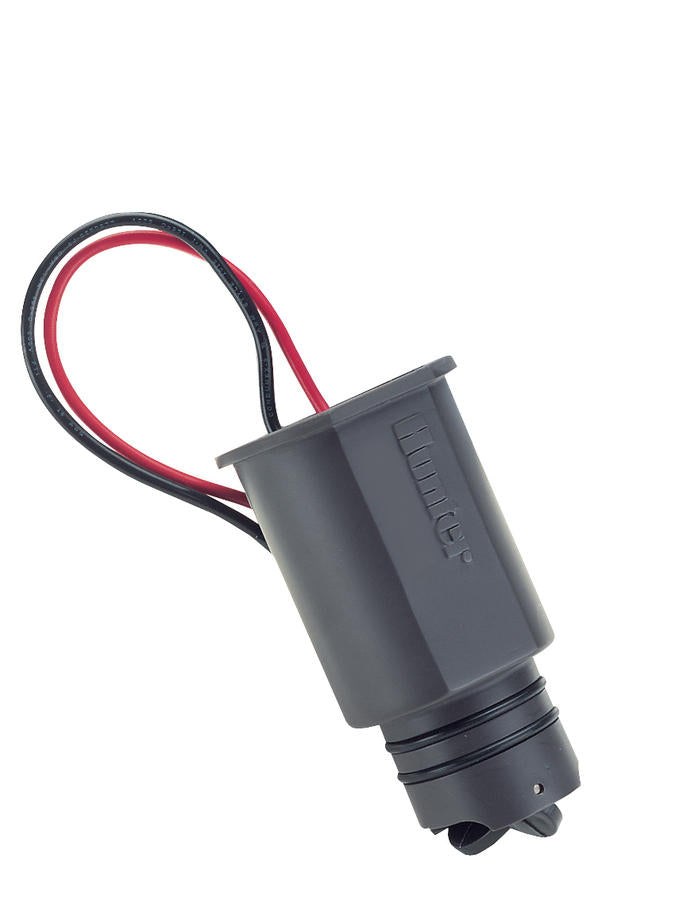

Hunter HFS Flow-Sync Sensor

Product Description

The Hunter HFS Flow-Sync Sensor is a simple and economical solution for metering and reacting to actual flow conditions. A proven water saver, the Hunter Flow Sync connects to the ACC and I-Core controllers to measure actual flow, and provides automatic reaction to high or low flow conditions during irrigation.

• Simple-insertion flow sensor for metering and reacting to real-time flow conditions
• Provides station-level flow monitoring for reaction to high- or low-flow conditions, helping to protect against flood damage and erosion
• Compatible with Hunter ACC2 and legacy ACC and I-Core Controllers, as well as ICD-SEN Sensor Decoders, for flexible installation in a variety of settings

Product Highlights

The Flow-Sync is designed for use on pipe sizes up to 4 inches. When installed in conjunction with a master valve, the HFS can be a key source in preventing water waste resulting from line breakage.

Product Information

Standard Information

• Brand: HUNTER
• Manufacturer Part Number: HFS

Technical Specifications

• Sensor Type: Flow
• Compatible Controllers: Hunter ACC2 and legacy ACC and I-Core Controllers, as well as ICD-SEN Sensor Decoders, ICC2 Controller via Centralus communication modules
• Easy Connection: Up to 1,000' from controller or sensor decoder
• Pre-calibrated: Sensor is pre-calibrated for K-factor and Offset based on pipe size
• Recommended pressure range: 0 to 220 PSI
• Pressure loss: < 1 PSI
• Sensor wiring: 2 x direct burial, 18 AWG or greater, color-coded or marked for polarity, up to 1,000' from the controller
• Sensor Connection: Wired
• Includes: (Tee NOT Included)
• Series: Flow Sync Series
• Type: Irrigation
• Material: PVC
• Power Source: Electric
• Item: Sensor
• Regulated: No
• Brand Name: Hunter
