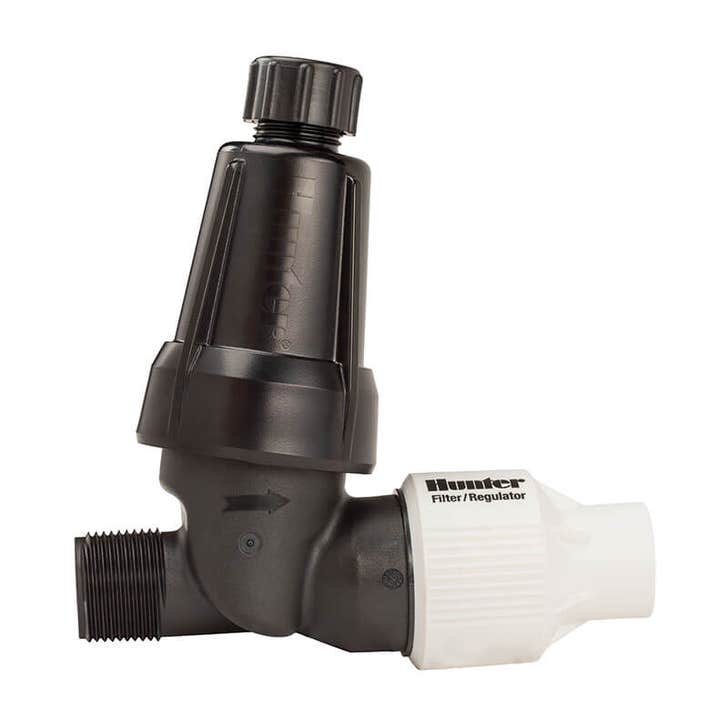

Hunter HFR-100-075-40 Filter 40 PSI 1 inches x 3/4 inches

Product Description

The HUNTER HFR-100-075-40 is a filter and pressure-regulating unit with 40 PSI regulation and 1" NPT inlet x 3/4" outlet. It combines a 150-mesh stainless steel screen with a regulator to deliver consistent performance. It protects downstream emitters from clogging and maintains consistent pressure at flows between 0.5 – 15 GPM.

• Filter
• Pressure-regulating
• 1" NPT inlet x 3/4" outlet

Product Highlights

This pre-assembled kit brings together both a filter and a pressure regulator, providing you with a complete assembly.

Product Information

Standard Information

• Brand: HUNTER
• Manufacturer Part Number: HFR-100-075-40
• Country of Origin: USA

Technical Specifications

• Inlet Size: 1"
• Pressure regulation: 40 PSI
• Flow: 0.5 to 15 GPM (30 GPH to 900 GPH)
• Operating pressure: 20 to 120 PSI
• Operating temperature: up to 120 F
• Screen: 150 mesh; 100 microns stainless steel screen
• Outlet: 1" inlet x 3/4" outlet
• Size: 3/4 inch
• Style: Micro
• Material: Stainless Steel
• Model Name: hfr10007525
• Power Source: Water Pressure-driven
• Special Features: Adjustable
• Control Type: Adjustable
• Fit Type: Standard Tubing Sizes
• Number of Sets: 1
• Flow range: 0.5–15 GPM (2–55 L/min)
• Connections: 1" NPT inlet × 3/4" NPT outlet
• Filtration: 150-mesh (≈100 μcm) stainless steel screen
• Operating range: 20–120 PSI; temperature up to 120°F (≈49°C)
• Brand: Hunter Industries
• Connection Size: 1" x 3/4" NPT
• Pressure Rating Range: 20 - 120 PSI
• Vendor Product Number: HFR-100-075-40
• MPN: HFR10007540
• Maximum Working Pressure: 40 psi
• Tubing Diameter: 1 in
• Item Height: 4 in
