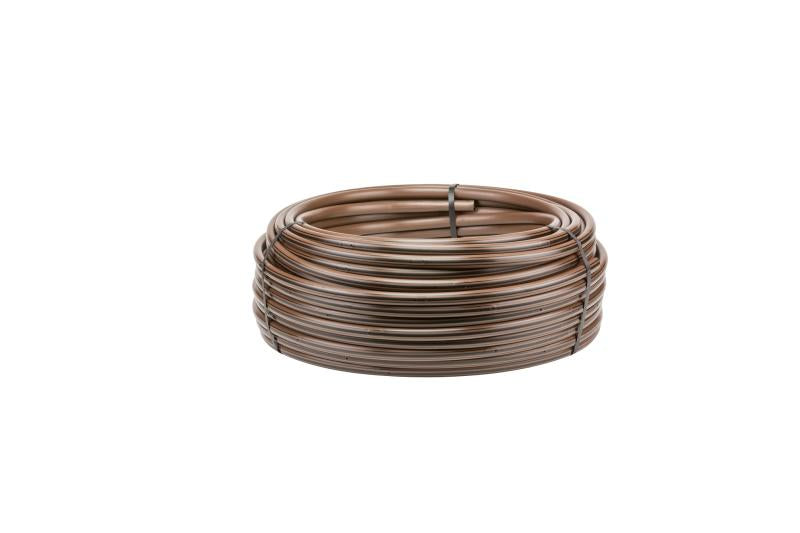

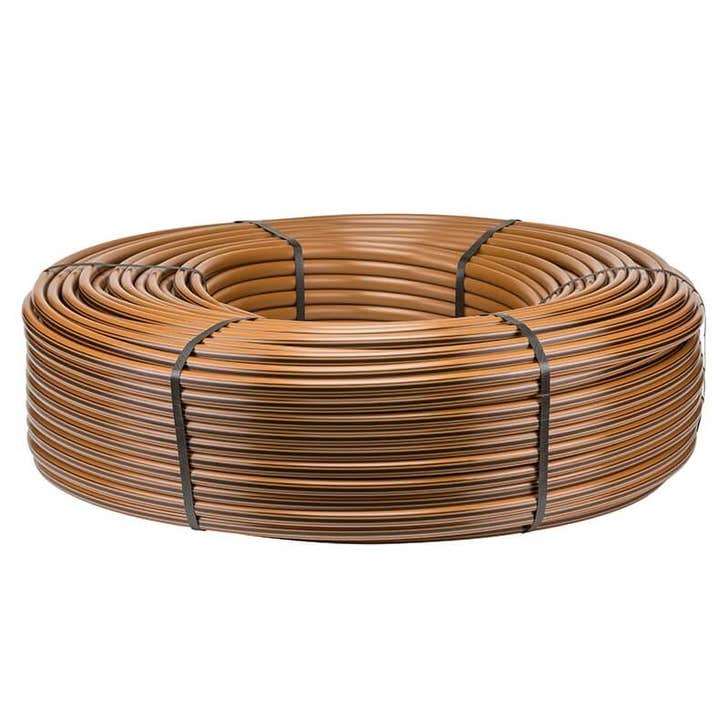

Hunter HDL-09-12-100-CV Dripline, Pressure-Compensating Check Valve, 0.9 GPH, 12 inches Spacing, 100 feet

Product Description

The HUNTER HDL-09-12-100-CV dripline is a pressure-compensating check valve with a flow rate of 0.9 GPH and 12" spacing, with a length of 100 . It is a high-efficiency, ultra-durable upgrade to PLD that is available in three pressure-compensating varieties to accommodate a range of drip system needs. Install HDL at grade or subsurface to effectively and precisely irrigate shrubs, gardens, turf, perennials, and trees.

• Pressure-compensating emitters
• Color-coded stripes to identify flow
• Flow rates of 0.4, 0.6, 0.9 GPH

Product Highlights

The dripline features pressure-compensating emitters, color-coded stripes, and a large internal diameter for easy installation and longer maximum runs.

Product Information

Standard Information

• Brand: HUNTER
• Manufacturer Part Number: HDL-09-12-100-CV

Technical Specifications

• Brand: Landscape Irrigation
• Product Line: Micro Irrigation
• Product Model: HDL
• SKU: HDL0912100CV
• Flow Rate: 0.9 GPH
• Coil Length: 100'
• Emitter Spacing: 12"
• Inline Irrigation: Drip irrigation
• Online Irrigation: Tubing
• Coil Size: 100'
• Inner Diameter: 0.56"
• Outer Diameter: 0.66"
• Pressure Rating Range: 10 - 60 PSI
• Recommended Spacing: 12"
• Series: HDL
• Wall Thickness: 0.05"
• Maximum Operating Pressure: 60 PSI
• Type: Check Valve
• Includes: Check Valve
• Item: Dripline
• Minimum Operating Pressure: 15 PSI
• Regulated: No
