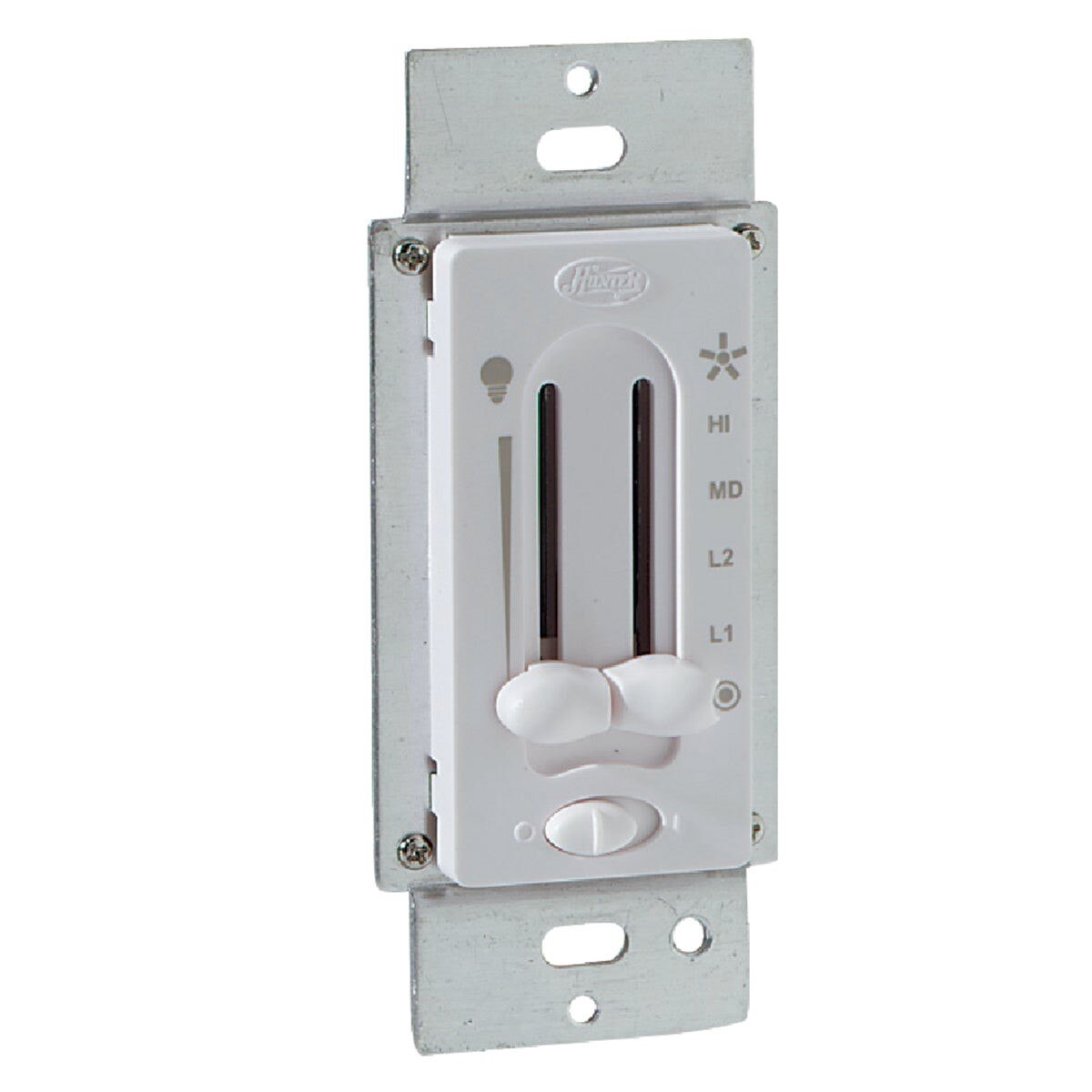

Hunter Fan 27183 Dual Slide Fan Speed Dimmer Control

Product Description

The HUNTER FAN 27183 is a wall-mounted dual slide control switch designed for ceiling fan speed and light dimming in residential applications. It provides four discrete fan speeds and full-range light dimming from a single-gang wall box installation. The preset feature allows the fan and light to be returned to a previously set operating level with one motion. Rated at 1.6 amps for the fan circuit and 300 watts for the light circuit, the 27183 is installed by licensed electricians or qualified HVAC and electrical service technicians handling ceiling fan retrofits and new installations.

This control is suited for residential ceiling fan installations where independent fan speed and light level adjustment is required from a single wall location. It installs in a standard 3-wire single-gang wall box configuration. The unit operates with all brands of ceiling fans, making it a practical replacement or upgrade control for a wide range of existing ceiling fan installations. Rocker switch plate is not included and must be sourced separately. The white finish coordinates with standard residential trim plates.

Key Features

• Four fan speed settings via dedicated slide control
• Full-range light dimmer on separate slide for independent light level adjustment
• Preset feature returns fan and light to desired operating settings
• Rated 1.6 amps fan load and 300 watts light load
• Compatible with all brands of ceiling fans
• Installs in standard 3-wire single-gang wall box
• 1-year manufacturer warranty

Compatibility

Designed to operate with all brands of ceiling fans in standard 3-wire single-gang wall box installations. Fan circuit rated at 1.6 amps maximum. Light circuit rated at 300 watts maximum.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Shut off circuit power at the breaker panel and verify absence of voltage before beginning any wiring work. This control requires a 3-wire hookup in a single-gang wall box — confirm existing wiring configuration before installation. The rocker switch plate is not included and must be installed separately to complete the wall finish.

Technical Specifications

• Fan Speed Settings: 4
• Fan Load Rating: 1.6 amps
• Light Load Rating: 300 watts
• Wiring Configuration: 3-wire single-gang wall box
• Color: White
• Weight: 0.522 pounds
• Warranty: 1 year

Standard Information

• Brand: HUNTER FAN
• Manufacturer Part Number: 27183
