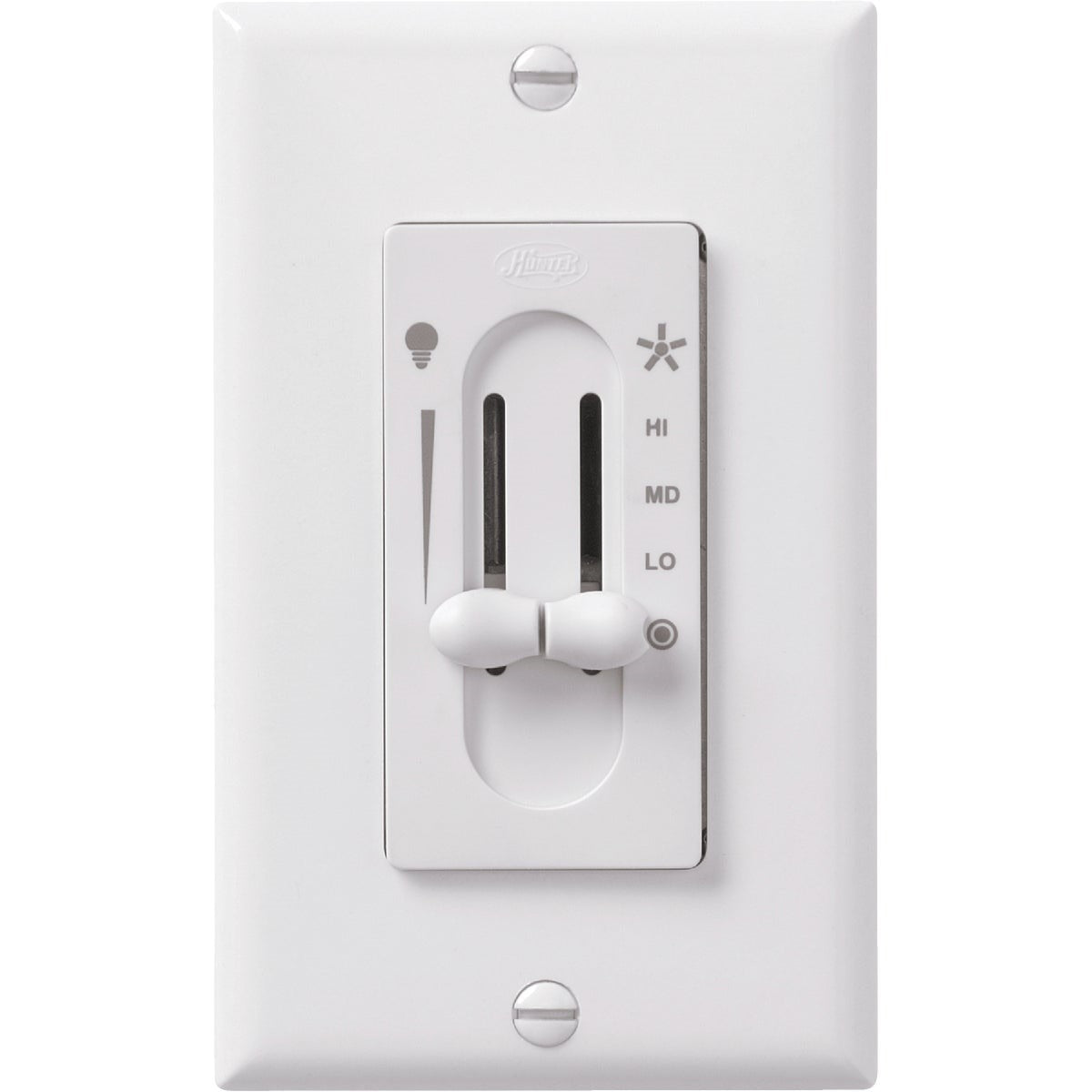

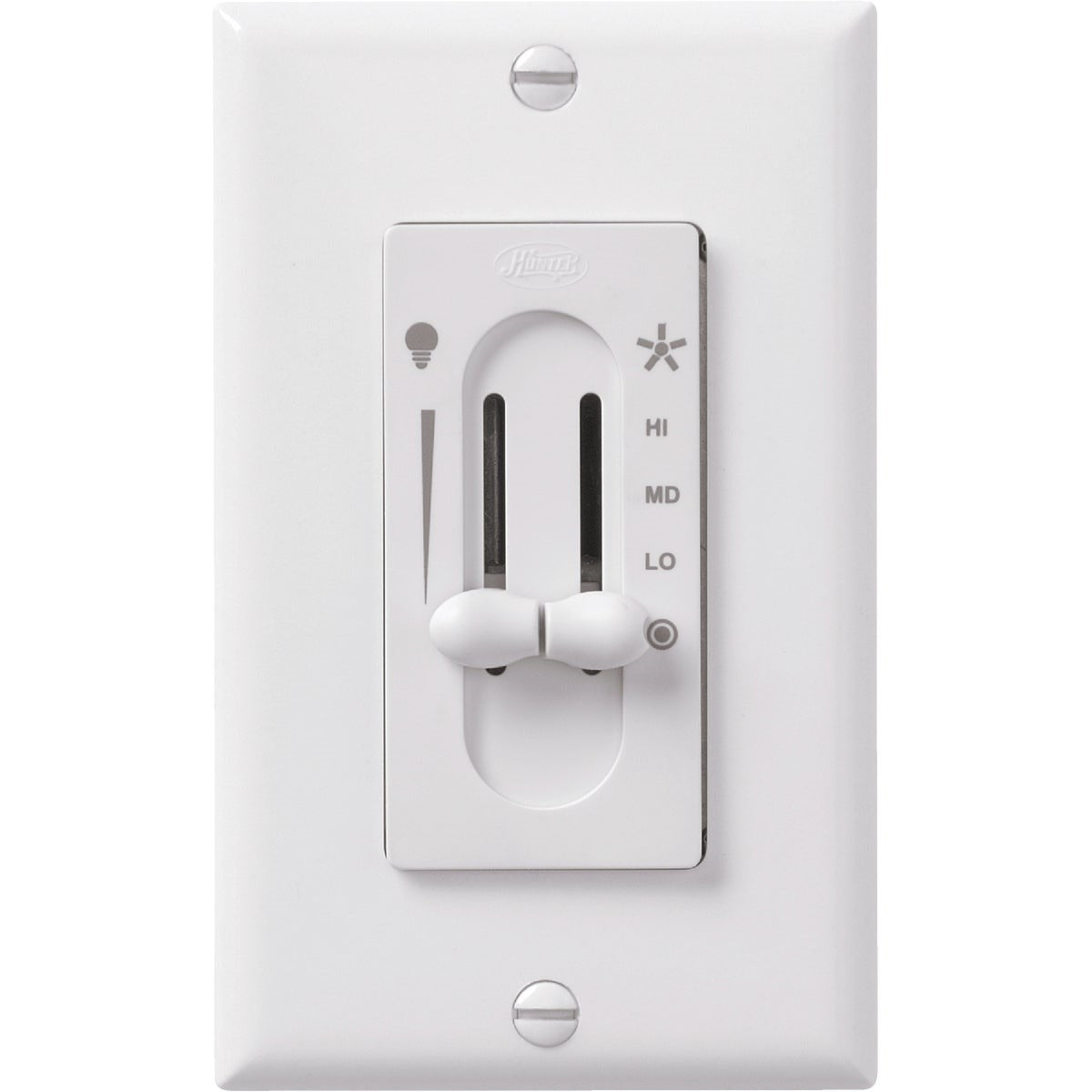

Hunter Fan 27182 Dual Slide Fan Light Control Switch

Product Description

The HUNTER FAN 27182 is a wall-mounted dual slide control switch designed to manage both fan speed and light intensity from a single gang location. One slide provides three discrete fan speeds while the second slide delivers full-range light dimming. Rated at 1.6 amps for the fan circuit and 300 watts for the light circuit, the 27182 fits a standard 3-wire single gang wall box. The white finish coordinates with common residential wall plates. Installation is performed by a licensed electrician following applicable NEC guidelines. A 1-year limited warranty is included.

The 27182 is suited for residential ceiling fan installations where independent fan speed and light level control are required from one wall location. Because the unit operates all brands of ceiling fans, it works well as a universal replacement control in existing installations or as an original-fit switch in new construction. The switch installs in a standard 3-wire single gang wall box. Note that a rocker switch plate is not included and must be sourced separately to complete the installation.

Key Features

• Dual slide design controls fan speed and light dimming independently from a single switch
• Three discrete fan speed settings for precise airflow control
• Full-range light dimmer for continuous brightness adjustment
• Rated 1.6 amps fan load and 300 watts light load
• Fits standard 3-wire single gang wall box
• Compatible with all brands of ceiling fans
• White finish; rocker switch plate not included

Compatibility

Designed to operate all brands of ceiling fans. Installs in a standard 3-wire single gang wall box. Rocker switch plate not included.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). Shut off power at the circuit breaker and verify the circuit is de-energized with a non-contact voltage tester before beginning work. The switch requires a 3-wire single gang wall box; confirm wiring configuration before installation. Do not exceed the rated 1.6-amp fan load or 300-watt light load.

Technical Specifications

• Fan Speed Settings: 3
• Light Control Type: Full range dimmer
• Fan Load Rating: 1.6 amps
• Light Load Rating: 300 watts
• Wiring Requirement: 3-wire single gang wall box
• Color: White
• Weight: 0.51 pounds
• Warranty: 1-year limited
• UPC: 00049694271822

Standard Information

• Brand: HUNTER FAN
• Manufacturer Part Number: 27182
