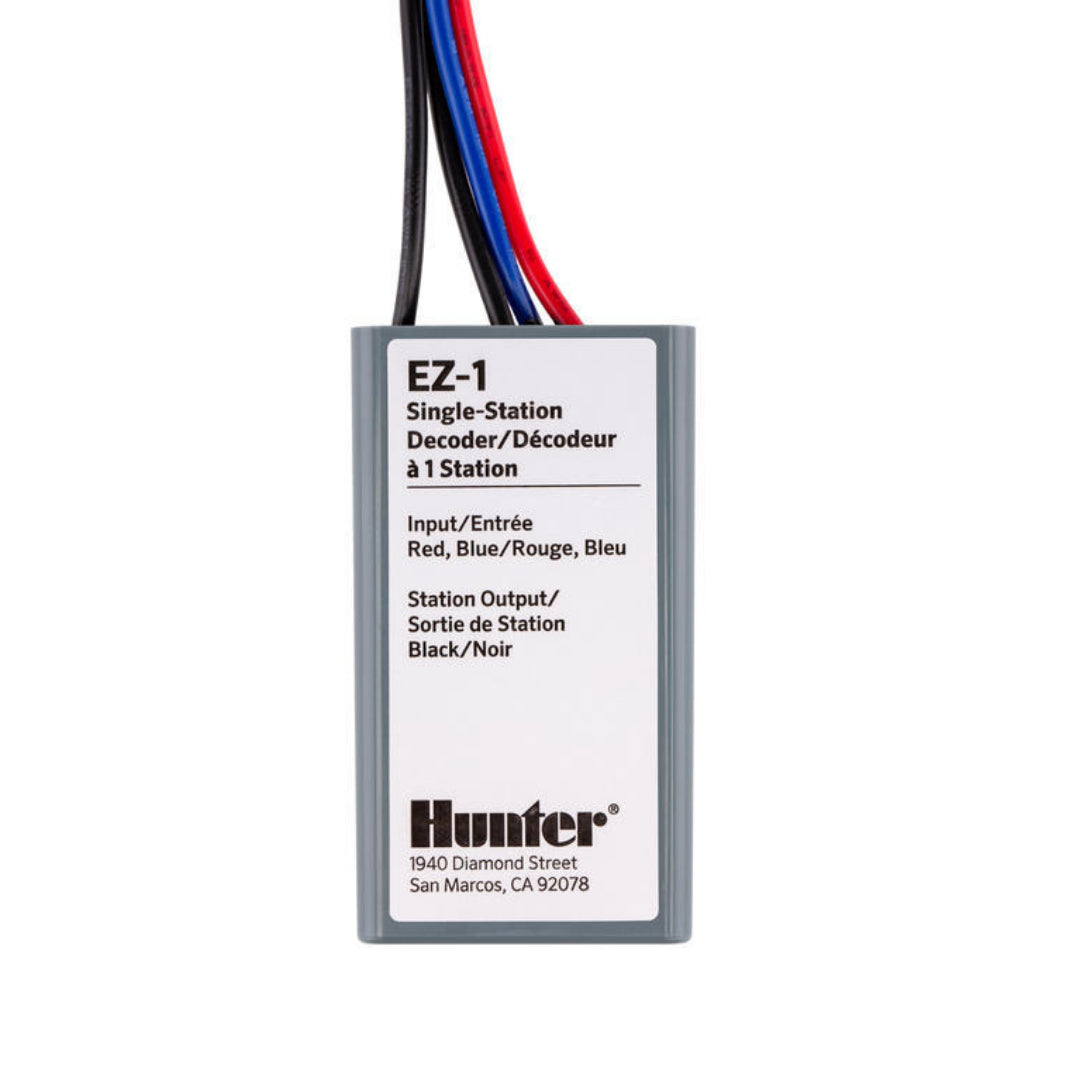

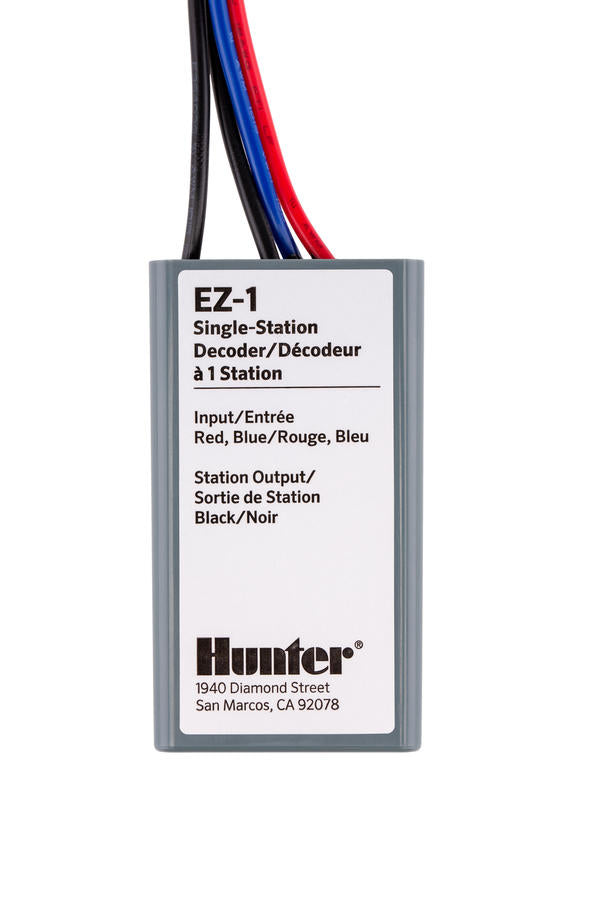

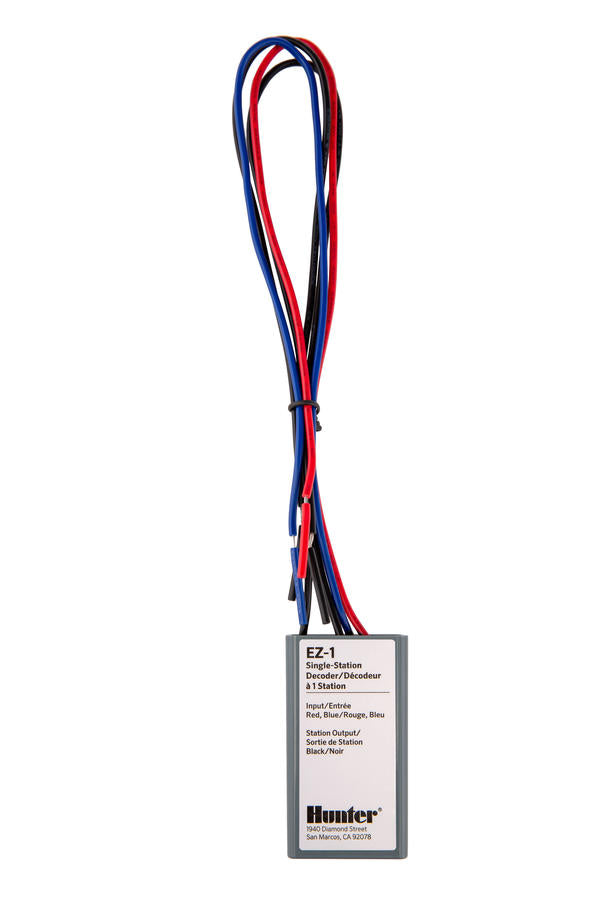

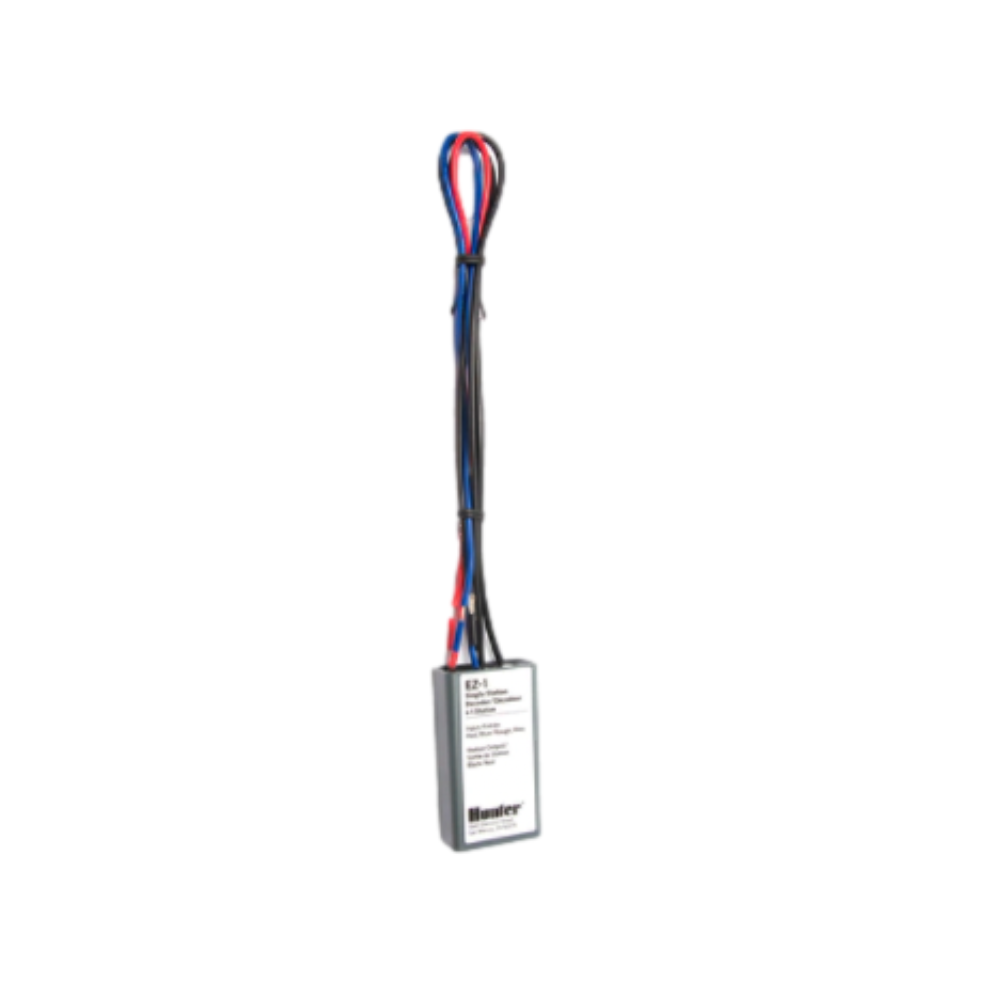

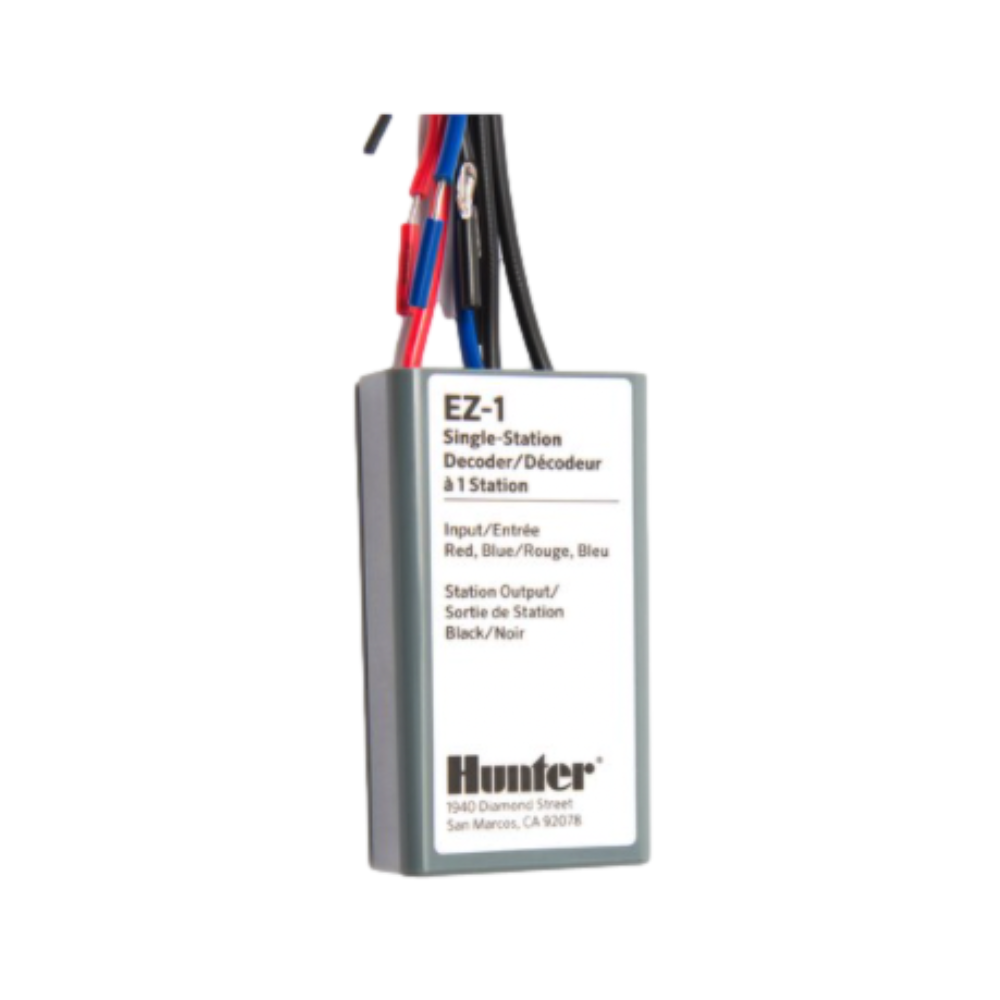

Hunter EZ-1 Single-Station EZ Decoder with Status LED

Product Description

The HUNTER EZ-1 is a single-station EZ Decoder with a status LED, designed for use with HPC, HCC, ICC2, and Pro-C Controllers. It is small, waterproof, and features color-coded wiring. The decoder allows hybrid functionality of both direct-wired valves and decoder operations in the same controller.

• Compatible with HPC, HCC, ICC2, and Pro-C controllers
• Features a built-in status LED for diagnostics
• Allows hybrid operations of conventional and decoder stations

Product Highlights

The EZ-1 decoder simplifies conversion to two-wire control and integrates seamlessly with hybrid conventional/decoder systems. It reduces wiring complexity and extends control to distant valves.

Product Information

Standard Information

• Brand: HUNTER
• Manufacturer Part Number: EZ-1

Technical Specifications

• Field Valve Connection: Two-wire
• Flow: Without Flow
• Network Connection Type: None
• Electrical output on two-wire path: 24 VAC, 50/60 Hz
• Wire paths possible: over 3,000'
• Solenoid activation: Each EZ-1 decoder has the capability to activate two standard 24 VAC solenoids
• Simultaneous operation: Can operate any two decoders simultaneously for more efficient watering
• Approvals: UL, cUL, FCC, CE, RCM, Industry Canada
• Rating: EZ-1 decoders are IP68 rated, submersible
• Brand: Hunter Industries
• Application Type: Commercial
• Enclosure Rating: IP68 (submersible)
