Hunter ACZ10125 Drip Control Zone Kit 1 inches PGV-ASV 25 PSI

Product Description

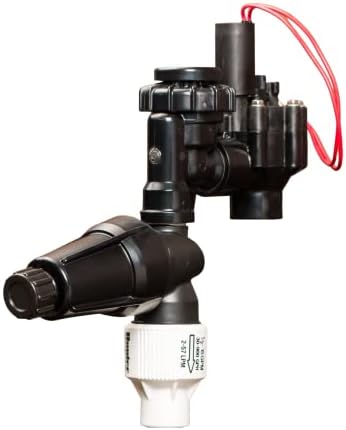

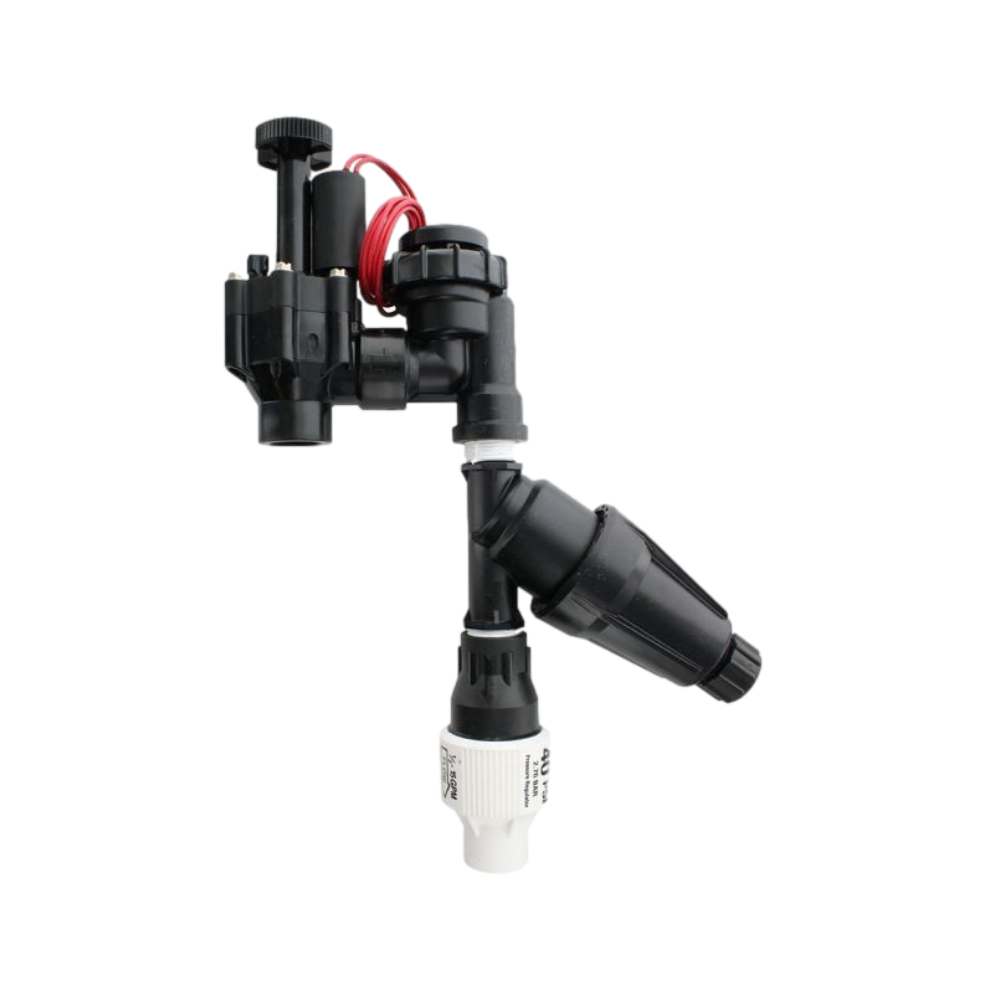

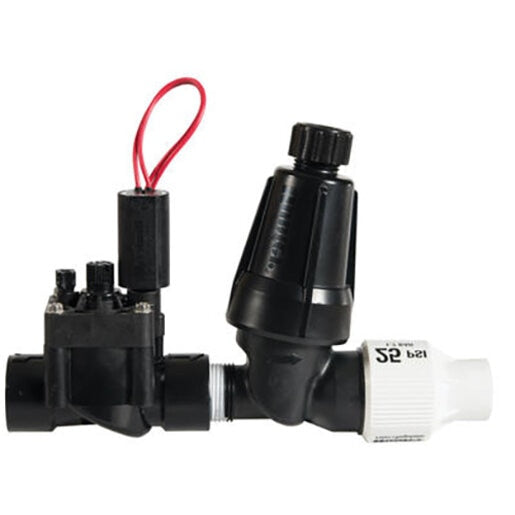

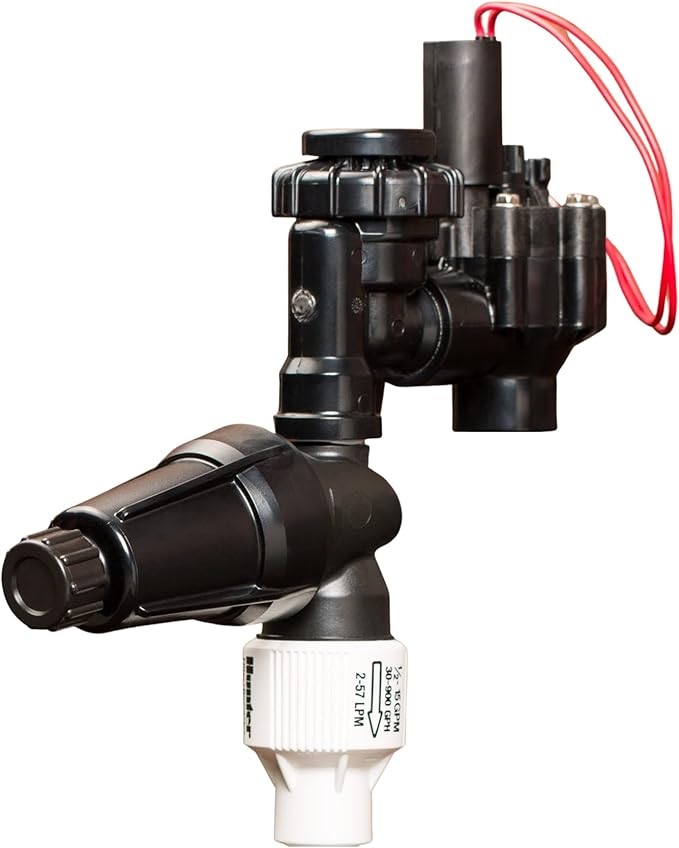

The HUNTER ACZ10125 is a factory-assembled drip control zone kit that pairs a 1" PGV-ASV anti-siphon valve with a stainless-steel 150-mesh filter and a precision pressure regulator. Built for fast installation and dependable operation, this kit delivers consistent downstream pressure for drip and micro-irrigation systems.

• Factory-assembled and water-tested for quick installation and reliable performance.
• 1" PGV-ASV anti-siphon valve with glass-reinforced nylon bonnet for long service life.
• 150-mesh (100 micron) stainless-steel screen with flush cap for easy debris removal.

Product Highlights

Ideal for residential and commercial micro-irrigation where reliable pressure regulation and filtration are required. The ACZ-101 saves installation time and protects downstream emitters from debris and excess pressure.

Product Information

Standard Information

• Brand: HUNTER
• Manufacturer Part Number: ACZ10125

Technical Specifications

• Valve: 1" PGV-ASV anti-siphon valve with glass-reinforced nylon bonnet
• Filter: 150-mesh (100 micron) stainless-steel screen with flush cap
• Pressure Regulator: Senninger HFR filter-regulator assembly providing accurate pressure regulation at 25 PSI (also available in 40 PSI)
• Flow Range: 0.5–15 GPM (30–900 GPH)
• Operating Pressure: 20–120 PSI
• Maximum Temperature: 120 °F
• Inlet/Outlet Configuration: 1" inlet × 3/4" outlet
• Solenoid: Standard 24 VAC
• Flow: 0.5 to 15 GPM (30 to 900 GPH)
• Operating pressure: 20 to 120 PSI
• Includes: Pressure Regulator
• Inlet/Outlet: 1" Inlet 3/4" Outlet
• Connection Type: Npt
• Connection Size: 1 in. x 3/4 in.
• Mesh Size: 150 Mesh
• Regulating Pressure: 25 PSI
• Item: Control Zone
• Type: Low-Flow
• Regulated: No
• Brand Name: Hunter
