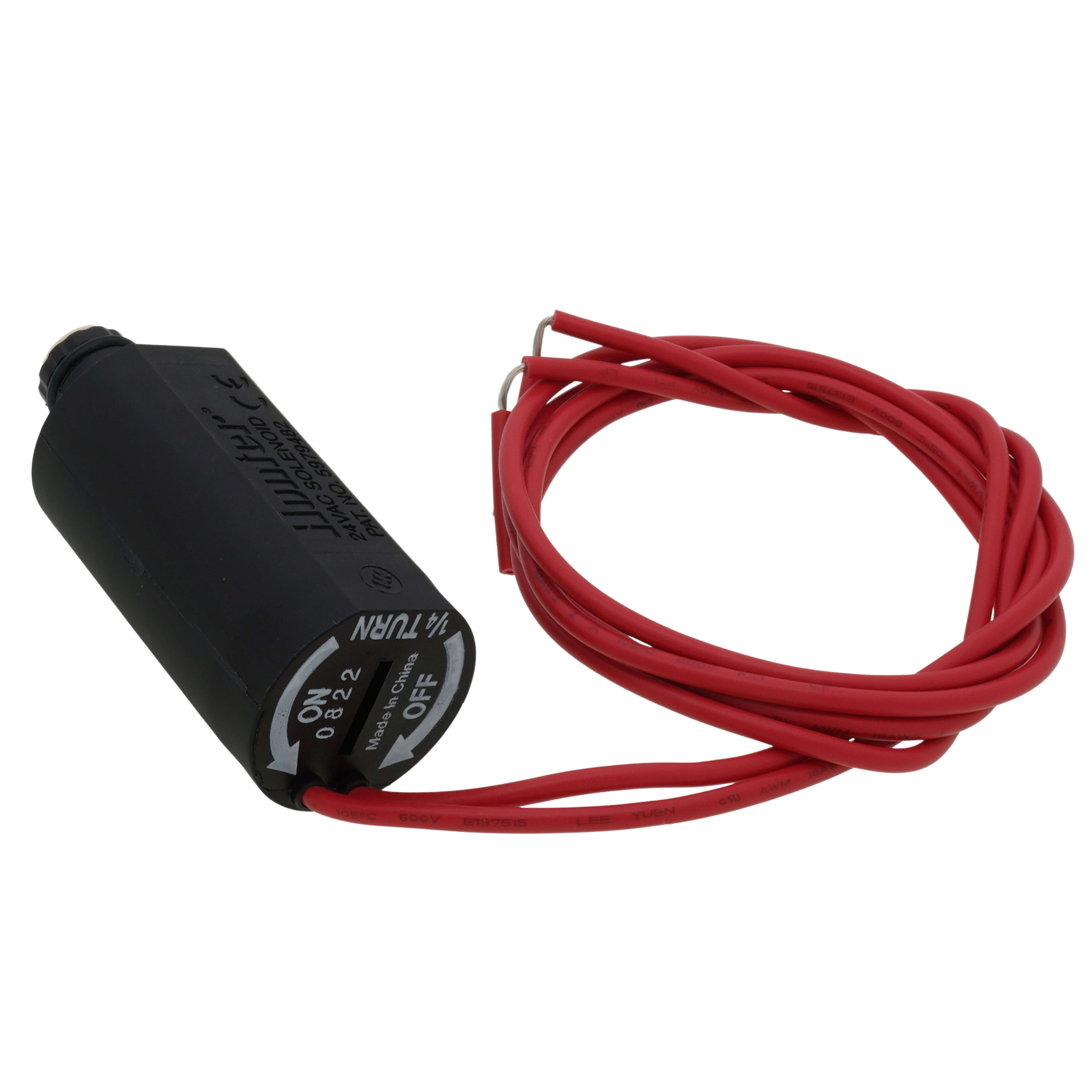

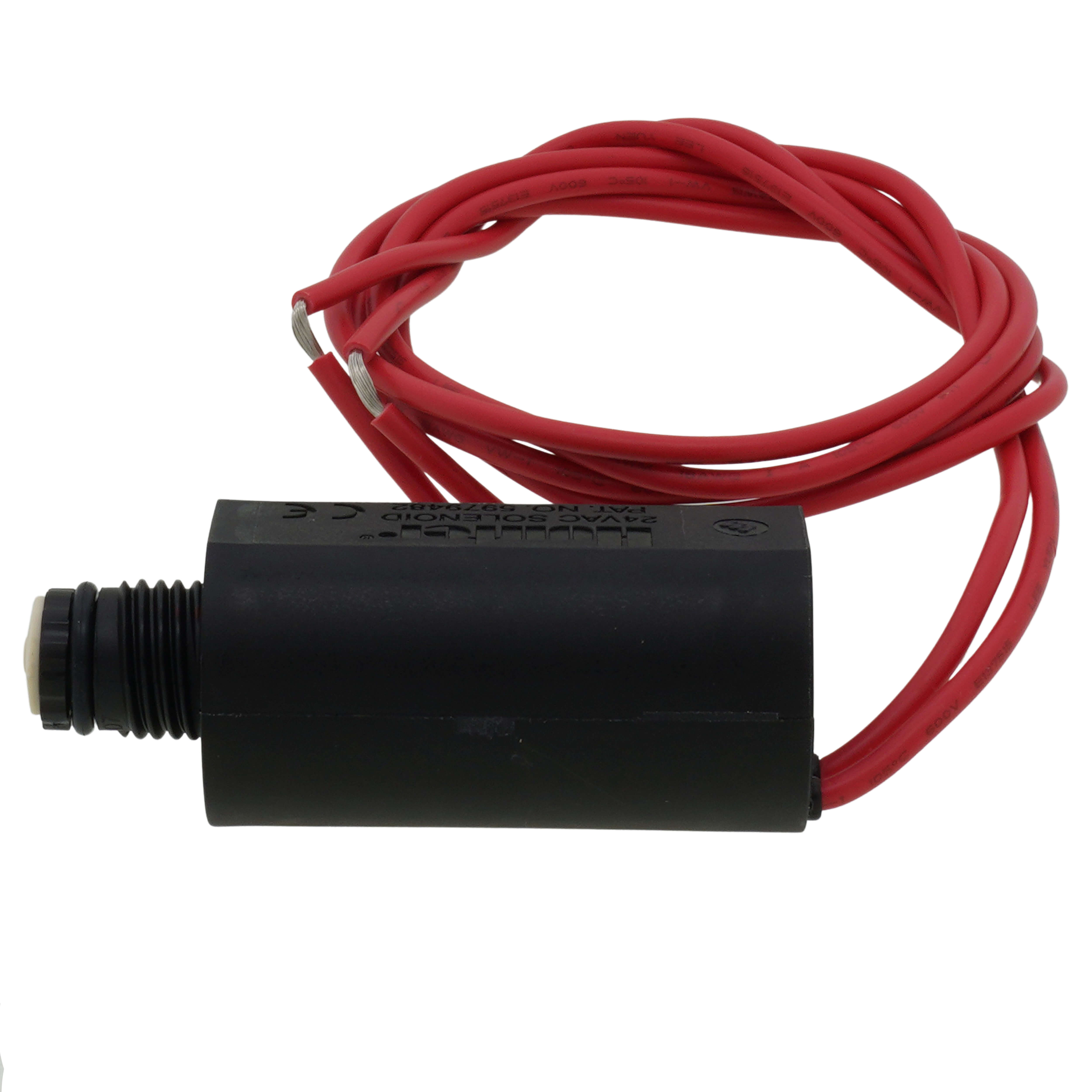

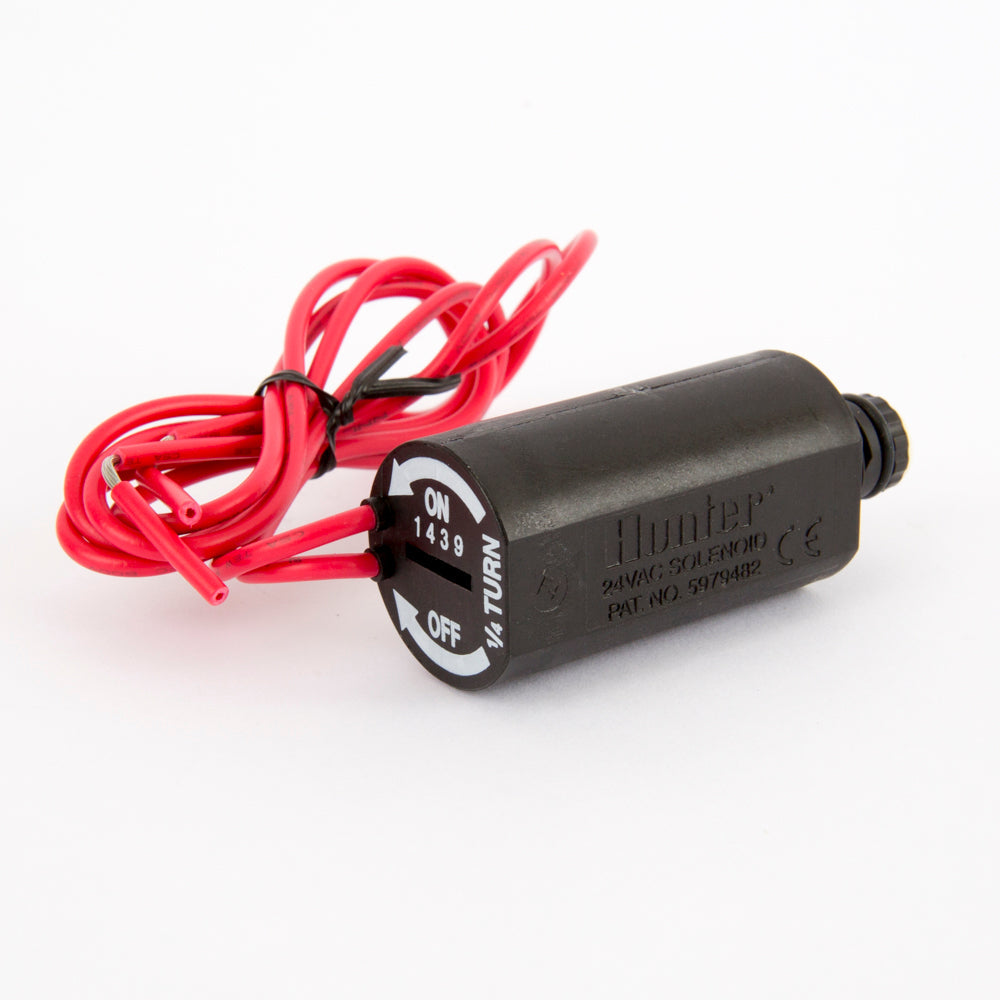

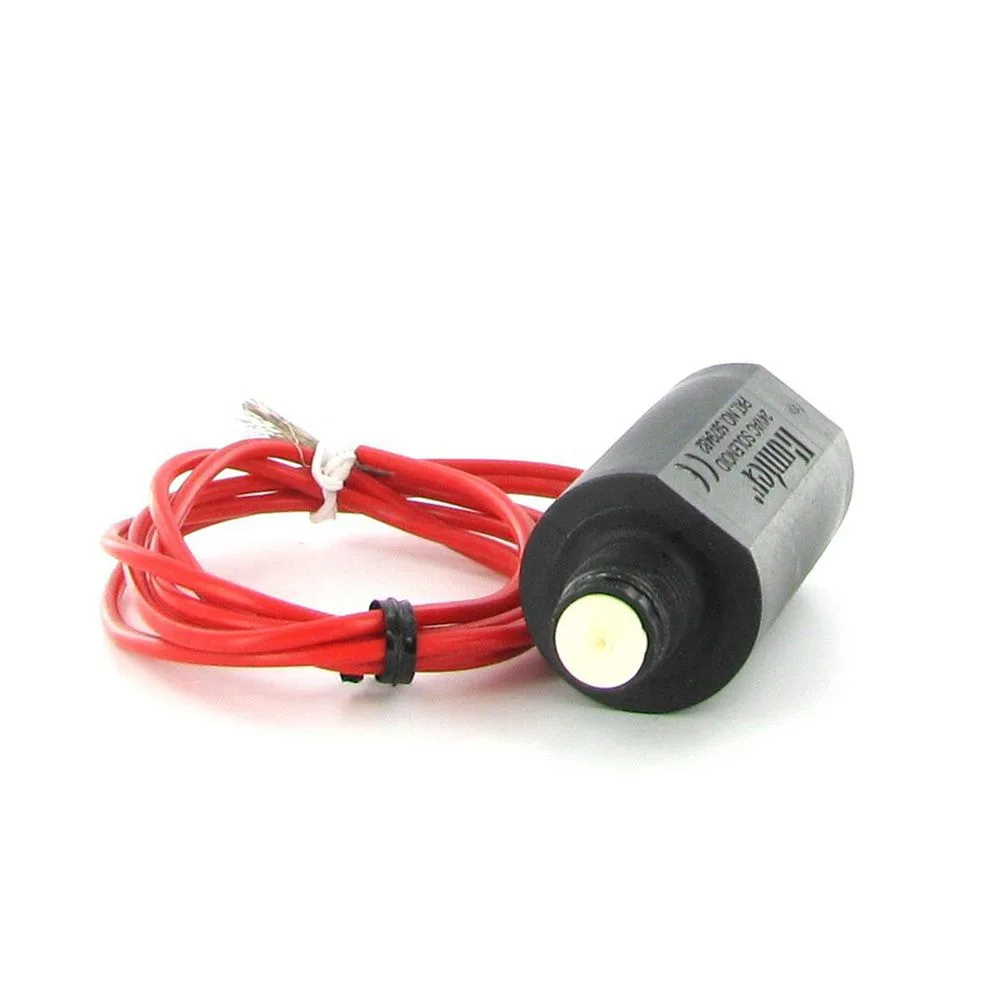

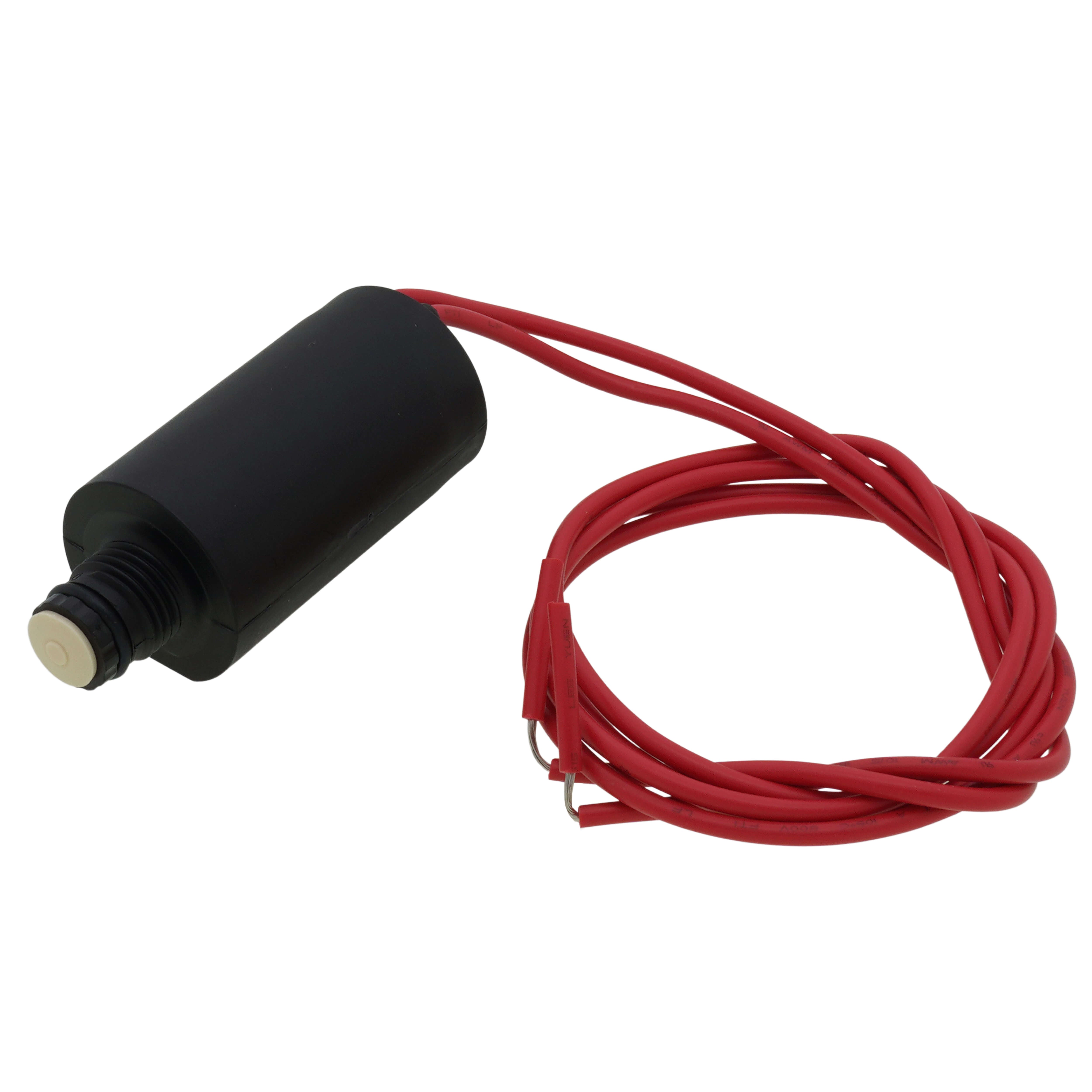

Hunter 606800 24 VAC Replacement Solenoid for Hunter Valves

Product Description

The HUNTER 606800 24 VAC Replacement Solenoid features an encapsulated design that completely seals the electronic components in heavy-duty plastic. The captured plunger simplifies servicing by reducing the risk of lost internal parts. Compatible with all Hunter irrigation valves. Energy-efficient, low-power design.

• Compatible with all Hunter irrigation valves
• Energy-efficient, low-power design
• Engineered with ultra-durable, heavy-duty materials for maximum longevity

Product Highlights

Stops water intrusion and protects critical electrical components. Pre-wired with 18" of valve-control wire. Captive plunger offers easy servicing of solenoid. Manual quarter-turn on/off control.

Product Information

Standard Information

• Brand: HUNTER
• Manufacturer Part Number: 606800
• Country of Origin: US

Technical Specifications

• Voltage [Features]: 24 VAC
• Wire Size [Features]: 18 AWG
• Product Type [Features]: Solenoid Coil
• Depth (Inches) [Features]: 1"
• Width (Inches) [Features]: 1"
• Height (Inches) [Features]: 2.75"
• Brand: Landscape Irrigation
• Product Line: Valves
• Product Model: Solenoids
• SKU: 606800
• Electrical Specifications: Minimum opening/operating voltage: 19 VAC Maximum recommended voltage: 28 VAC Current at 24 VAC: 350 mA inrush, 190 mA holding, 60 Hz 370 mA inrush, 210 mA holding, 50 Hz Maximum operating pressure: 220 PSI Wire leads: 18'' of 18 AWG UL-approved wire
• Type: Electric
• Manufacturer: Hunter
• Number of Outlets: 1
• Material: Plastic
• Features: Electric
• MPN: 606800
• Finish: Matte
• Suitable For: Sprinkler
• Mfr. Name: HUNTER INDUSTRIES
• UPC: 052063058214
• APR Part #: 2021758
