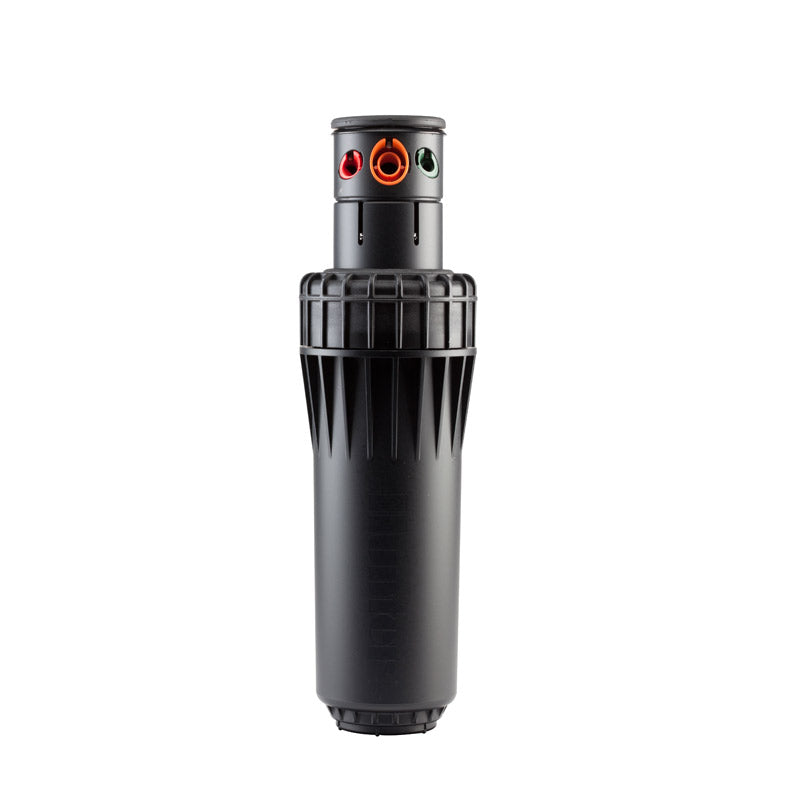

Hunter 44004810 3 Inch Full Circle Pop-up Rotor

Product Description

The HUNTER 44004810 is the I-90 full-circle pop-up rotor, engineered for long-distance irrigation of natural turf in parks, sports fields, and public open areas. Built from ABS plastic in a 3-inch body size, this rotor delivers a throw radius of up to 101 feet, the longest range available in the natural turf rotor category. Its reduced-diameter profile and cushioned rubber cover keep the unit low-profile and impact-resistant, making it well suited for high-traffic turf environments. Landscape irrigation contractors and groundskeeping crews install this rotor where wide, uniform coverage is the primary requirement.

This full-circle opposing-nozzle model is designed for parks, wide-open lawn areas, perimeter watering of athletic fields, and horse arenas. The jar-top body cap provides tool-free access to the internal filter screen and check valve, simplifying in-field service without removing the head from the ground. Color-coded nozzles are field-changeable to match site-specific flow and radius requirements. The I-90 is available in both full-circle and adjustable-arc configurations to accommodate varied layout needs on large sites.

Key Features

• Up to 101-foot throw radius for maximum large-area coverage
• Full-circle opposing-nozzle design delivers uniform distribution
• Cushioned rubber cover protects the head in high-traffic turf environments
• Jar-top body cap allows tool-free access to filter screen and check valve
• Color-coded, field-changeable nozzles for on-site radius and flow adjustment
• ABS construction in a reduced-diameter 3-inch body

Compatibility

Designed for large-site natural turf irrigation systems including parks, sports fields, athletic field perimeters, and horse arenas. Compatible with standard commercial irrigation mainline systems requiring long-throw rotor heads.

Installation Notes

Installation of commercial rotor heads should be performed by a licensed irrigation contractor in accordance with local plumbing and irrigation codes. Shut off system water supply and relieve line pressure before removing or replacing any head. Set rotor depth so the top of the body cap sits flush with the turf surface to prevent mowing damage. Verify system operating pressure falls within the rotor's rated range before commissioning the zone.

Technical Specifications

• Body Size: 3 inches
• Maximum Throw Radius: 101 feet
• Coverage Pattern: Full circle
• Primary Material: ABS
• Primary Color: Black
• Spray Flow Control: No

Standard Information

• Brand: HUNTER
• Manufacturer Part Number: 44004810
