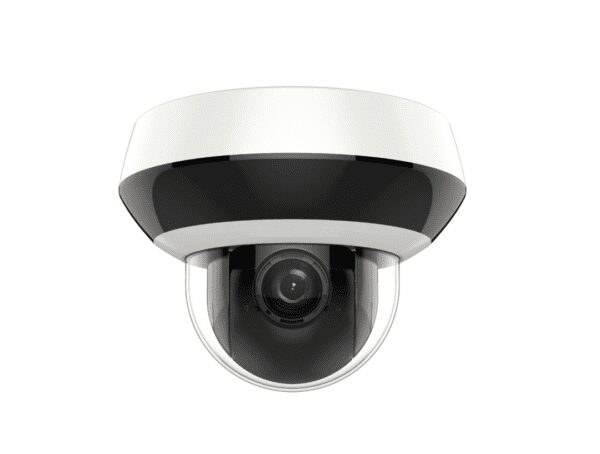

Hunt Electronics HNP114-IR/4X 4MP Indoor Network Mini PTZ Dome Camera 4X

Product Description

The Hunt Electronics HNP114-IR/4X is a 4MP indoor network mini PTZ dome camera offering a resolution of 2560 x 1440. It features 4X optical zoom, 120dB WDR, and supports 12VDC and PoE. The camera is designed with IP66 and IK10 protection, and provides up to 60ft IR distance for night vision.

• 2560 x 1440 Resolution
• 4X Optical Zoom
• 120dB WDR

Product Highlights

This mini PTZ dome camera is ideal for indoor surveillance, offering high-quality imaging and flexible installation options with its 12VDC and PoE support.

Product Information

Standard Information

• Brand: Hunt Electronics
• Manufacturer Part Number: HNP114-IR/4X

Technical Specifications

• Model Number: HNP114-IR/4X
• Image Sensor: 1/3” Progressive Scan CMOS
• Min. Illumination: Color: 0.005 Lux @(F1.6, AGC ON) B/W:0.001 Lux @(F1.6, AGC ON) 0 Lux with IR
• Max Resolution: 2560 x 1440
• Image Compression: Main Stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
• Focal Length: 2.8 – 12mm, 4X
• Shutter Time: 1s to 1/30,000 s
• Digital Zoom: 32X
• Angle of View: 69.5° – 26.48°
• Aperture: F1.6 – F2.7
• WDR: 120dB
• Pan & Tilt Range: Pan: 0 – 330°, Tilt : 0 – 90°
• Number of Presets: 300
• D/N Mode: ICR
• Park Action: Preset
• Alarm I/O: 2/2
• Audio I/O: 1/1
• Frame Rate: 50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 24fps (2560 × 1440), 30fps(2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
• Protection Level: IP66, TVS 4,000V lightning protection, surge protection and voltage transient protection
• Power: 12VDC, PoE+ (802.3at, class 4), Max. 18W
