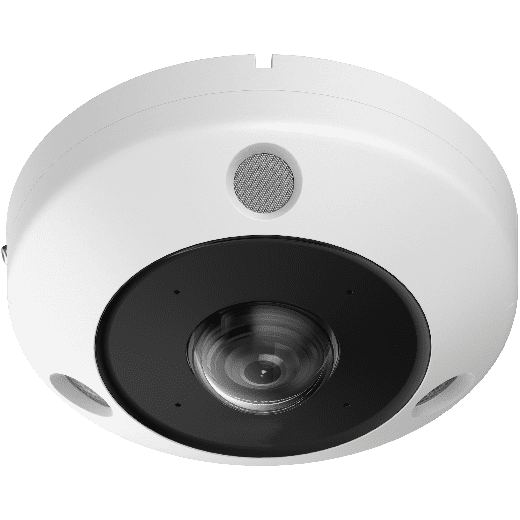

Hunt Electronics hnca2c-fea 12MP Fisheye Camera Exterior

Product Description

The HUNT ELECTRONICS hnca2c-fea is a 12-megapixel fisheye security camera built for exterior installations. It delivers full 360-degree coverage with multiple dewarping modes, allowing the fisheye image to be converted into a standard flat view or split into a 4-image PTZ layout without losing clarity at 12 MP resolution. A built-in IR illuminator provides visibility up to 15 meters in low-light or zero-light conditions. The camera also integrates a microphone and speaker, supporting two-way audio for real-time communication and monitoring. Installation and ongoing service are handled by licensed security integrators and surveillance technicians.

The hnca2c-fea is designed for exterior deployment in commercial and residential surveillance applications. Its fisheye lens eliminates blind spots in open areas such as parking lots, building entrances, lobbies viewed from ceiling mounts, and perimeter zones. The IP67 rating confirms full protection against dust ingress and water immersion, making it suitable for exposed outdoor mounting. The IK10 vandal-resistance rating means the housing withstands significant mechanical impact, appropriate for high-traffic or high-risk locations.

Key Features

• 12 MP resolution maintains detail across all dewarping modes including 4-image PTZ view
• Multiple dewarping modes convert fisheye capture into intuitive flat or panoramic display formats
• Built-in IR illuminator rated to 15 meters for reliable low-light and zero-light performance
• Integrated microphone and speaker enable two-way audio for active security communication
• IP67 rated for dust-tight and water-immersion-resistant exterior use
• IK10 vandal-resistant housing for high-impact-risk environments

Compatibility

Designed as an OEM-style exterior fisheye security camera compatible with IP-based video management systems and NVR platforms that support ONVIF or manufacturer-native protocols. No specific compatible model numbers were provided in the product data.

Installation Notes

Installation should be performed by a qualified security integrator or low-voltage technician in accordance with local codes governing CCTV and IP camera systems. Power down or disconnect the PoE switch port before making wiring connections. Verify the mounting surface can support the camera housing weight and that conduit or cable routing provides adequate weatherproofing at the entry point. Confirm network switch compatibility and IP address assignment before commissioning the unit.

Technical Specifications

• Resolution: 12 MP
• IR Range: 15 meters
• Ingress Protection: IP67
• Vandal Resistance: IK10
• Audio: Built-in microphone and speaker, two-way
• Lens Type: Fisheye
• Environment: Exterior

Standard Information

• Brand: HUNT ELECTRONICS
• Manufacturer Part Number: hnca2c-fea
