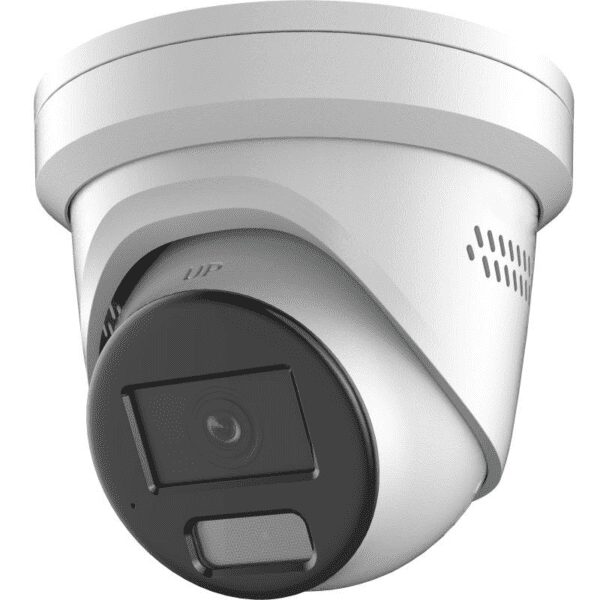

Hunt Electronics HNC348G2-XDLUSL2.8 smart color turret 8MP 2.8 mm

Product Description

The Hunt Electronics HNC348G2-XDLUSL2.8 is an 8MP smart color turret camera with a built-in mic and speaker suitable for exterior use. It features full-color night view, H.265 video compression, and face capture. The camera supports PoE and has a third stream for flexible video management. The 2.8 mm lens offers a wide angle view.

• 8 Megapixel (3840 x 2160) Resolution
• Built-in Mic and Speaker
• Full Color Night View

Product Highlights

This turret camera delivers high-resolution video with smart features, making it ideal for comprehensive surveillance applications.

Product Information

Standard Information

• Brand: Hunt Electronics
• Manufacturer Part Number: HNC348G2-XDLUSL2.8

Technical Specifications

• Model Number: HNC348G2-XDLUSL2.8
• Image Sensor: 1/1.2″ progressive scan CMOS
• Min. illumination: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Max Resolution: 3840 x 2160
• Shutter time: 1/3s ~ 1/100,000s
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
• Day & Night: 24/7 Color imaging
• Lens: 2.8 mm
• Focal Length and FOV: 2.8 mm, horizontal FOV 102°, vertical FOV 52°, diagonal FOV 124°
• Iris Type: Fixed
• Lens Mount: M mount
• Aperture: F1.0
• DORI: D: 96 m, O: 38 m, R: 19 m, I: 9 m
• Supplement Light Type: White Light
• Supplement Light Range: 60M
• Main Stream: 24 fps (3840 × 2160), 30 fps (3200 x 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub Stream: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third stream: 10 fps (1920 x 1080 , 1280 × 720, 640 × 480, 640 × 360)
• Video Compression: Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR/VBR
• Region of Interest: 1 fixed region for main stream and sub-stream
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Image Parameters Switch: Yes
• Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night Switch: Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR): 130 dB
• SNR: ≥ 52 dB
• Privacy Mask: 4 regions of privacy mask
• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 512 GB
• Reset Key: Yes
• Built-in Mic: Yes
• Built-in Speaker: 1.5 W, 10 cm: 95 dB
• Audio: 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance:4.7 KΩ, interface type: non-equilibrium 1 output (line out), max.output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
• Alarm: 1 input, 1 output (max. 24 VDC, 1 A)
• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle)), scene change detection
• Linkage: Upload to NAS/memory card/FTP, notify surveillance center, trigger record, trigger capture, send email
• Face Capture: Yes
• Power: 12 VDC ± 25%, 0.63 A, max. 8.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Class 3, 36 V to 57 V, 0.24 A to 0.15 A
• Material: Cover: metal, main body: metal
• Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7) KC (KN32: 2015, KN35: 2015)
• Safety: UL (UL 62368-1); CB (IEC 62368-1:2014+A11) CE-LVD (EN 62368-1:2014/A11:2017)
• Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protection: IP67 (IEC 60529-2013)
