Hunt Electronics hnc326g2-xd 6MP Exir Turret Camera

Product Description

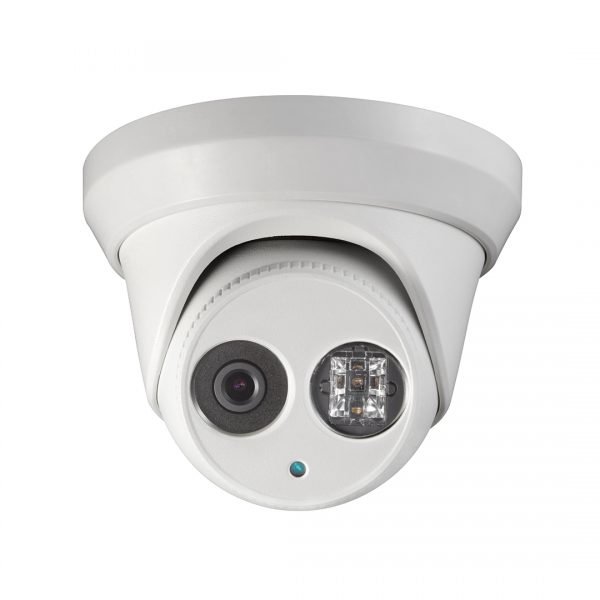

The HUNT ELECTRONICS hnc326g2-xd is a 6-megapixel EXIR turret camera built for outdoor surveillance installations. It uses a 1/2.8-inch progressive scan CMOS sensor to deliver a maximum resolution of 3200 x 1800 at up to 20 fps, or 30 fps at 2688 x 1520 and lower resolutions. True Wide Dynamic Range at 120 dB and 3D Digital Noise Reduction allow the camera to produce clean, usable footage across high-contrast scenes. The built-in EXIR illuminator reaches up to 100 feet, supporting around-the-clock monitoring without supplemental lighting. Licensed security technicians and low-voltage integrators handle installation in exterior applications where weatherproofing and reliable night performance are required.

The hnc326g2-xd is designed for exterior use in commercial and residential IP surveillance systems. It powers over a standard PoE (802.3af) network connection, eliminating the need for a dedicated power run to each camera location. The camera supports multiple video compression formats including H.265, H.264, H.264+, and H.265+ on the main and third streams, along with MJPEG on the sub-stream, making it compatible with most modern NVR platforms that support ONVIF or PSIA standards. Bit rates are adjustable from 32 Kbps to 16 Mbps to suit available network bandwidth. Compatible electrical box and mounting accessories include HTH-285ZJ-M(B), HTH-280ZJ-M, wall mounts HTH-273ZJ-130B-TRL and HTH-273ZJ-130-TRL, corner and pole mounts HTH-276ZJ and HTH-275ZJ, and ceiling mount HTH-271ZJ-130-TRL.

Key Features

• 6MP resolution at 3200 x 1800 with up to 20 fps at full resolution and 30 fps at 2688 x 1520 or lower
• True WDR at 120 dB for clear imaging in high-contrast lighting conditions
• EXIR illumination range up to 100 feet for low-light and zero-light operation
• IP67-rated housing suitable for direct exposure to rain, dust, and outdoor conditions
• PoE (802.3af) power input simplifies installation by combining data and power on a single Cat5e or Cat6 cable
• Pan adjustment 0 to 355 degrees and tilt 0 to 75 degrees for flexible aiming after mounting
• Dual-stream output with NAS network storage support and motion detection alarm trigger

Compatibility

Compatible with ONVIF, PSIA, and CGI-based NVR platforms. Mounting accessories include electrical boxes HTH-285ZJ-M(B) and HTH-280ZJ-M, wall mounts HTH-273ZJ-130B-TRL and HTH-273ZJ-130-TRL, corner mount HTH-276ZJ, pole mount HTH-275ZJ, and ceiling mount HTH-271ZJ-130-TRL.

Installation Notes

Installation should be performed by a licensed low-voltage or security systems technician in accordance with applicable local codes. Power down the PoE switch port before making or breaking the network connection at the camera. Select the appropriate fixed focal lens (2.8 mm or 4 mm) for the intended field of view before mounting, as the lens is not field-interchangeable after installation. Verify that the mounting surface and selected accessory bracket are rated to support the camera weight and expected environmental loads.

Technical Specifications

• Image Sensor: 1/2.8-inch progressive scan CMOS
• Max Resolution: 6MP (3200 x 1800)
• Frame Rate: 20 fps at 3200 x 1800; 30 fps at 2688 x 1520, 1920 x 1080, 1280 x 720 (60 Hz)
• Minimum Illumination: 0.005 Lux at F1.6 with AGC on; 0 Lux with IR
• Shutter Time: 1/3s to 1/100,000s
• Lens: Fixed focal, 2.8 mm and 4 mm optional
• Wide Dynamic Range: True WDR, 120 dB
• Digital Noise Reduction: 3D DNR
• EXIR Range: Up to 100 feet
• Video Compression: H.265, H.264, H.264+, H.265+ (main and third stream); H.265, H.264, MJPEG (sub-stream)
• Bit Rate: 32 Kbps to 16 Mbps
• Pan Adjustment: 0 to 355 degrees
• Tilt Adjustment: 0 to 75 degrees
• Communication Interface: 1 x RJ45 10M/100M Ethernet
• Power Supply: 12 VDC +/- 25%, PoE (802.3af)
• Power Consumption: Max 6W (7.5W with ICR on)
• Operating Temperature: -22 degrees F to 140 degrees F (-30 degrees C to 60 degrees C)
• Operating Humidity: 95% or less, non-condensing
• Ingress Protection: IP67
• Dimensions: 5.0 inches diameter x 3.8 inches
• Weight: 1.3 pounds
• Network Storage: NAS
• Alarm Trigger: Motion detection, tampering alarm
• System Compatibility: ONVIF, PSIA, CGI

Standard Information

• Brand: HUNT ELECTRONICS
• Manufacturer Part Number: hnc326g2-xd
