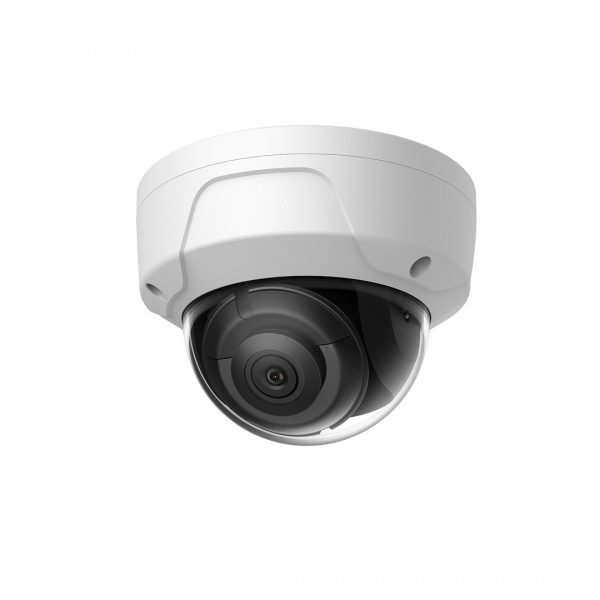

Hunt Electronics HNC326G2-TD/2.8 6MP True WDR Fixed Mini Dome Exterior

Product Description

The Hunt Electronics HNC326G2-TD/2.8 is a 6MP mini-dome camera delivering 3072 x 2048 resolution. It supports H.265/H.264/MJPEG video compression and features True WDR, 3D DNR, and BLC for enhanced image quality. Designed for exterior use, it is both vandal-proof and weather-resistant, with an IP67 and IK10 rating. The camera supports 12 VDC and PoE (802.3af) power options.

• 6 Megapixel (3072 x 2048) Resolution
• 3D DNR, 120dB WDR, BLC
• IP67 & IK10 Rating

Product Highlights

This mini-dome camera is ideal for outdoor surveillance, offering high-resolution imaging and robust environmental protection.

Product Information

Standard Information

• Brand: Hunt Electronics
• Manufacturer Part Number: HNC326G2-TD/2.8

Technical Specifications

• Model Number: HNC326G2-TD
• Image Sensor: 1/2.8″ Progressive Scan CMOS
• Min. illumination: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter time: 1/3s ~ 1/100,000s
• Lens: 4mm @ F1.6, angle of view: 63.5° (2.8, 6mm optional)
• Angle adjustment: Pan:0° ~ 355°, tilt 0° ~ 75°, Rotation: 0°~ 355°
• Digital noise reduction: 3D DNR
• Wide dynamic range: True WDR
• Day & night: ICR
• Video compression: Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG
• Dual stream: Yes
• Max. image resolution: 3200 × 1800
• Frame rate: 60 Hz: 20 fps (3200 × 1800) 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Image settings: Saturation, brightness, contrast, sharpness adjustable through client software or web browser
• BLC: Yes, zone configurable
• On Board Storage: Micro SD slot, up to 128GB
• Alarm trigger: Motion detection, tampering alarm
• Protocols: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos
• System compatibility: ONVIF(PROFILE S, PROFILE G), PSIA, CGI, ISAPI
• General functionalities: One-key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter
• Communication interface: 1 RJ45 10M / 100M self-adaptive Ethernet interface
• Operating conditions: -30°C ~ 60°C (-22°F ~ 140°F) humidity 95% or less (non-condensing)
• Power supply: 12 VDC +/- 25%, PoE (802.3af)
• Power consumption: 12 VDC, 6.2W; PoE(802.3af, class 3), 7.5 W
• Ratings: IP67 / IK10
• IR range: Up to 100ft
