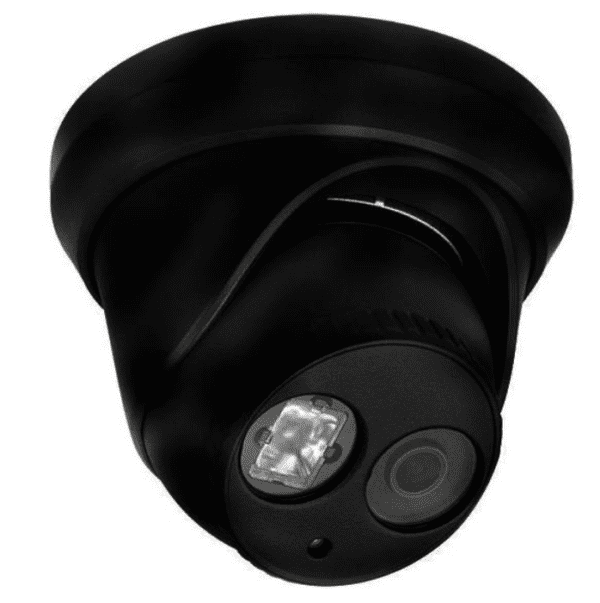

Hunt Electronics hnc324g2-xdrb28 4MP Exir Turret Camera

Product Description

The HUNT ELECTRONICS hnc324g2-xdrb28 is a 4-megapixel outdoor turret-style IP security camera designed for professional surveillance installations in commercial and residential applications. Built around a 1/3-inch progressive scan CMOS sensor, it delivers 2688 x 1520 resolution at up to 30 fps. The integrated EXIR illuminator provides night vision coverage up to 100 feet, while True Wide Dynamic Range at 120 dB handles high-contrast lighting conditions. Video compression supports H.265, H.265+, H.264, and H.264+ on the main stream, keeping bandwidth and storage demands in check. Security integrators, low-voltage technicians, and surveillance installers are the primary trades that specify and deploy this unit.

This camera is suited for exterior mounting on commercial buildings, warehouses, parking structures, and residential perimeters where a compact turret form factor is preferred. The 2.8 mm fixed lens delivers a 103-degree horizontal field of view, making it effective for wide-area coverage at moderate distances. Power is supplied via PoE (802.3af) or 12 VDC, simplifying installation where a single Cat5e/Cat6 run is preferred. The camera operates in temperatures from -22 degrees F to 140 degrees F with up to 95 percent relative humidity (non-condensing), making it appropriate for harsh outdoor environments. Compatible electrical boxes and mounting accessories are available: electrical box models HTH-285ZJ-M(B) and HTH-280ZJ-M, wall mount HTH-273ZJ-130B-TRL, corner and pole mounts HTH-276ZJ and HTH-275ZJ, and ceiling mount HTH-271ZJ-130-TRL.

Key Features

• 4MP resolution at 2688 x 1520 with 30 fps at 60 Hz
• EXIR night vision range up to 100 feet with 0 Lux capability when IR is active
• True WDR at 120 dB for high-contrast scene handling
• H.265 and H.265+ compression on main stream for reduced bandwidth and storage
• IP67 ingress protection rating for full dust exclusion and water jet resistance
• Pan 0 to 360 degrees, tilt 0 to 75 degrees, rotate 0 to 360 degrees for flexible aim adjustment
• PoE 802.3af support for single-cable power and data runs

Compatibility

Compatible with ONVIF, PSIA, and CGI standard platforms. Supported mounting accessories include electrical boxes HTH-285ZJ-M(B) and HTH-280ZJ-M, wall mount HTH-273ZJ-130B-TRL, corner mount HTH-276ZJ, pole mount HTH-275ZJ, and ceiling mount HTH-271ZJ-130-TRL.

Installation Notes

Installation is typically performed by licensed low-voltage or security systems technicians. Power down the network switch port or PoE injector before making cable connections. Ensure the Cat5e or Cat6 cable run and RJ45 termination meet TIA-568 standards to maintain PoE power delivery within spec. Seal cable entry points with appropriate weatherproofing compound to preserve the IP67 rating after mounting.

Technical Specifications

• Image Sensor: 1/3-inch progressive scan CMOS
• Max Resolution: 2688 x 1520
• Frame Rate: 30 fps at 2688 x 1520, 1920 x 1080, 1280 x 720 (60 Hz)
• Lens: 2.8 mm fixed
• Horizontal FOV: 103 degrees
• Vertical FOV: 55 degrees
• Diagonal FOV: 122 degrees
• Min. Illumination: 0.005 Lux at F1.6 AGC ON; 0 Lux with IR active
• Shutter Time: 1/3s to 1/100,000s
• Wide Dynamic Range: True WDR, 120 dB
• Digital Noise Reduction: 3D DNR
• Backlight Compensation: Yes, zone configurable
• Video Compression: H.265, H.265+, H.264, H.264+ (main stream); H.265, H.264, MJPEG (sub-stream)
• Bit Rate: 32 Kbps to 8 Mbps
• EXIR Range: Up to 100 feet
• Power Supply: 12 VDC plus or minus 25%; PoE 802.3af
• Max Power Consumption: 6 watts
• Ingress Protection: IP67
• Operating Temperature: -22 degrees F to 140 degrees F
• Operating Humidity: 95 percent or less, non-condensing
• Angle Adjustment: Pan 0 to 360 degrees, tilt 0 to 75 degrees, rotate 0 to 360 degrees
• Communication Interface: 1 x RJ45 10M/100M Ethernet
• Network Storage: NAS
• System Compatibility: ONVIF, PSIA, CGI
• Dimensions: 5.01 inches diameter x 3.78 inches
• Weight: 1.3 pounds

Standard Information

• Brand: HUNT ELECTRONICS
• Manufacturer Part Number: hnc324g2-xdrb28
