Hunt Electronics hnc324g2-xd 4MP Exir Turret Camera

Product Description

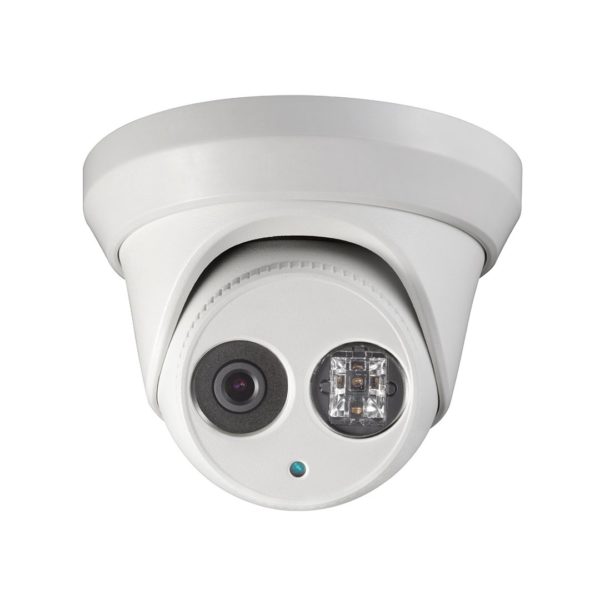

The HUNT ELECTRONICS hnc324g2-xd is a 4-megapixel outdoor EXIR turret camera designed for professional security installations. Built around a 1/3-inch progressive scan CMOS sensor, it captures full 2688 x 1520 resolution video at up to 30 frames per second. True Wide Dynamic Range at 120dB handles high-contrast scenes without washed-out highlights or crushed shadows. The integrated EXIR illuminator reaches up to 100 feet in zero-light conditions, making it effective for perimeter and entry-point coverage. H.265 and H.264 compression with triple-stream output keeps bandwidth and storage demands manageable. Security integrators and low-voltage technicians are the primary installers.

This camera is rated for exterior deployment with an IP67 ingress protection rating, suitable for mounting on building exteriors, soffits, and covered outdoor structures in residential and light commercial applications. It accepts Power over Ethernet via 802.3af, eliminating the need for a separate power run to each camera location. The wide-angle 2.8 mm lens option delivers a 103-degree horizontal field of view, while the 4 mm option narrows to 84 degrees for longer corridor or driveway coverage. Pan adjustment spans 0 to 360 degrees and tilt spans 0 to 75 degrees, allowing precise aiming after mounting. Compatible mounting accessories are listed in the Technical Specifications section below.

Key Features

• 4MP 2688 x 1520 resolution at 30 fps for clear, detailed image capture
• True WDR at 120dB compensates for backlit and high-contrast scenes
• EXIR illumination reaches up to 100 feet for low-light and zero-light coverage
• IP67-rated housing withstands dust ingress and water jets for outdoor durability
• PoE (802.3af) power delivery simplifies single-cable installation
• H.265 and H.265+ compression reduces storage and bandwidth requirements
• 3D DNR reduces digital noise in low-light video streams

Compatibility

Compatible mounting accessories include electrical boxes HTH-285ZJ-M(B) and HTH-280ZJ-M, wall mounts HTH-273ZJ-130B-TRL and HTH-273ZJ-130-TRL, corner mount HTH-276ZJ, pole mount HTH-275ZJ, and ceiling mount HTH-271ZJ-130-TRL. The camera supports ONVIF, PSIA, and CGI system compatibility standards for integration with compatible NVR platforms and VMS software.

Installation Notes

Installation is typically performed by a licensed low-voltage technician or security systems integrator. Before servicing or repositioning the camera, disconnect PoE power at the switch port. Seal all conduit and cable penetrations at the mounting surface to maintain the IP67 rating and prevent moisture intrusion into the structure. Follow local low-voltage wiring codes and NEC guidelines for structured cabling and PoE circuit protection.

Technical Specifications

• Image Sensor: 1/3-inch progressive scan CMOS
• Max Resolution: 2688 x 1520
• Frame Rate: 30 fps at 2688 x 1520, 1920 x 1080, and 1280 x 720 (60 Hz)
• Min. Illumination: 0.005 Lux at F1.6 AGC ON; 0 Lux with IR on
• Shutter Time: 1/3s to 1/100,000s
• Lens Options: 2.8 mm (H-FOV 103 degrees, V-FOV 55 degrees, D-FOV 122 degrees); 4 mm (H-FOV 84 degrees, V-FOV 45 degrees, D-FOV 100 degrees)
• Angle Adjustment: Pan 0 to 360 degrees, Tilt 0 to 75 degrees, Rotate 0 to 360 degrees
• Wide Dynamic Range: True WDR, 120dB
• Digital Noise Reduction: 3D DNR
• Video Compression: H.265, H.265+, H.264, H.264+, MJPEG
• Bit Rate: 32 Kbps to 8 Mbps
• EXIR Range: Up to 100 feet
• Power Supply: 12 VDC +/- 25%, PoE 802.3af
• Max Power Consumption: 6W
• Communication Interface: 1 x RJ45 10M/100M Ethernet
• Protocols: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, QoS
• System Compatibility: ONVIF, PSIA, CGI
• Ingress Protection: IP67
• Operating Temperature: -22 degrees F to 140 degrees F
• Operating Humidity: 95% or less, non-condensing
• Dimensions: 5.01 inches diameter x 3.78 inches
• Weight: 1.3 pounds

Standard Information

• Brand: HUNT ELECTRONICS
• Manufacturer Part Number: hnc324g2-xd
