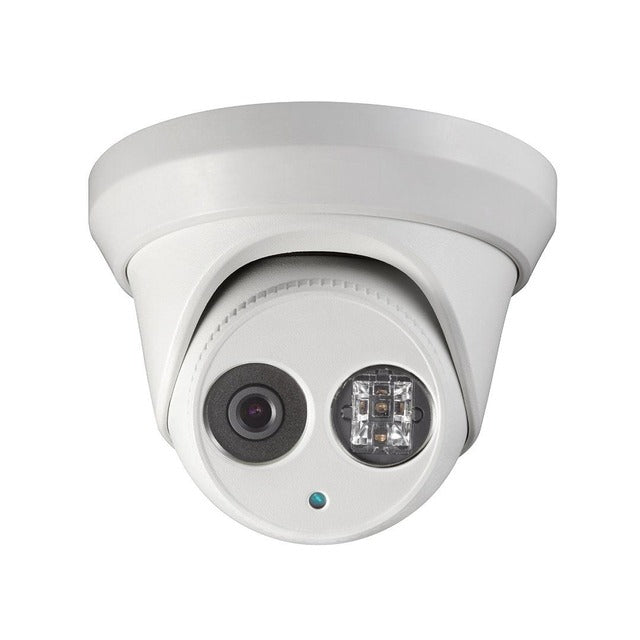

Hunt Electronics hnc324-xd/6mm 4MP Ip Turret Camera Outdoor

Product Description

The HUNT ELECTRONICS hnc324-xd/6mm is a 4-megapixel turret-style IP security camera built for outdoor surveillance applications. It delivers 2688 x 1520 resolution through a 6 mm fixed focal length lens, providing clear wide-area coverage across parking lots, building perimeters, and similar installations. True wide dynamic range rated at 120 dB keeps image detail intact when the scene includes both bright and shadowed zones simultaneously. Built-in EXIR infrared illumination extends night vision coverage up to 100 feet. Security integrators and low-voltage technicians are the primary installers for this type of unit.

This camera is intended for outdoor fixed surveillance in residential and commercial applications where reliable imaging under variable lighting is required. The turret form factor suits ceiling and soffit mounting at entry points, corridors, and open areas. Its compact housing keeps the camera low-profile while still delivering full 4MP resolution. Power over Ethernet (PoE) support allows a single Cat5e or Cat6 cable to carry both data and power, reducing conduit runs and simplifying cabling in new construction or retrofit projects.

Key Features

• 4MP resolution at 2688 x 1520 for detailed wide-area image capture
• 6 mm fixed focal length lens for consistent framing without manual zoom adjustment
• 120 dB true wide dynamic range (WDR) maintains clarity in high-contrast lighting
• 3D digital noise reduction preserves image quality in low-light conditions
• Built-in EXIR infrared illumination with effective range up to 100 feet
• IP67-rated weatherproof housing rated for full outdoor exposure
• Power over Ethernet (PoE) support simplifies single-cable installation

Compatibility

Designed as an IP-based turret camera for use with PoE-capable network video recorders (NVRs) and PoE network switches that support standard IEEE 802.3af or 802.3at power delivery. No specific compatible NVR models or system families were identified in the available product data.

Installation Notes

Installation should be performed by a qualified low-voltage technician or licensed security integrator familiar with IP camera systems and structured cabling practices. Power down the PoE switch port before connecting or disconnecting the camera. Ensure the mounting surface and conduit entry points are properly sealed to maintain the IP67 weatherproof rating. Cable routing and installation should comply with applicable local codes and NEC Class 2 low-voltage wiring guidelines where required.

Technical Specifications

• Resolution: 4MP (2688 x 1520)
• Lens: 6 mm fixed focal length
• Wide Dynamic Range: 120 dB
• Infrared Range: Up to 100 feet
• Noise Reduction: 3D digital noise reduction
• Weatherproof Rating: IP67
• Power Input: Power over Ethernet (PoE)
• Camera Style: Turret
• Application: Outdoor

Standard Information

• Brand: HUNT ELECTRONICS
• Manufacturer Part Number: hnc324-xd/6mm
