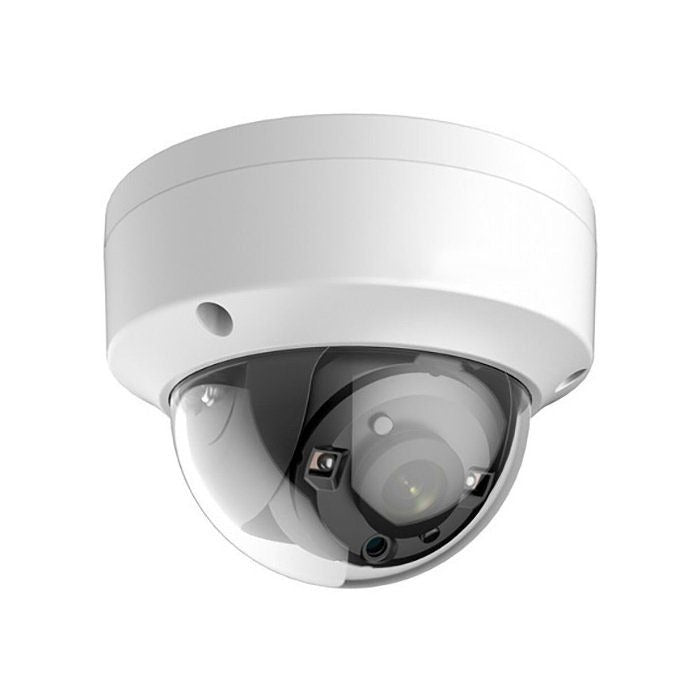

Hunt Electronics hac346-od-2.8 5MP Tvi Dome Camera

Product Description

The HUNT ELECTRONICS hac346-od-2.8 is a 5-megapixel HD-TVI dome camera built for outdoor surveillance installations. It outputs video over coaxial cable using HD-TVI technology, making it a direct-fit option for existing analog-infrastructure upgrades without rewiring. The camera features a 2.8mm fixed lens, EXIR 2.0 smart IR illumination with up to 30 meters of IR range, and a 130 dB true wide dynamic range (WDR) for demanding lighting conditions. Licensed security integrators and low-voltage technicians are the primary installers of this unit.

This dome camera is suited for outdoor perimeter and entry-point coverage in both residential and light commercial applications. The fixed 2.8mm lens delivers a wide field of view appropriate for close- to mid-range scenes such as doorways, parking areas, and building exteriors. Control is managed through an on-screen display (OSD) menu using Up the Coax (UTC) technology, allowing configuration without a separate control cable. 3D digital noise reduction (3D DNR) is included to maintain image clarity in low-light conditions.

Key Features

• 5MP HD-TVI video output over coaxial cable
• EXIR 2.0 smart IR with up to 30 meters of IR range
• 130 dB true wide dynamic range (WDR) for high-contrast scenes
• 2.8mm fixed lens for wide field of view
• OSD menu control via Up the Coax (UTC) — no separate control wire needed
• 3D DNR for reduced noise in low-light environments
• IP67 weatherproof and IK10 impact-resistant rated enclosure

Compatibility

Designed for use with HD-TVI compatible digital video recorders (DVRs) and hybrid recorders that support 5MP TVI input. Compatible with existing RG59 or RG6 coaxial cable infrastructure.

Installation Notes

Installation should be performed by a licensed low-voltage technician or qualified security integrator in accordance with local electrical codes. Power down the DVR and disconnect the coaxial feed before connecting or disconnecting the camera. The IP67 rating requires proper sealing of all cable entry points to maintain weatherproofing integrity. OSD configuration is accessible through the connected DVR or a UTC-compatible controller via the coax run.

Technical Specifications

• Resolution: 5MP
• Video Technology: HD-TVI
• Lens: 2.8mm fixed
• IR Range: Up to 30 meters
• IR Technology: EXIR 2.0 smart IR
• Wide Dynamic Range: 130 dB true WDR
• Noise Reduction: 3D DNR
• Ingress Protection: IP67
• Impact Rating: IK10
• Control Interface: Up the Coax (UTC) with OSD menu
• Installation Type: Outdoor dome

Standard Information

• Brand: HUNT ELECTRONICS
• Manufacturer Part Number: hac346-od-2.8
