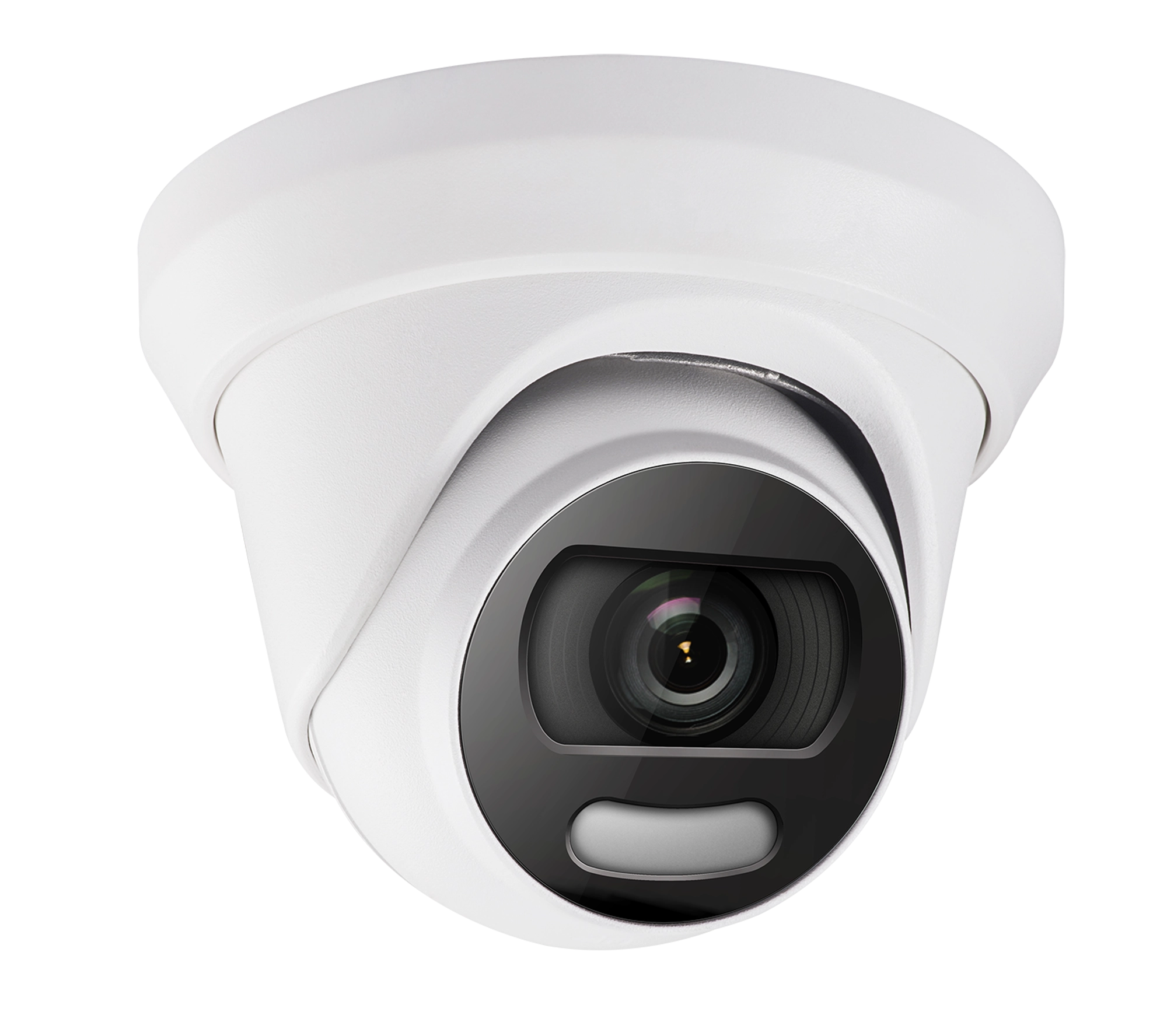

Hunt Electronics HAC346-FD/F2.8 5 MP Full Time Color Camera

Product Description

The Hunt Electronics HAC346-FD/F2.8 is a 5 MP camera with 2560 x 1944 resolution, providing a 24-hour color image. It features 130 dB true WDR and 3D DNR. Equipped with a 2.8 mm, 4 mm fixed focal lens and smart light, the camera offers up to 20 m white light distance. It also supports 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) and is IP67 rated.

• 5 MP, 2560 × 1944 resolution
• 24-hour color image
• 130 dB true WDR, 3D DNR

Product Highlights

This camera delivers high-resolution, full-color imaging around the clock, enhanced dynamic range, and versatile video output options.

Product Information

Standard Information

• Brand: Hunt Electronics
• Manufacturer Part Number: HAC346-FD/F2.8

Technical Specifications

• Image Sensor: 5MP CMOS
• Resolution: 2560×1944
• Frame Rate: TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080p@30fps, 1080p@25fps CVI: 4MP@30fps, 4MP@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps CVBS: PAL/NTSC
• Min. Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with White Light
• Shutter Time: PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
• Slow Shutter: Max. 16 times
• Lens: 2.8mm, 4mm fixed lens
• Horizontal FOV: 109°(2.8 mm), 67° (4 mm)
• Lens Mount: M16
• Day & Night: Color
• WDR (Wide Dynamic Range): ≥130 dB
• Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°
• White Light: Auto/Manual
• Image Mode: STD/HIGH-SAT
• AGC: Yes
• Day/Night Mode: Color
• White Balance: Auto/Manual
• AE (Auto Exposure) Mode: WDR/BLC/HLC/Global/HLS/Anti-banding
• Privacy Marks: 4 programmable privacy masks
• Motion Detection: 4 programmable motion areas
• Noise Reduction: 3D DNR
• Language: English
• Function: Brightness, Sharpness, Mirror, Smart Light
• Video Output: Switchable TVI/AHD/CVI/CVBS
• Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
• Power Supply: 12 VDC ± 25%
• Power Consumption: Max. 4.9W
• Protection Level: IP67
• Material: Main Body: Metal Enclosure: Plastic
• White Light Range: Up to 20m
• Communication: UTC-C
• Camera Lens Size: 2.8mm
• Lens Type: Fixed
• Brand: Hunt Electronic
• Camera Illumination Type: LED
• Type: Turret
