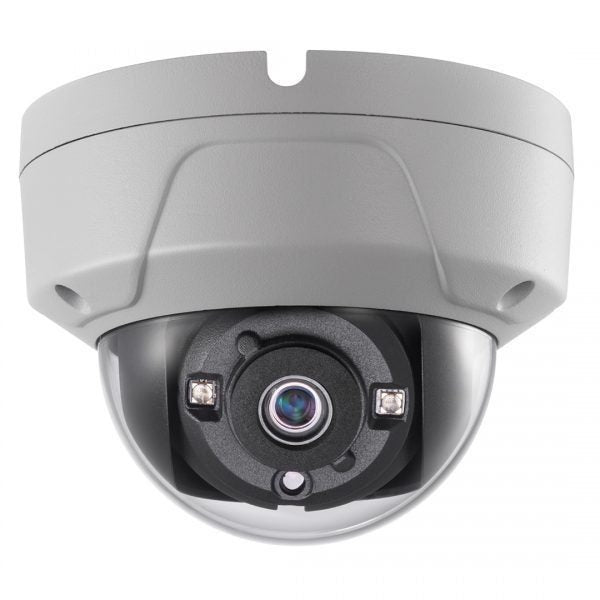

Hunt Electronics hac334-od Hd-tvi 2MP Outdoor Ir Dome

Product Description

The HUNT ELECTRONICS hac334-od is a 2-megapixel HD-TVI outdoor IR dome camera built for continuous surveillance in demanding environments. It uses a 2MP CMOS sensor to deliver 1080p video at 30 frames per second over a single coax run up to 1,200 feet using RG59U 95% cable. The 120dB True WDR engine handles high-contrast scenes where standard cameras wash out highlights or lose shadow detail. An integrated ICR filter enables automatic day-to-night switching, reaching 0 Lux with IR active. Security integrators, low-voltage technicians, and surveillance system installers are the primary trade for this unit.

The hac334-od is designed for exterior installations on commercial and residential properties where weatherproof construction is required. The IP66 and IK10 ratings protect against water ingress and physical impact. The camera ships with a 3.6mm lens standard, providing an 80.9-degree angle of view, with a 6mm option available at 54.3 degrees. Pan adjustment spans 0 to 360 degrees and tilt spans 0 to 80 degrees, supporting a wide range of mounting positions. On-screen display (OSD) menu access and Up the Coax (UTC) control are handled through the connected DVR, eliminating the need for separate control wiring. Compatible mounting accessories include electrical box HTH-280ZJ-DM18, wall mounts HTH-258ZJ and HTH-272ZJ-110B, pendant mount HTH-271ZJ-110, corner mount HTH-276ZJ, and pole mount HTH-275ZJ.

Key Features

• 2MP CMOS sensor with 1080p output at 30fps over HD-TVI
• 120dB True WDR for high-contrast scene handling
• IR range up to 65 feet with 0 Lux minimum illumination when IR is active
• IP66 weatherproof and IK10 vandal-resistant rated housing
• HD-TVI signal transmission up to 1,200 feet on RG59U 95% coax
• UTC (Up the Coax) OSD control via DVR — no separate control cable required
• Wide operating temperature range: -40 degrees F to 140 degrees F

Compatibility

Compatible mounting accessories: electrical box HTH-280ZJ-DM18, wall mounts HTH-258ZJ and HTH-272ZJ-110B, pendant mount HTH-271ZJ-110, corner mount HTH-276ZJ, and pole mount HTH-275ZJ. Designed for use with HD-TVI-compatible DVRs that support UTC control and 1080p input channels.

Installation Notes

Installation should be performed by a licensed low-voltage or security systems technician in accordance with local codes and the NEC where applicable. Disconnect power to the DVR and associated power supply before connecting or disconnecting the camera. Secure all conduit penetrations and seal cable entry points to maintain the IP66 rating. Verify DVR channel settings match the camera video format (PAL or NTSC) before commissioning.

Technical Specifications

• Image Sensor: 2MP CMOS
• Effective Pixels: 1928(H) x 1088(V)
• Video Frame Rate: 1080p at 30fps
• Video Format: PAL / NTSC
• HD Video Output: 1 HD-TVI output up to 1,200 ft with RG59U 95%
• WDR: 120dB True WDR
• IR Range: Up to 65 ft
• Minimum Illumination: 0.01 Lux at F1.2 AGC ON; 0 Lux with IR
• Shutter Time: 1/25s to 1/50,000s
• Lens: 3.6mm standard (6mm optional); Angle of View: 80.9 degrees (3.6mm), 54.3 degrees (6mm)
• Angle Adjustment: Pan 0 to 360 degrees, Tilt 0 to 80 degrees
• Day and Night: ICR; Color / BW / Smart modes
• Communication: OSD via UTC control through DVR
• Power Supply: 12 VDC plus or minus 15%
• Power Consumption: Max 5W
• Weather Protection: IP66, IK10
• Operating Temperature: -40 degrees F to 140 degrees F
• Humidity: 90% or less, non-condensing
• Dimensions: 4.37 inches diameter x 3.24 inches
• Weight: 0.77 pounds

Standard Information

• Brand: HUNT ELECTRONICS
• Manufacturer Part Number: hac334-od
