Product Description

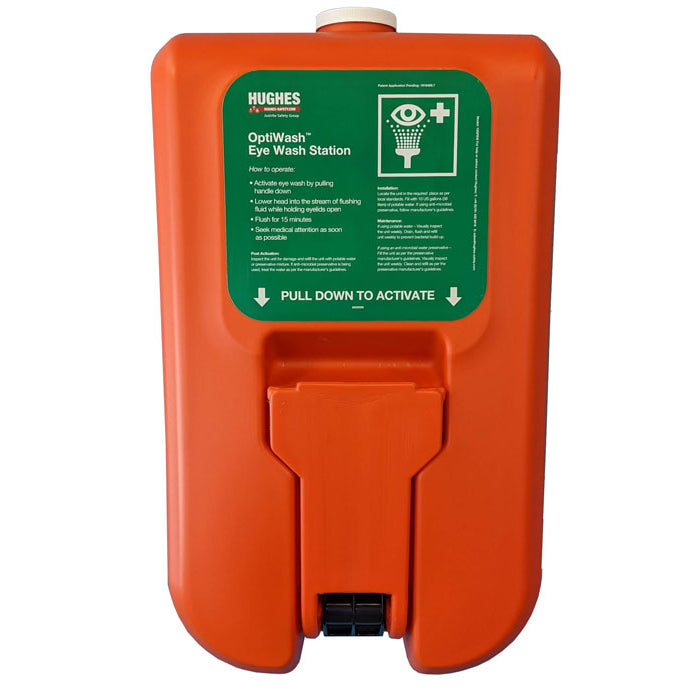

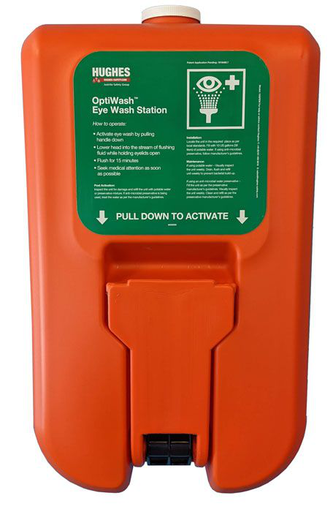

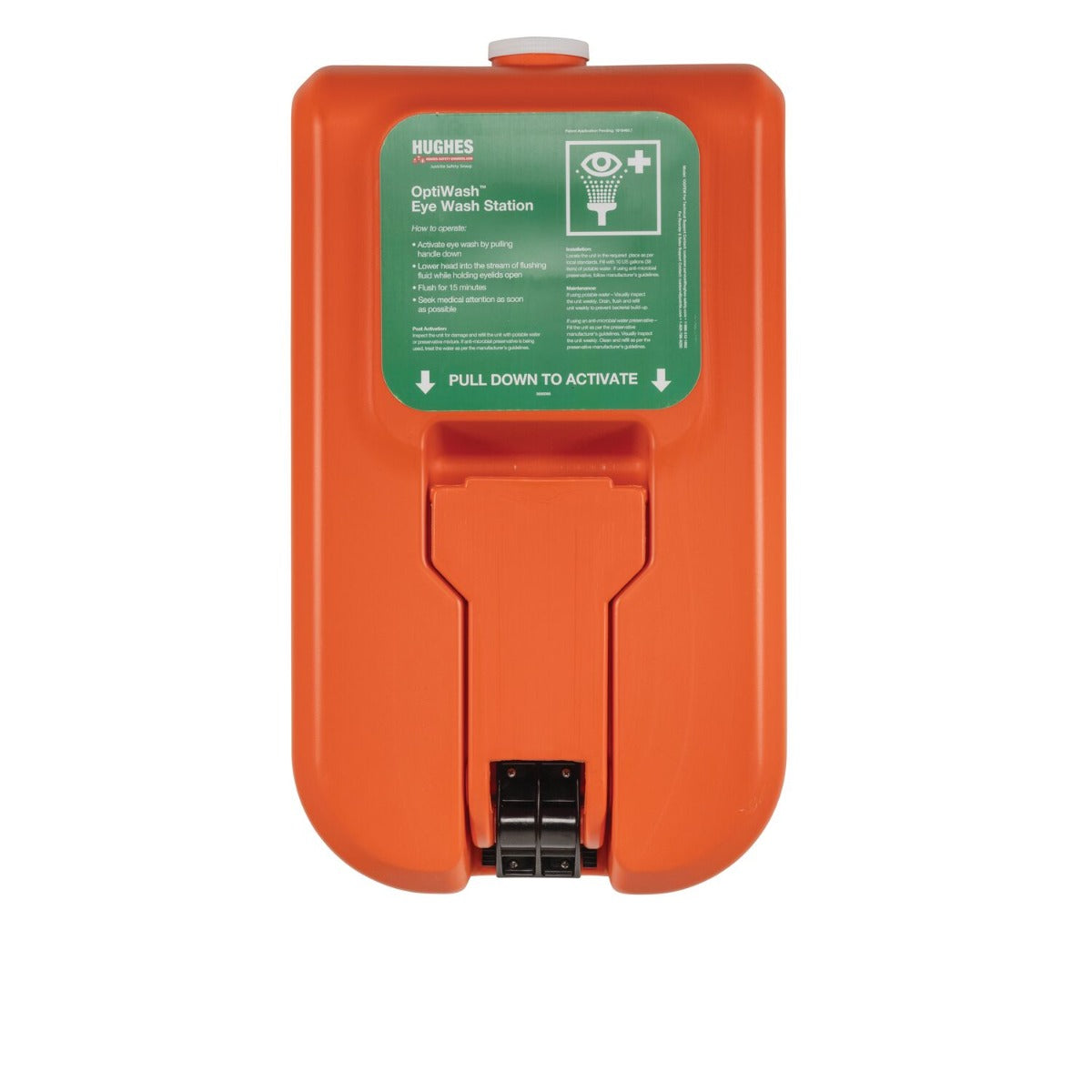

The Hughes 10GFEW portable, self-contained 10-gallon gravity-fed eyewash station is suitable wherever continuous water isn't available, with no plumbing needed. The gravity-fed eyewash supplies a controlled flow exceeding the ANSI Z358.1 standard of 1.5 LPM for 15 minutes. It features a concealed mounting bracket for easy relocation and a wide fill opening for maintenance.
- Portable design with concealed wall mounting bracket for easy relocation
- Controlled 1.5 LPM (0.4GPM) flow of water for 15 minutes
- Simple to use with pull-down activation handle
Product Highlights
This portable eyewash station provides a reliable safety solution with easy maintenance and meets ANSI Z358.1 and EN15154 requirements.
Product Information
Standard Information
-
Brand: HUGHES
-
Manufacturer Part Number: 10GFEW
-
Country of Origin: USA
Technical Specifications
-
Type: Portable Eyewash Station
-
Brand: Hughes
-
Capacity: 10 gal
-
Material: PVC
-
Flow Rate: 0.55 gal/min
-
Width: 7-1/4 in
-
Height: 30 in
-
Length: 18 in
-
Number of Heads: 2
-
Eyewash Flow Rate: 0.55 gal/min
-
Mounting Location: Wall Mount
-
Eyewash Activation: Pull Down Handle
-
Description: Gravity Fed Portable Eyewash Station
-
Gravity Fed: Yes
-
Manufacturers Part Number: 10GFEW
-
ANSI Certification: ANSI Z358.1-2014
-
Model No: 10GFEW
-
Liter Capacity: 38
-
Net Weight, lbs: 13
-
Net Weight, kg: 5.8
-
Filled Weight, kg: 42
-
UL Classified to ANSI Z358.1-2014: Yes
-
Water Flow Eye/Face Liters/min: 2
-
Water Flow Eye/Face US Gal/min: 0.55
-
Material Specifications: PVC
-
Activation Method: Pull Handle
-
Operation Duration, min: 15
-
Depth: 7.25"
-
GPM: 0.46GPM/1.5LPM
-
Operation: Pull Handle
-
Outside Dimensions: 18 x 7.25 x 29.5 in
-
UL Listed: Yes
-
Water Flow: 0.55 gal/min
-
Environment: General Purpose
-
Water Supply Type: Gravity-Fed
-
Mount Type: Wall
-
Coverage: Eyes
-
Tank Material: Plastic
-
Eyewash Capacity: 10 gal
-
Shelf Life: 4 mo
-
Includes: Wall Mounting Brackets
-
Maximum Flow Rate: 0.4 gpm
-
Spray Head Material: Polypropylene
-
Weight Empty: 13 lb
-
Weight Full: 93 lb
-
Included Media: Media Sold Separately
-
Installation Type: Portable
-
Media Type: Water Preservative
-
Min. Operating Temp.: 32 °F
-
Refill Type: Bottle
-
Standards: ANSI Z358.1-2014
-
Series: OptiWash
-
Sub-Brand: Justrite Safety Group
-
UNSPSC: 46181810
