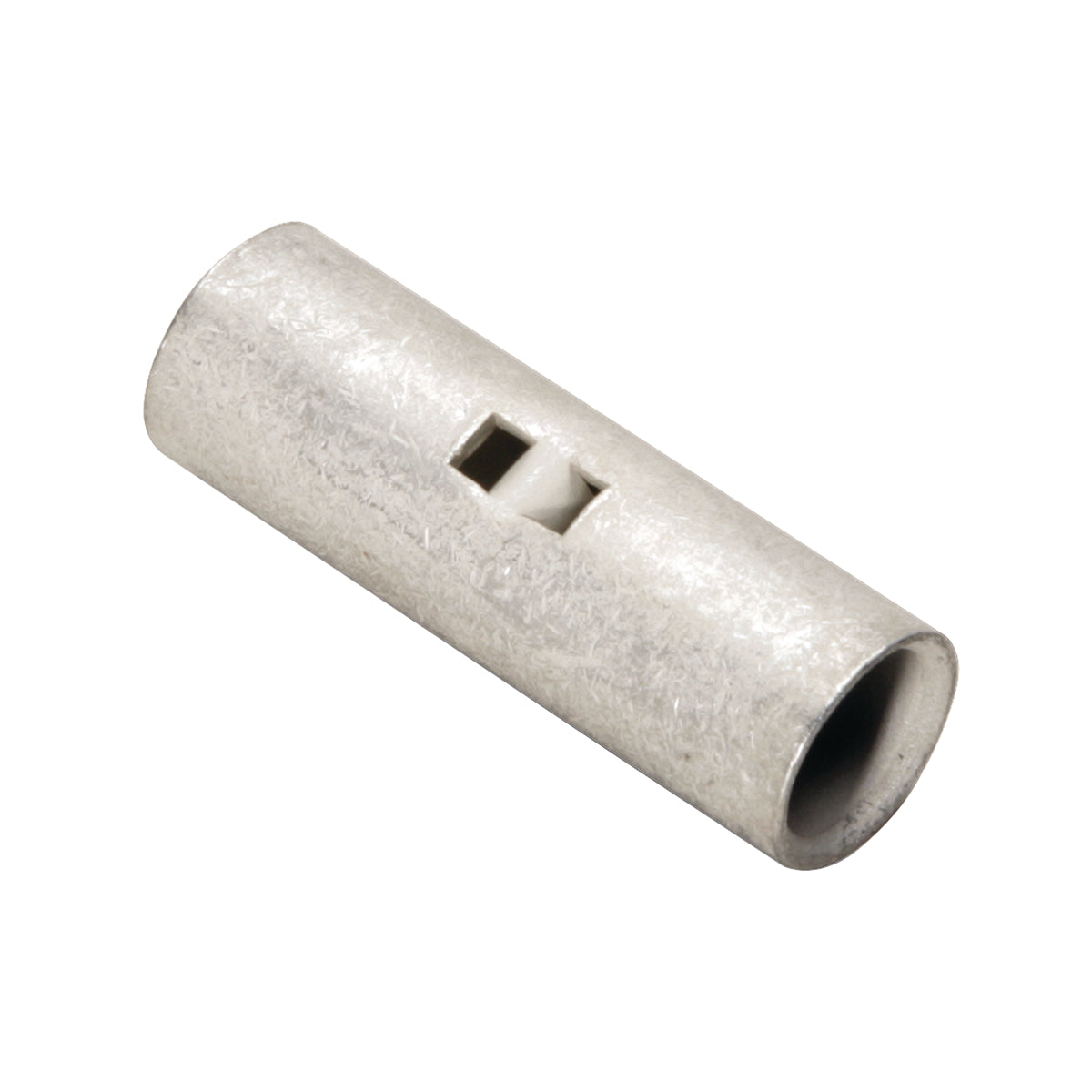

Hubbell YSV6CL YSV-L Heavy Duty Uninsulated Compression Butt Splice 600 VAC

Product Description

The Hubbell YSV6CL is a YSV-L type heavy-duty butt splice designed for uninsulated compression applications. This product is suitable for six AWG wire and has a barrel size of one half inch. With an overall length of one point twelve inches, it operates at a voltage rating of six hundred VAC. Its construction features a tin-plated copper contact for enhanced conductivity.

• Seamless splice connector for aircraft cables and solid AWG conductors
• Heavy-duty design for industrial and general-purpose use
• Compatible with various installation tools for efficient use

Product Highlights

This connector meets ANSI C119.4 Class 1 requirements and is ARRA and RoHS compliant, making it a reliable choice for professionals.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: YSV6CL

Technical Specifications

• Application: Aircraft, Light Duty Industrial and General Purpose
• Barrel Size: 1/2 inch
• Contact Material: Tin Plated Copper
• Overall Length: 1.12 inches
• Voltage Rating: 600 VAC
• Standards/Approvals: ARRA Compliant, RoHS Compliant, Meets ANSI C119.4 Class 1 Requirements, RUS Certified, PROP65 Compliant
• Type: Type YSV-L Heavy Duty Uninsulated
