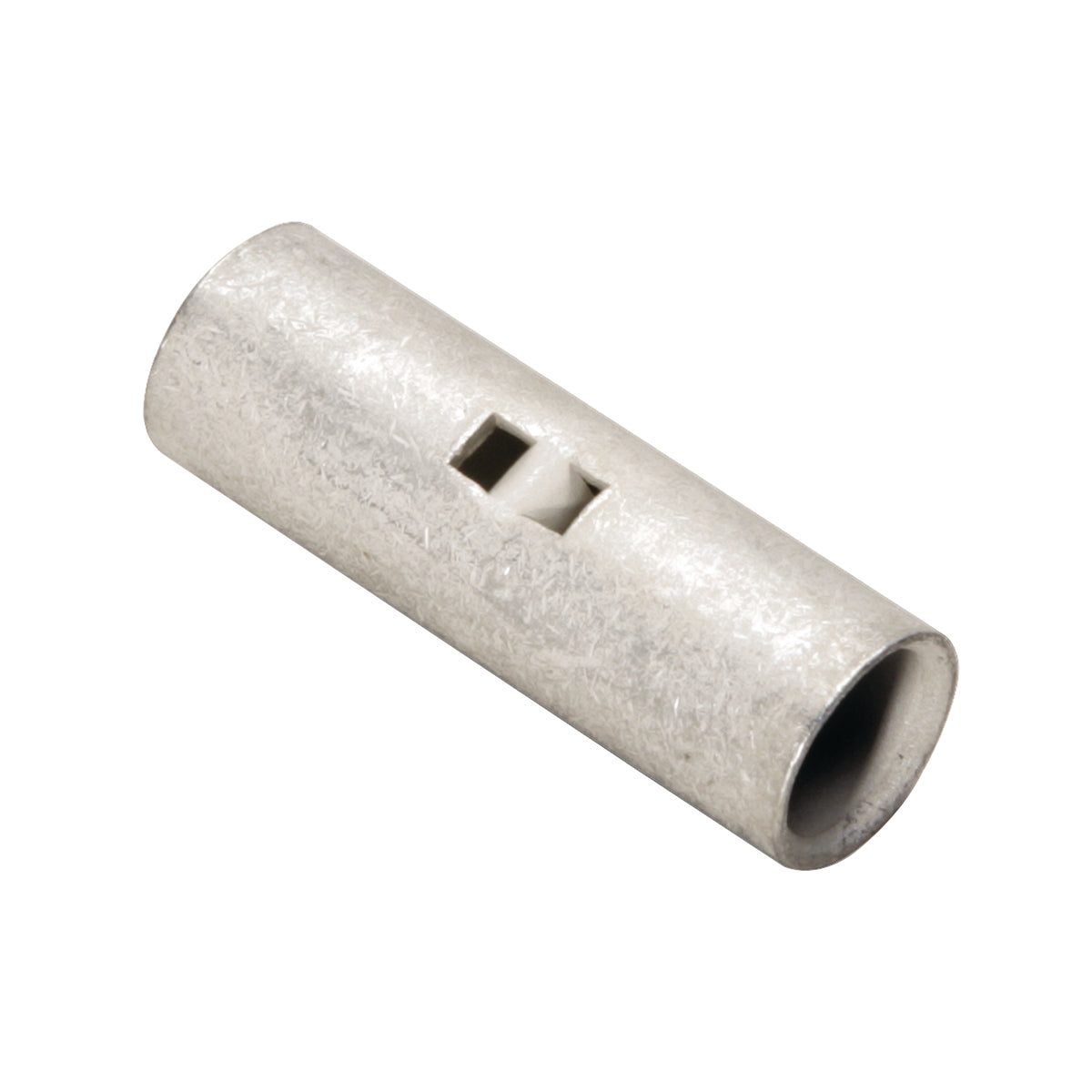

Hubbell YSV4CL YSV-L Heavy Duty Uninsulated Compression Butt Splice 4 AWG 1/2 in Barrel 600 VAC

Product Description

The Hubbell YSV4CL is a heavy-duty uninsulated compression butt splice designed for use with four stranded or solid AWG conductors. It is suitable for various applications including aircraft wiring, light-duty industrial tasks, and general purposes. This splice features a barrel size of one-half inches and is rated for six hundred volts AC.

• Used for splicing four AWG conductors.
• Voltage rating: 600 VAC.
• Overall length: 1.12 inches.

Product Highlights

The YSV4CL splice is made of tin-plated copper, ensuring reliable conductivity and performance. It meets compliance standards such as ARRA, RoHS, and ANSI.

Product Information

Standard Information

• Application: Aircraft, Light Duty Industrial and General Purpose
• Barrel Size: 1/2 in

Technical Specifications

• Contact Material: Tin Plated Copper
• Manufacturer Part Number: YSV4CL
• Overall Length: 1.12 in
• Standards/Approvals: ARRA Compliant | BAA Compliant | RoHS Compliant | Meets ANSI C119.4 Class 1 Requirements | RUS Certified | PROP65 - This product can expose you to chemicals including lead and lead compounds.
• Type: Type YSV-L Heavy Duty Uninsulated
• Voltage Rating: 600 VAC
