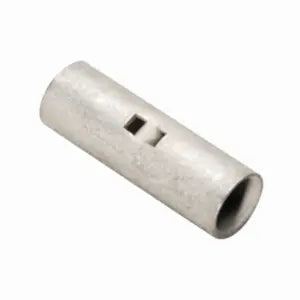

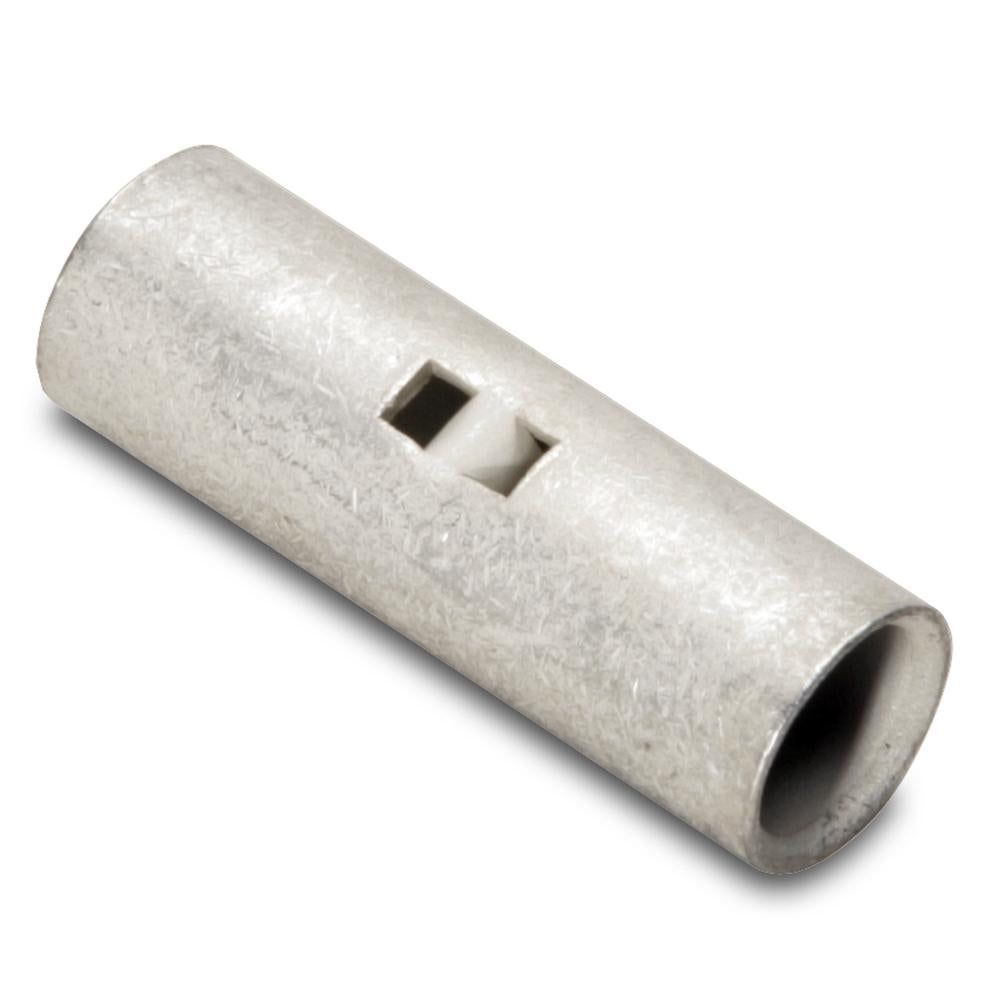

HUBBELL YSV28L Uninsulated Splice for 4/0 AWG

Product Description

The HUBBELL YSV28L is an uninsulated splice made for 4/0 AWG wire. This splice uses seamless electrolytic copper tubing to ensure effective conductivity and ductility for crimping. It features electro-tin plating that provides corrosion resistance. The splice includes center wire stops to assist with proper wire insertion depth and is marked for easy wire size identification. Inspection holes allow for visual confirmation that the wire is inserted correctly.

• Constructed from seamless electrolytic copper tubing.
• Features electro-tin plating for corrosion resistance.
• Inspection holes for visual checking of wire insertion.

Product Highlights

This splice is essential for secure wire connections in electrical systems.

Product Information

Standard Information

• Wire Size: 4/0 AWG
• Material: Electrolytic Copper

Technical Specifications

• Finish: Electro-Tin Plated
• Length: 1.9400 inches
• Product Height: 0.77 inches
• Product Width: 0.77 inches
• Maximum Voltage: 600 Volts
• RoHS Compliance: Yes
• Country Of Origin: US
