HUBBELL YSV25L HUBBELL HYLINK YSV25L Uninsulated Compression Butt Splice

Product Description

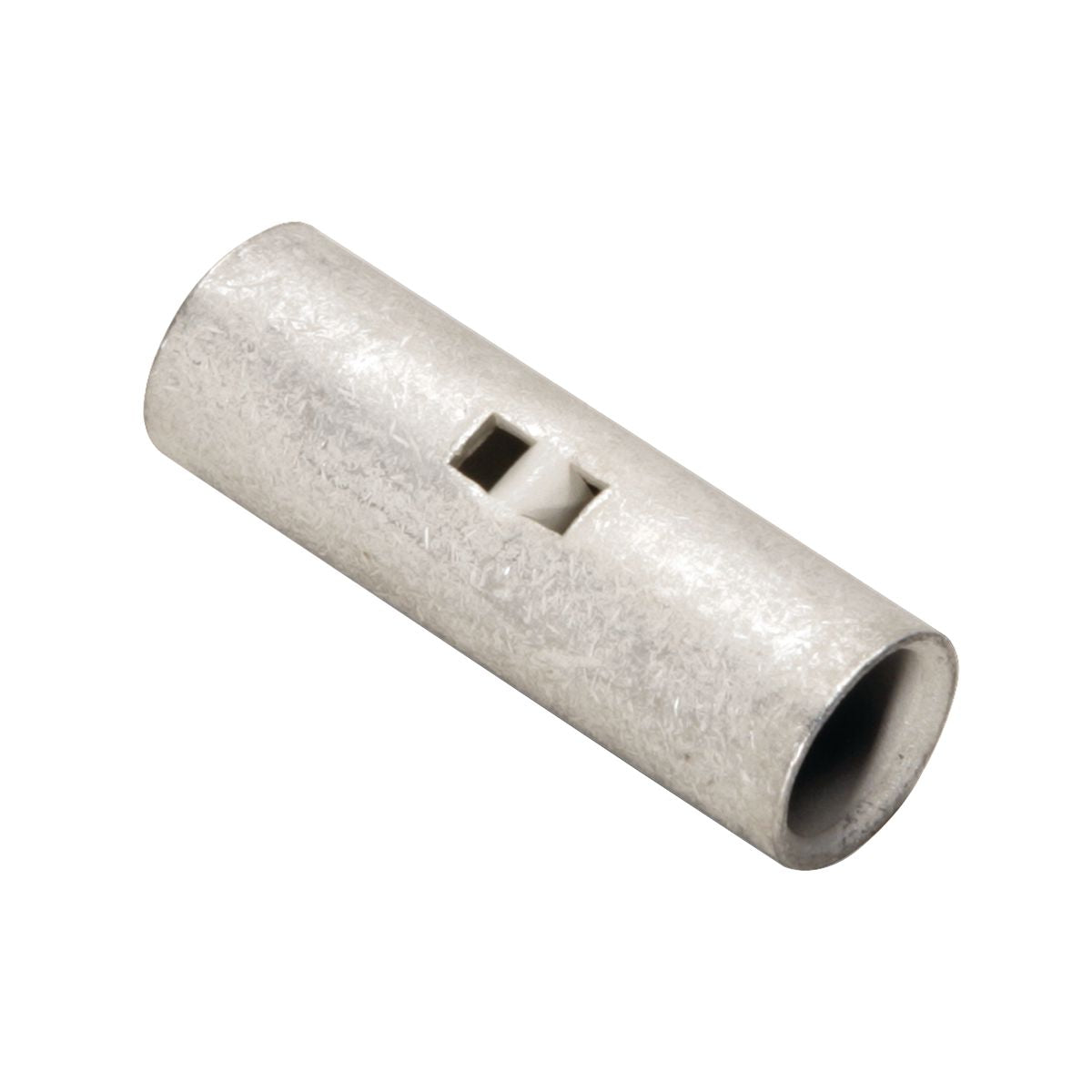

The HUBBELL HYLINK YSV25L is an uninsulated compression butt splice made from high-quality electrolytic copper. This product ensures excellent electrical conductivity and ductility, making it efficient for crimping. The splice features an electro-tin plated finish which aids in preventing corrosion. A center wire stop is included to ensure proper wire insertion depth, while the wire size is clearly marked for ease of use. Additionally, it is equipped with an inspection hole for visual checks of wire insertion, making the installation process straightforward.

• Accommodates 1/0 AWG stranded and solid wires.
• Electro-tin plating ensures durability against corrosion.
• Inspection hole allows for easy verification of wire insertion.

Product Highlights

This splice is ideal for various applications including light duty industrial and general use, as well as aircraft applications.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer: Burndy-US, a Hubbell affiliate

Technical Specifications

• MPN: YSV25L
• Accommodates: 1/0 AWG Stranded/Solid, AN, Aircraft Conductors
• Length: 1.53 inches
• Maximum Voltage: 600 V
• Application: Aircraft, Light Duty Industrial, General Purpose
• Certification - CSA Approved: Yes
• Die Index: 43
• Barrel Style: Chamfered
• Material: Copper
• Plated: Yes
• Plating Type: Tin
• Standards Met: UL 486
• EU RoHS Indicator: Yes
