Product Description

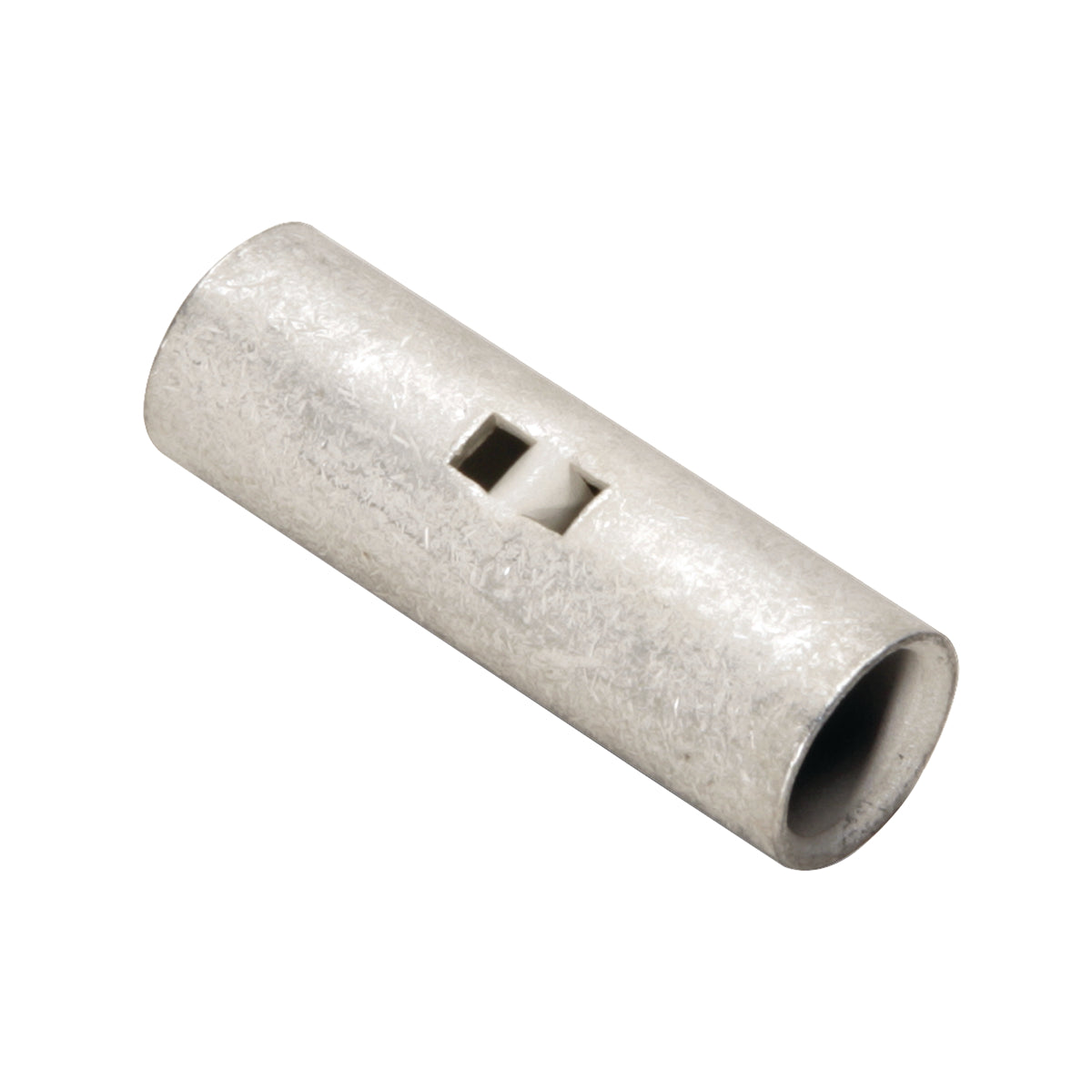

The Hubbell YSV10 is a type YSV uninsulated butt splice designed for solid copper and stranded conductors. It accommodates wire sizes from twelve to ten AWG. This product features a chamfered barrel for easy wire insertion and ensures a reliable connection in electrical applications.
- Used for splicing stranded and solid copper conductors.
- Compatible with various wire sizes, including 12 to 10 AWG.
- Designed for industrial and general-purpose applications.
Product Highlights
The YSV10 butt splice is ideal for heavy-duty electrical connections, offering excellent conductivity and low resistance. It is manufactured from high-quality electrolytic copper to ensure durability.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
MPN: YSV10
Technical Specifications
-
Application: For all heavy duty industrial and general purpose
-
Conductor Size: 12 to 10 AWG
-
Conductor Type: Solid Copper/Stranded
-
Dimensions: 0.13 in ID x 0.21 in OD
-
Finish: Electro-Tin Coated
-
Length: 3/4 in
-
Voltage Rating: 600 VAC to 35 kV
-
Temperature Rating: 90 deg C
-
Standards/Approvals: ARRA Compliant, BAA Compliant, RoHS Compliant, Buy American Act Compliant
