Hubbell YS8C BURNDY COPPER COMP.BUTT SPLICE 8AWG

Product Description

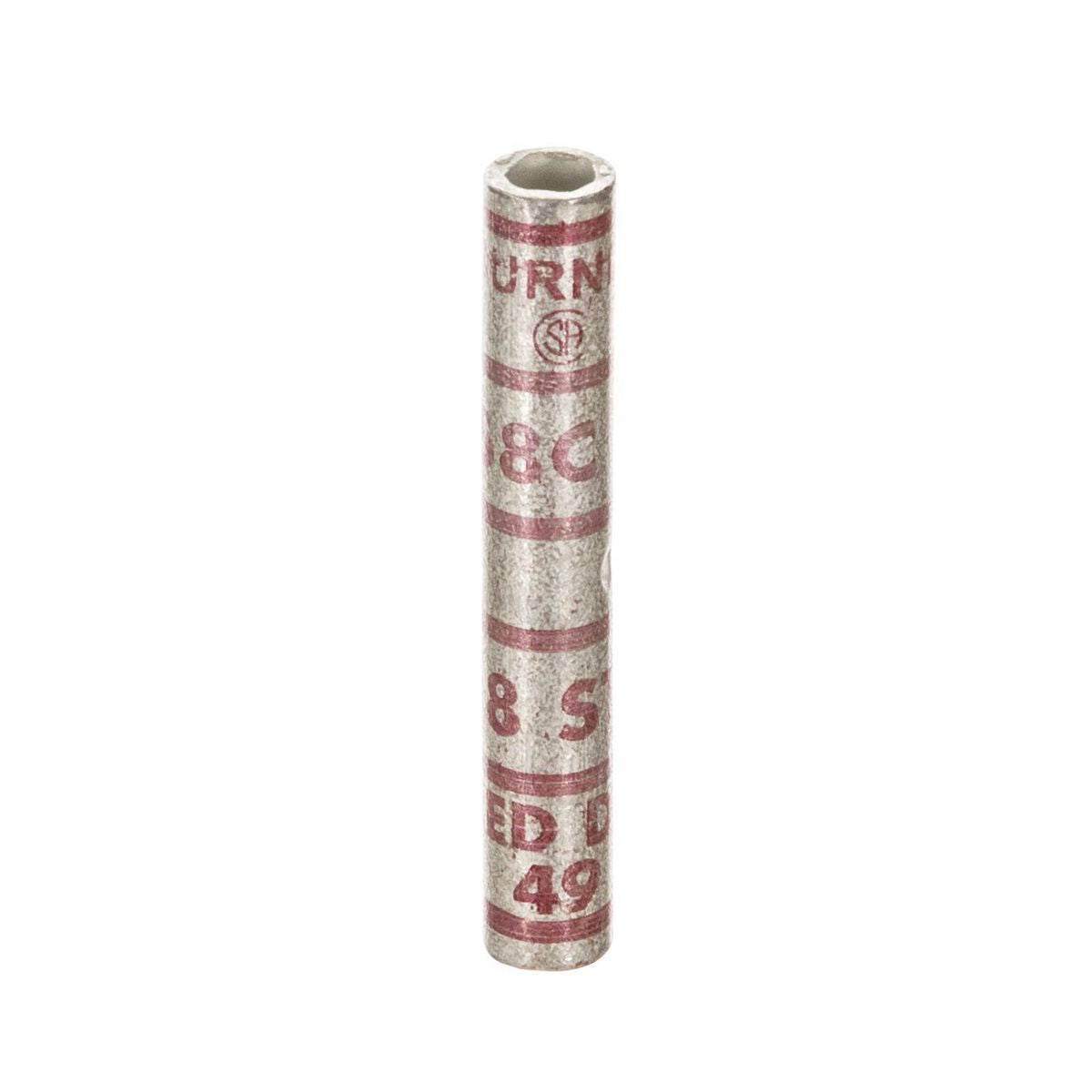

The Hubbell YS8C is a compression butt splice designed for stranded copper conductors with a gauge of eight AWG. This component measures one and three-quarters inches in length and features a long barrel design for secure connections. Rated for voltages from six hundred to thirty-five thousand VAC, this splice is ideal for demanding electrical applications.

• Application: Suitable for heavy-duty tasks, capable of handling high voltage.
• Material: Constructed from copper with a tin plating for enhanced durability.
• Features a chamfered barrel style and a 49 die index for precision crimping.

Product Highlights

The YS8C butt splice provides a solid electrical connection and is compatible with various crimping tools. It delivers a high pull-out force, ensuring longevity and reliability.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181050741

Technical Specifications

• Type: Type YS Long Barrel
• Barrel Size: 0.78 inches
• Color: Red
• Conductor Size: 8 AWG
• Conductor Type: Stranded Copper
• Finish: Tin Plated
• Length: 1-3/4 inches
• Application: For heavy-duty applications and usage at up to 35 kV
• Voltage Rating: 600 to 35000 VAC
• Temperature Rating: 90 degrees C
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 486A-486B
