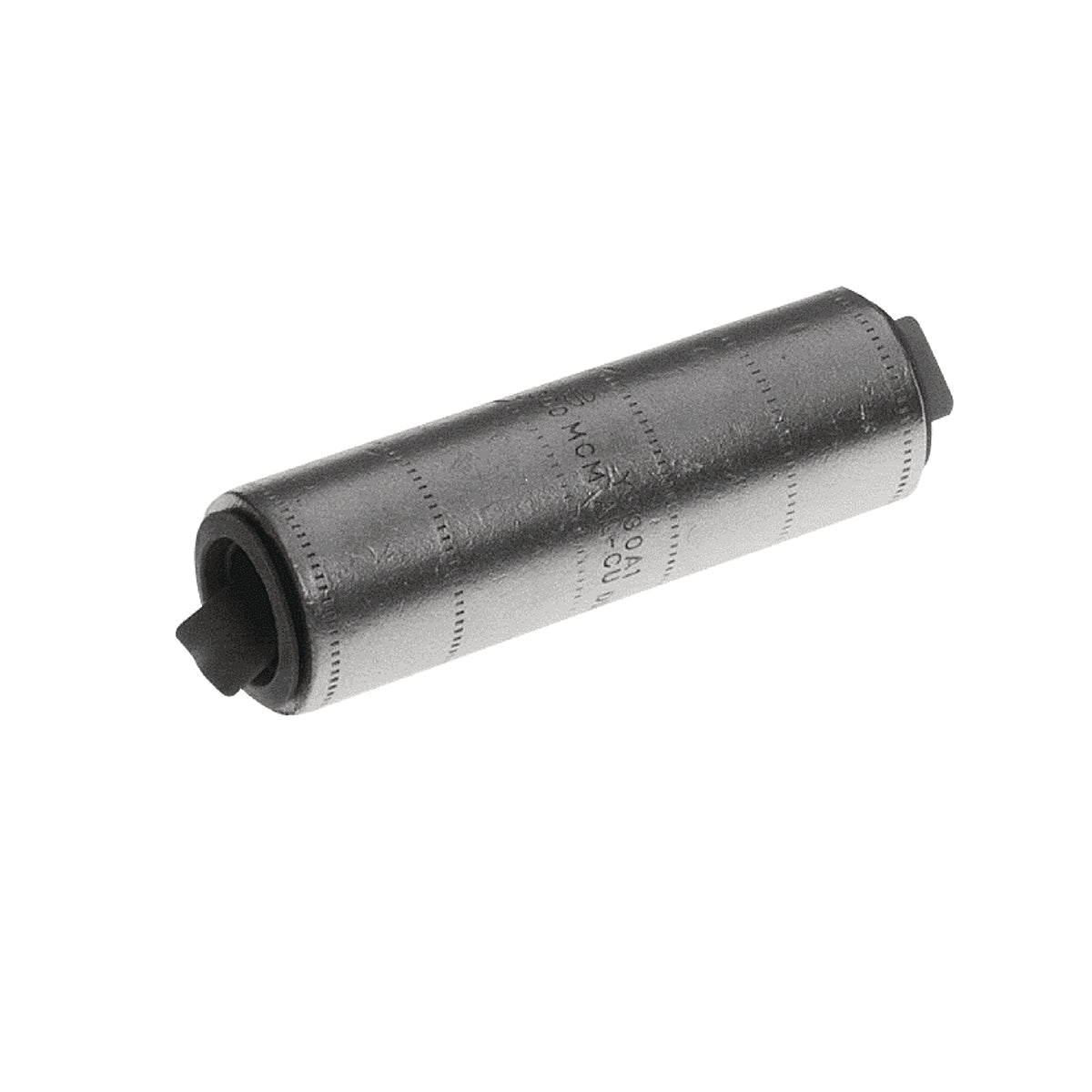

Hubbell YS39A1 YS-A Standard Barrel Compression Butt Splice 750MCM Alum Butt Splice

Product Description

The Hubbell YS39A1 is a compression butt splice designed for copper and stranded aluminum conductors ranging from seven hundred to seven hundred fifty kcmil. The splice measures five point twenty-six inches in length and features a long standard barrel. It is suitable for electrical connections in various wiring applications.

• Compatible with aluminum to aluminum, aluminum to copper, and copper to copper.
• Made from high conductivity aluminum for reliable performance.
• Tin plated to resist corrosion.

Product Highlights

The YS39A1 ensures solid connections in critical electrical applications. It supports high-voltage systems and meets industry standards for safety and performance.

Product Information

Standard Information

• Brand: Hubbell
• Manufacturer Part Number: YS39A1

Technical Specifications

• Application: For use on all combinations of aluminum to aluminum, aluminum to copper, and copper to copper conductor combinations
• Barrel Size: 2-1/2 inches
• Color: Yellow
• Conductor Size: 700 to 750 kcmil
• Conductor Type: Copper/Stranded Aluminum
• Finish: Tin Plated
• Length: 5.26 inches
• Material: Aluminum
• Specifications: 2-7/8 inches L Wire Strip, 936 Die Index
• Temperature Rating: 194 degrees F
• Voltage Rating: 600 to 35000 VAC
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 486A-486B
