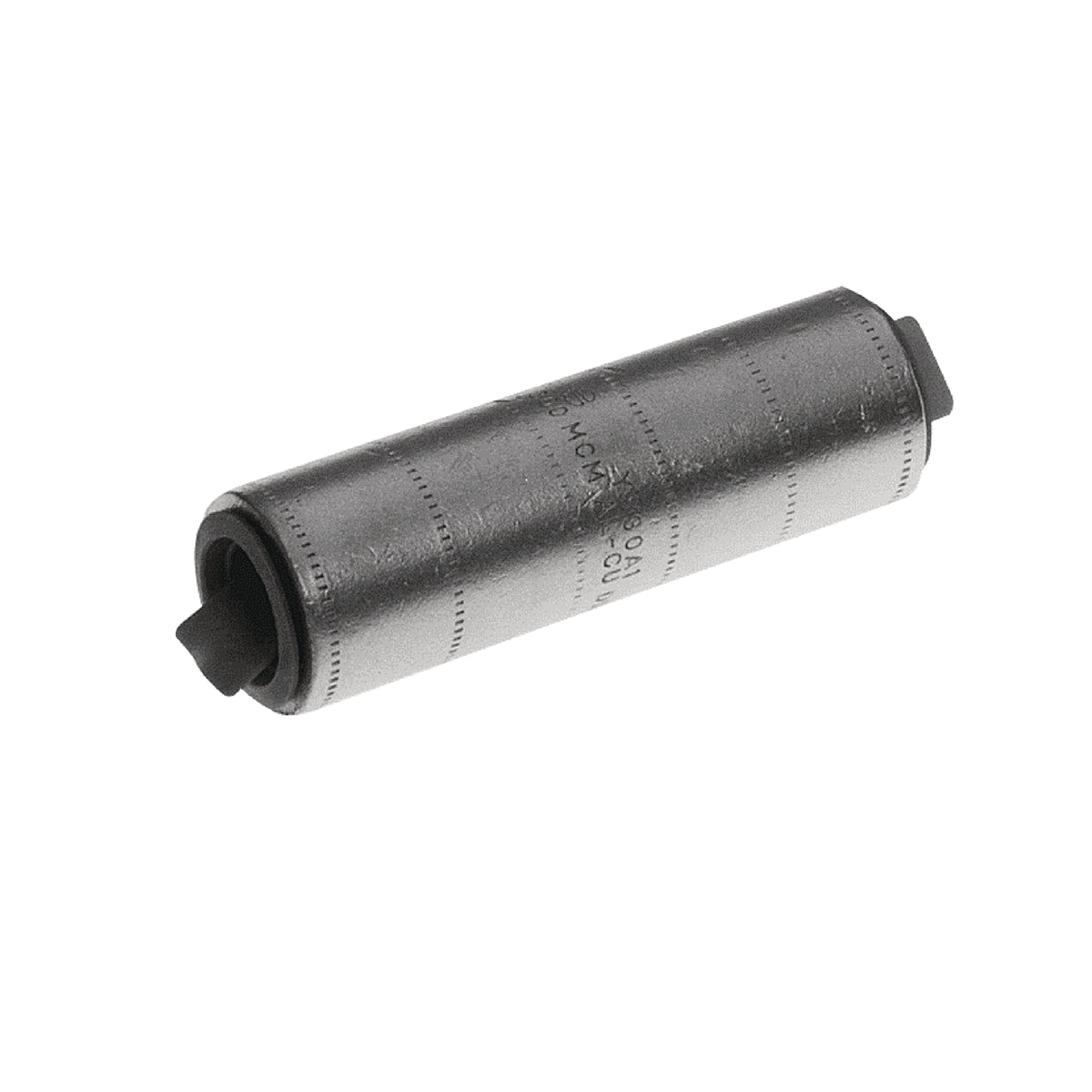

Hubbell YS36A1 BURNDY ALUM.COMP.BUTT SPLICE 600MCM AL/CU

Product Description

The Hubbell YS36A1 is a compression butt splice designed for aluminum and copper conductors. This splice accommodates conductors up to 600 kcmil. The product features a long standard barrel for easy handling and installation. Its length is five point fourteen inches, allowing for effective connections.

• Compatible with aluminum to aluminum and copper to copper connections.
• Constructed from high conductivity aluminum.
• Temperature rated to one hundred ninety-four degrees Fahrenheit.

Product Highlights

This splice is ideal for use in electrical applications, providing reliable connectivity and low resistance.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181075760

Technical Specifications

• Application: For use on all combinations of aluminum to aluminum, aluminum to copper, and copper to copper conductor combinations
• Barrel Size: 2.44 inches
• Conductor Size: 600 kcmil
• Conductor Type: Copper/Stranded Aluminum
• Finish: Tin Plated
• Length: 5.14 inches
• Material: Aluminum
• Voltage Rating: 600 to 35000 VAC
• Temperature Rating: 194 degrees Fahrenheit
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 486A-486B
