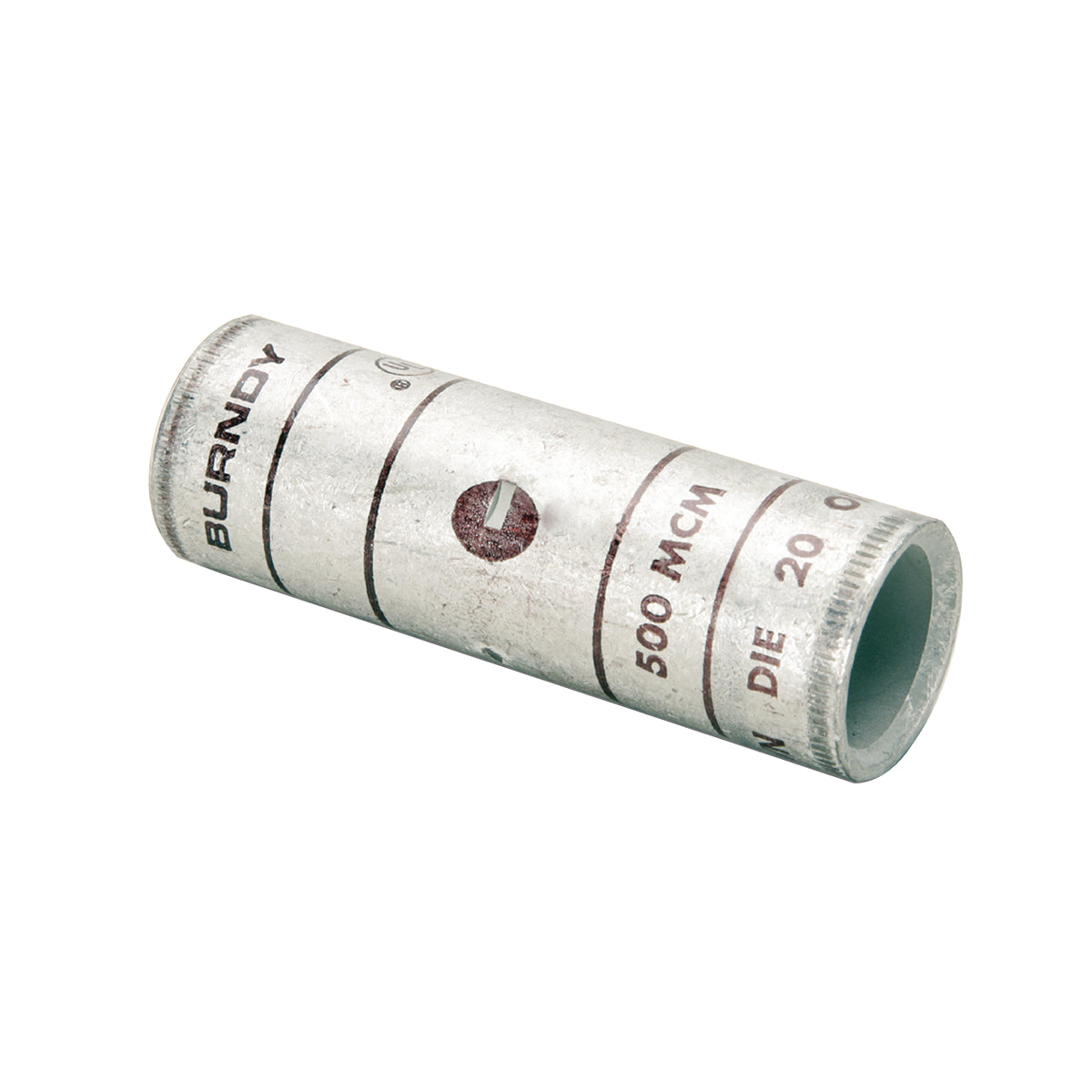

Hubbell YS34L YS-L Standard Barrel Compression Butt Splice 500 MCM

Product Description

The Hubbell YS34L is a compression butt splice designed for electrical applications. This product accommodates stranded copper conductors from four hundred to five hundred kcmil. Its overall length is three point fifteen inches with a standard barrel style. It is built to support voltage ratings between six hundred to thirty-five thousand VAC, making it suitable for high-capacity wiring tasks.

• Designed for limited space applications
• Includes a variety of tools for proper crimping
• Temperature rated up to ninety degrees Celsius

Product Highlights

The YS34L butt splice features a chamfered barrel style for easy insertion and a center wire stop for precise conductor placement.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181050855

Technical Specifications

• Application: For limited space applications
• Barrel Size: 1.38 inches
• Conductor Size: 4/0 AWG to 500 kcmil
• Conductor Type: Stranded Copper
• Finish: Tin Plated
• Length: 3.15 inches
• Temperature Rating: 90 degrees Celsius
• Voltage Rating: 600 to 35000 VAC
