Hubbell YS34A1 BURNDY ALUM.COMP.BUTT SPLICE 500MCM AL/CU

Product Description

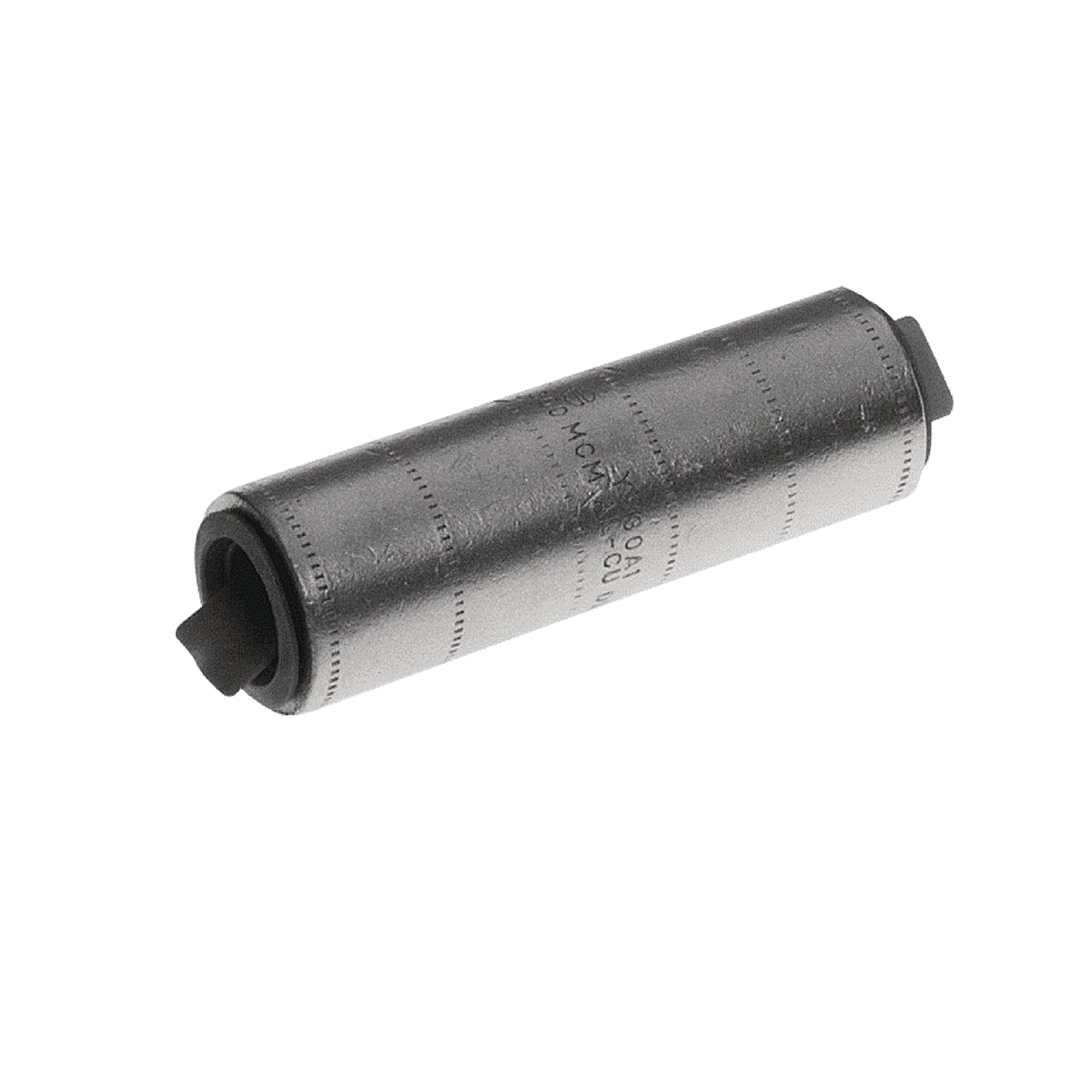

Hubbell YS34A1 is a compression butt splice designed for copper and stranded aluminum conductors. This product accommodates conductor sizes up to five hundred kcmil. It is constructed from high conductivity aluminum and finished with a tin plating for corrosion resistance.

• Type YS-A standard barrel for reliable connections.
• Operates in voltage ratings between six hundred and thirty-five thousand volts alternating current.
• Internally beveled barrel to ensure easy cable entry.

Product Highlights

This butt splice provides low resistance and excellent ductility, making it ideal for various electrical applications. The design ensures compatibility with multiple conductor types and simplifies the crimping process.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181075755

Technical Specifications

• Application: Suitable for aluminum to aluminum, aluminum to copper, and copper to copper connections
• Barrel Size: 2.38 inches
• Conductor Size: 500 kcmil
• Length: 5 inches
• Material: Aluminum
• Voltage Rating: 600 to 35000 VAC
• Temperature Rating: 194 degrees Fahrenheit
