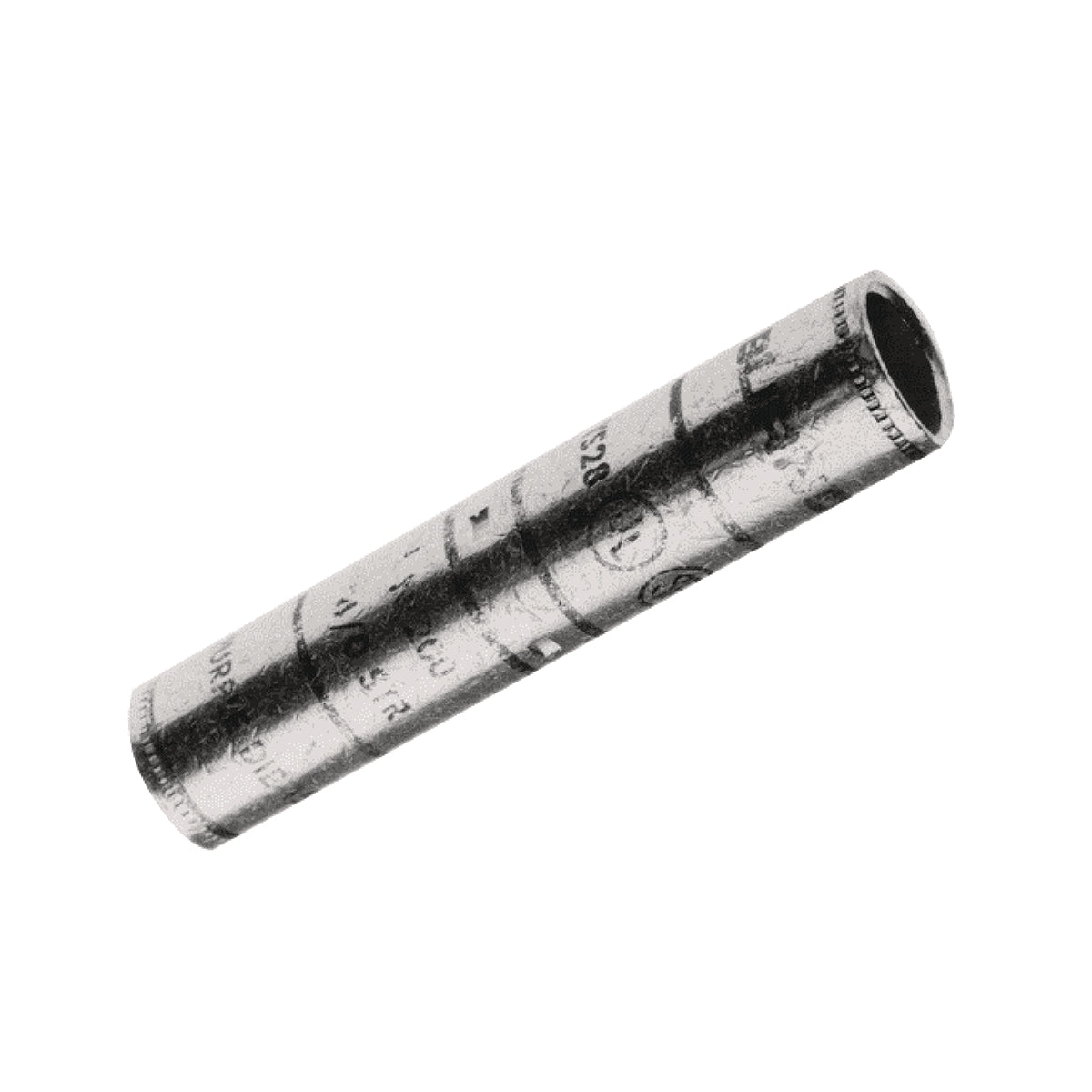

Hubbell YS34 BURNDY CU BUTT SPLICE 500MCM FOR COPPER CABLE ONLY

Product Description

The Hubbell YS34 is a BURNDY HYLINK Compression Butt Splice designed for copper cable. This splice accommodates conductor sizes of five hundred kcmil and features a long barrel design. The length of the splice is four point nine one inches. It is suitable for applications ranging from six hundred to thirty-five thousand VAC. The YS34 provides mechanical and electrical security through its robust construction.

• Use for heavy-duty applications, rated for voltages up to thirty-five kV.
• Includes components for effective installation.
• Designed for stranded copper conductors.

Product Highlights

The YS34 offers a high pull-out force, ensuring a secure connection for electrical conductors. The design includes four center conductor stops to assist in proper installation.

Product Information

Standard Information

• Manufacturer: Hubbell
• Model Number: YS34

Technical Specifications

• Application: For heavy-duty applications and used at higher voltages up to thirty-five kV
• Barrel Size: Two point two inches
• Color: Brown
• Conductor Size: Five hundred kcmil
• Conductor Type: Stranded Copper
• Finish: Tin Plated
• Length: Four point nine one inches
• Material: Copper
• Voltage Rating: Six hundred to thirty-five thousand VAC
• Temperature Rating: Ninety degrees Celsius
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant
