Hubbell YS31A1 BUR ALUM COMP BUTT SPLICE 350MCM AL/CU

Product Description

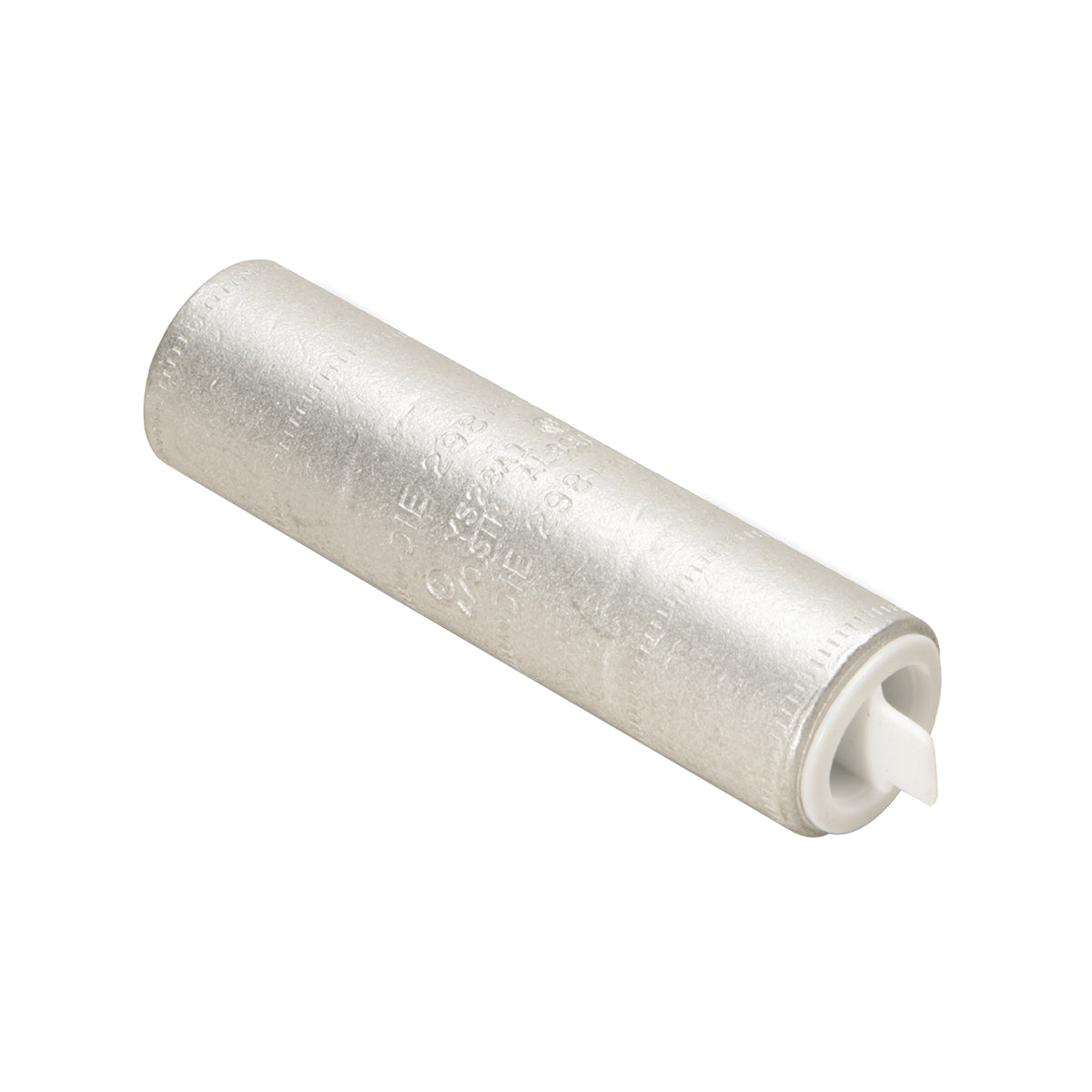

The Hubbell YS31A1 is a BURNDY HYLINK Compression Butt Splice designed for copper and aluminum connections. This splice is suitable for use with conductors rated up to 350 kcmil and measures four point zero four inches in length. It features a standard barrel design and is built to handle voltages ranging from six hundred to thirty-five thousand VAC. The aluminum construction ensures high conductivity and low resistance.

• Suitable for aluminum to aluminum and copper to copper connections
• Internally beveled barrel for easy cable entry
• Tin plated finish for corrosion resistance

Product Highlights

This product is engineered for high-performance electrical connections and offers excellent crimping properties. It incorporates a pre-filled PENETROX oxide inhibiting compound, ensuring a reliable and lasting connection.

Product Information

Standard Information

• Manufacturer: Hubbell
• Material: Aluminum

Technical Specifications

• Application: Compatible with aluminum to aluminum, aluminum to copper, and copper to copper conductor combinations
• Barrel Size: 1.89 inches
• Conductor Size: 350 kcmil
• Finish: Tin Plated
• Length: 4.04 inches
• Temperature Rating: 194 deg F
• Voltage Rating: 600 to 35000 VAC
• Standards/Approvals: ARRA Compliant, RoHS Compliant, UL 486A-486B
